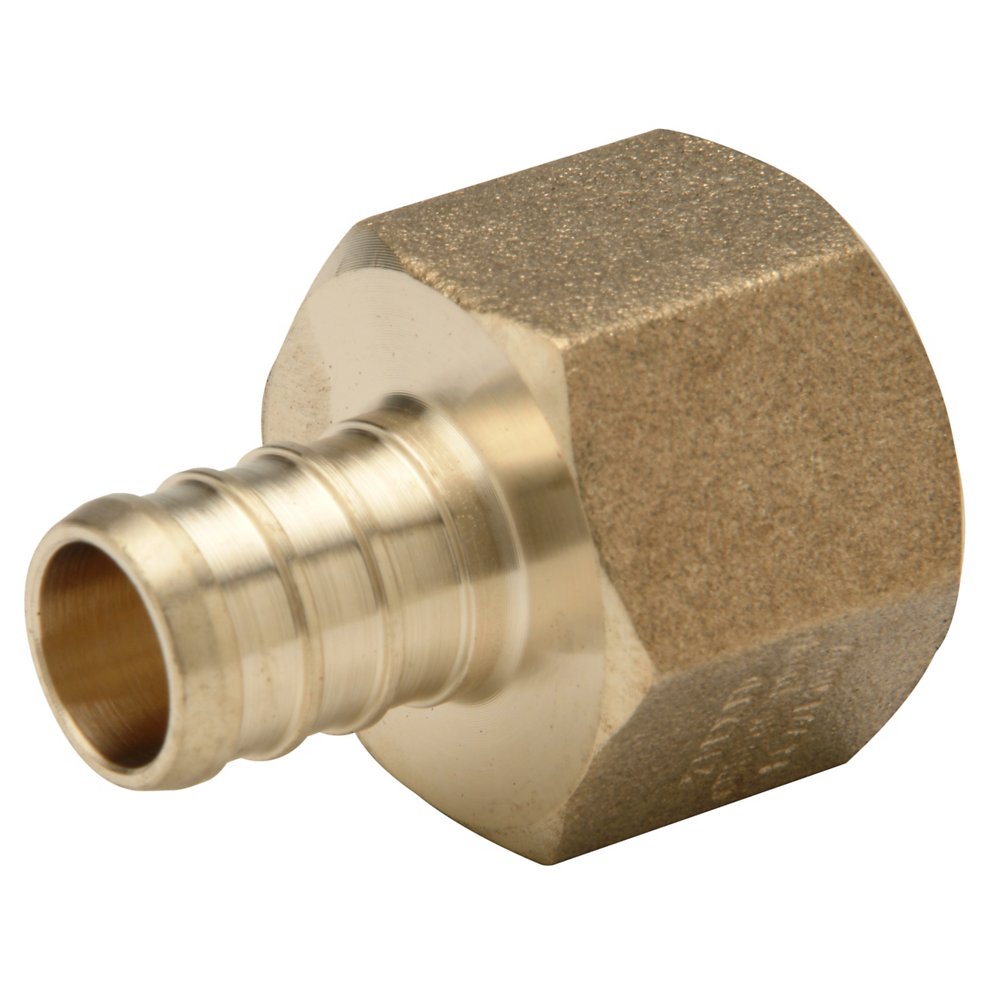

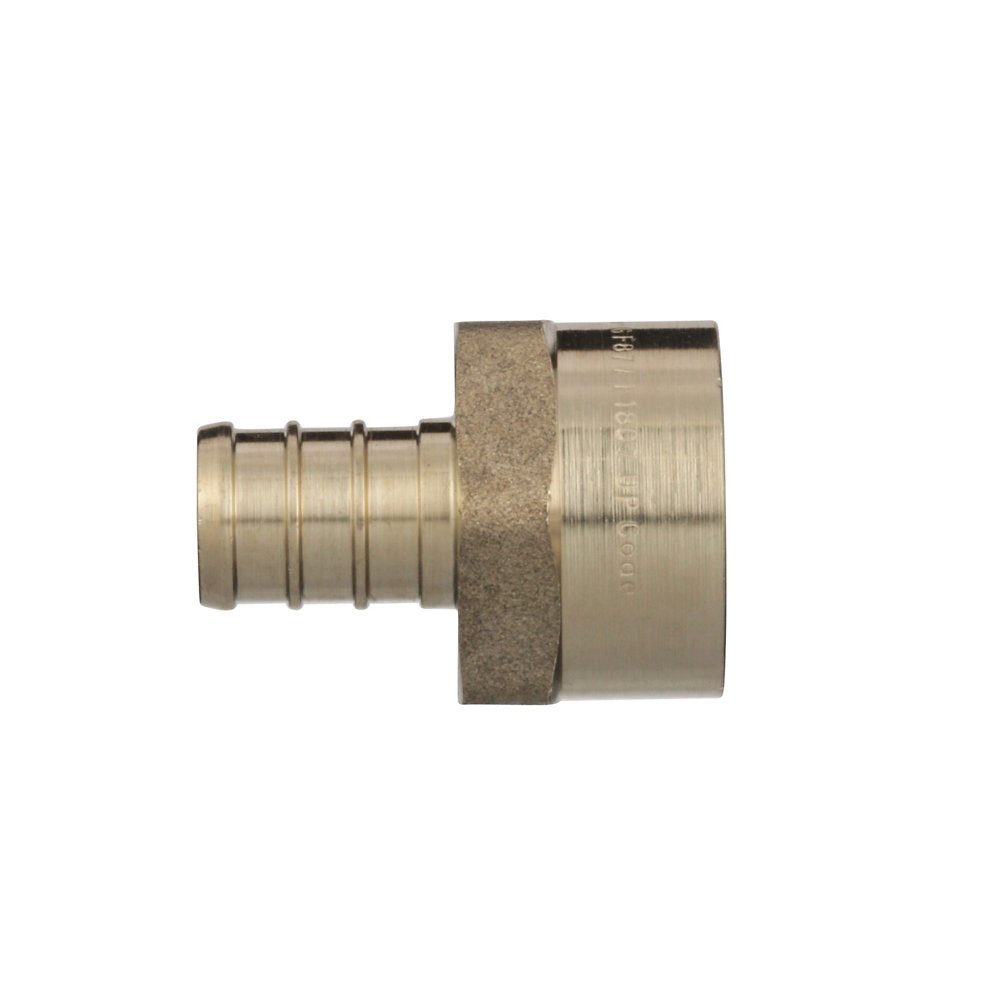

Zurn QQUFC33GX 1/2" Adapter, Brass, Barb

The Zurn QQUFC33GX is a 1/2" brass adapter -- 1/2" Barb x 1/2" FPT Adapter (Non-Swivel). It features a brass body. Rated to 160 psi.

Zurn XL Brass female pipe thread adapters are dependable insert and crimp fittings that are fast, easy, and safe to install.

Features

• Used in PEX hot and cold water plumbing applications
• Easy to Install
• Low-Lead Compliant

Common Questions

Crimp or expansion fitting -- which is this?

This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.

What standards is it listed to?

ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61.

Specifications

• Type: PEX® XL- Brass Barb x FPT Non Swivel Adapter
• Size: 1/2"
• Connection: Barb
• Body Material: Brass
• Max Pressure (psi): 160
• Application: Domestic Water
• MPN: QQUFC33GX
• Certifications: ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61
• Fitting Type: Adapter
• Connection System: PEX Crimp
• Port Configuration: 1/2" Barb x 1/2" FPT Adapter (Non-Swivel)
