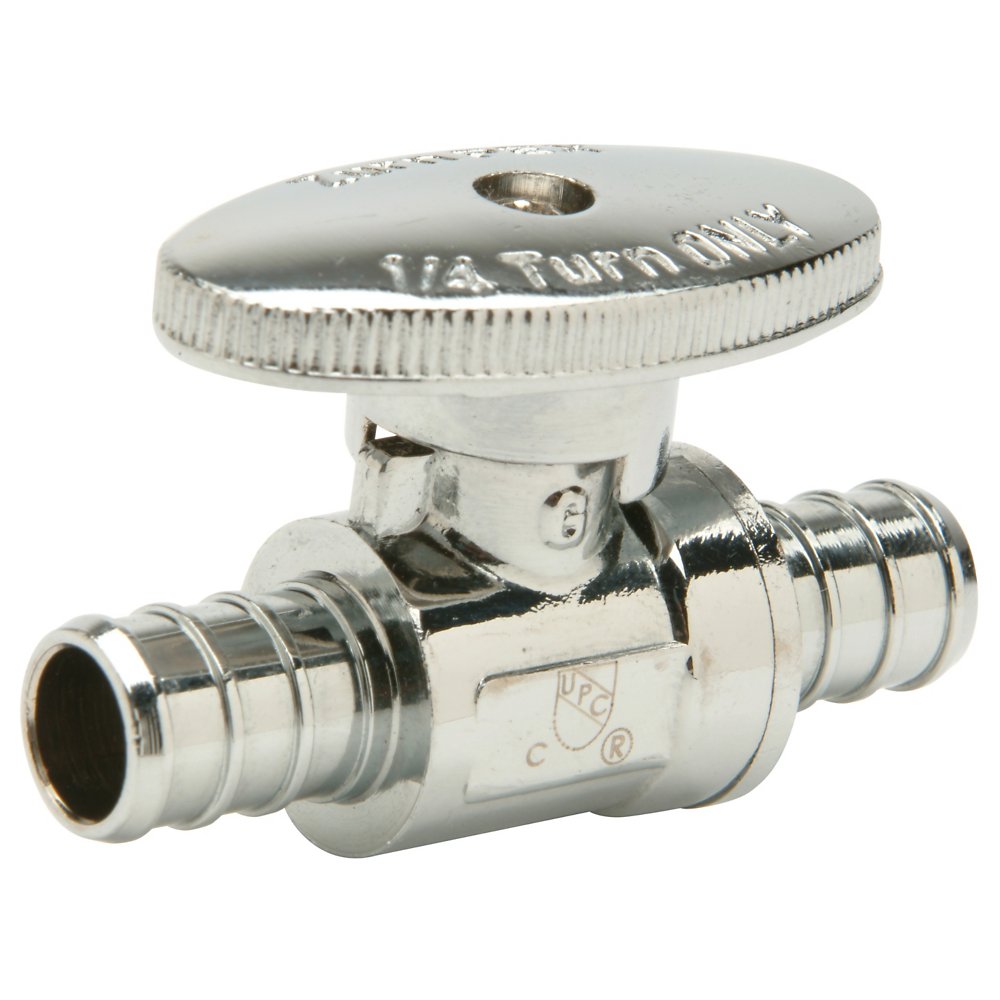

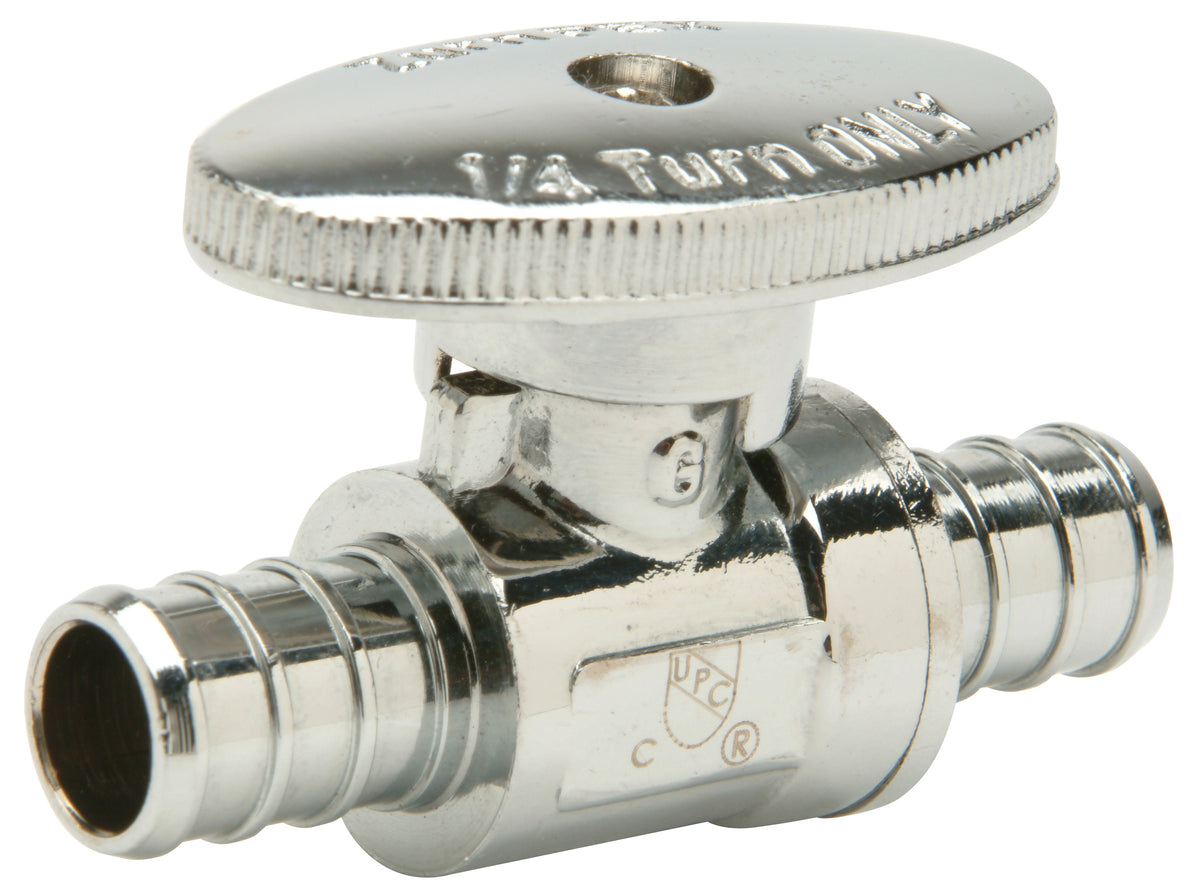

Zurn QQTV60SGX 1/2" Stop Valve, Brass, Compression

The Zurn QQTV60SGX is a 1/2" brass stop valve -- 1/2" Barb x 3/8" OD Compression. It features a brass body. Rated to 160 psi.

Features

• Used in PEX hot and cold water plumbing applications
• Easy turn tee handle
• Low-Lead Compliant
• Quarter turn valve

Common Questions

Crimp or expansion fitting -- which is this?

This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.

What standards is it listed to?

ASTM F1807, CSA-B137.5, NSF-61.

What outlet does this stop have?

A 3/8" OD compression outlet -- the standard North American supply-line size, so an off-the-shelf braided supply connector threads straight on. The inlet side is PEX barb, secured with a crimp ring.

Specifications

• Type: Crimp XL Brass Straight Stop Valve – 1/2" Barb x 3/8" OD Compression, 1/4 Turn, Chrome
• Size: 1/2"
• Outlet Size: 3/8"
• Connection: Compression
• Body Material: Brass
• Max Pressure (psi): 160
• Application: Domestic Water
• MPN: QQTV60SGX
• Certifications: ASTM F1807, CSA-B137.5, NSF-61
• Fitting Type: Stop Valve
• Connection System: PEX Crimp
• Port Configuration: 1/2" Barb x 3/8" OD Compression
• Body Pattern: Straight
• Turn Type: Quarter-Turn
• Inlet Connection: Barb
• Outlet Connection: OD Compression
