Specifications
Description

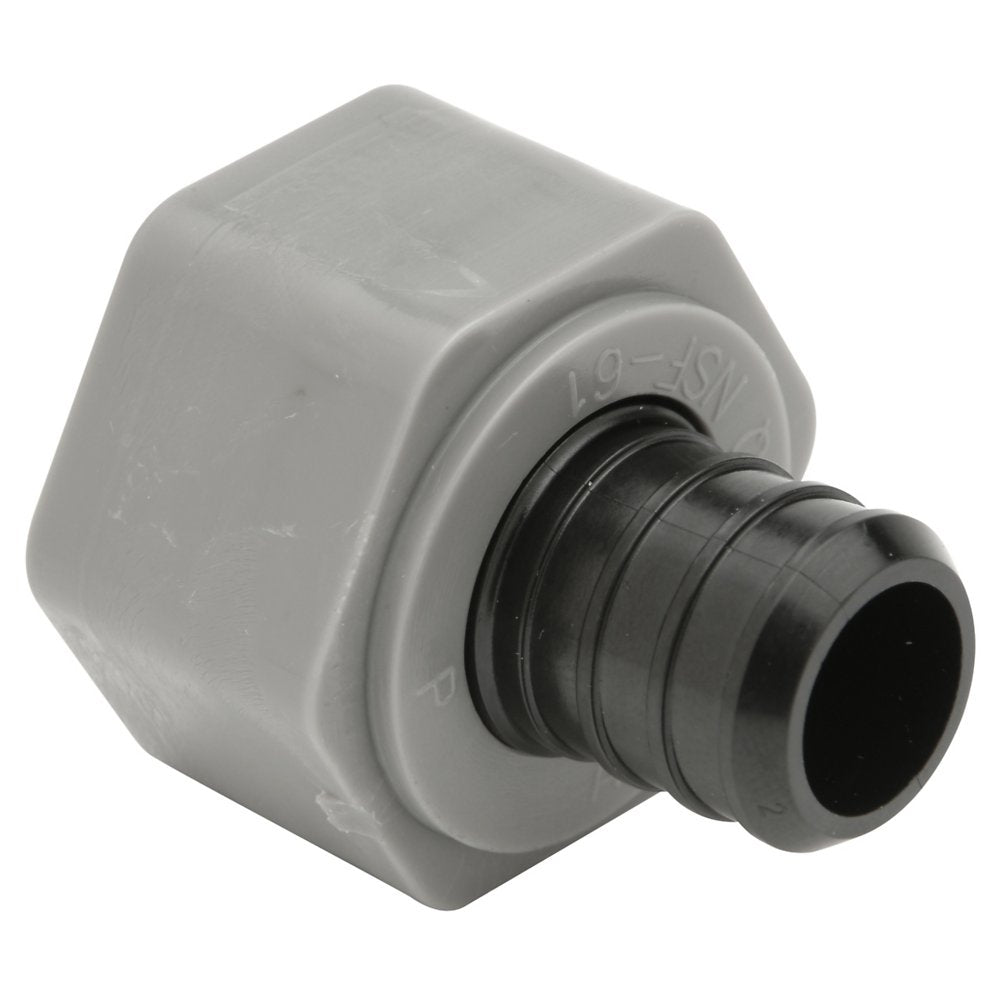

The Zurn QQPSFC33X is a 1/2" lead-free acetal adapter -- 1/2" Barb x 1/2" Female NPT Swivel Adapter. It features a acetal body. Rated to 160 psi. This model is certified lead-free for potable-water installations.
Qick Sert CR® polymer swivel adapters are durable and corrosion resistant, providing an ideal solution for aggressive water environments. Dependable insert and crimp fittings are fast, easy, and safe to install.
Features
- Molded from highly engineered polymers
- Used in hot and cold potable water applications
- Low-Lead Compliant
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a QickSert CR crimp/insert fitting (ASTM F2159): a polymer barb secured with a separate crimp ring or QickClamp, not a cold-expansion fitting. Use the same crimp tool and rings as the brass F1807 line -- the two material families share one crimp system.
- What standards is it listed to?
- ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61.
- Is it lead-free?
- Yes, certified lead-free for potable-water installations.
Specifications
- Type: QickSert CRTM Barb x 1/2" Female Thread Swivel Adapter
- Size: 1/2"
- Connection: Barb
- Body Material: Acetal
- Max Pressure (psi): 160
- Application: Domestic Water
- MPN: QQPSFC33X
- Certifications: ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
- Lead-Free: Yes
- Fitting Type: Adapter
- Connection System: CR-Polymer Crimp
- Port Configuration: 1/2" Barb x 1/2" Female NPT Swivel Adapter
Dimensions
| Size Nominal | 1/2" | End Connection | Barb |
Details
| Series | QQPSFC33X | Device Type | QickSert CRTM Barb x 1/2" Female Thread Swivel Adapter |
| Lead Free | Yes | Body Material | Acetal |
| Application | Domestic Water | Max Pressure PSI | 160.0 psi |
| Configuration | 1/2" Barb x 1/2" Female NPT Swivel Adapter | Connection system | CR-Polymer Crimp |
| Fitting type | Adapter | — | — |
Certifications & Standards
| ASTM F2159 | ASTM F877 |
| CSA-B137.5 | NSF-14 |
| NSF-61 | — |
Compare with similar products
| Series | QQPSFC33X
| QQPMC33X
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | QickSert CRTM Barb x 1/2" Female Thread Swivel Adapter
| Polymer Male Adapter Fittings
|
| Size Nominal | 1/2"
| 1/2"
|
| End Connection | Barb
| Barb
|
| Body Material | Acetal
| Acetal
|
| Application | Domestic Water
| Domestic Water
|
| Max Pressure PSI | 160.0 psi | 160.0 psi |
| Certifications | ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
| ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
|
