Specifications
Description

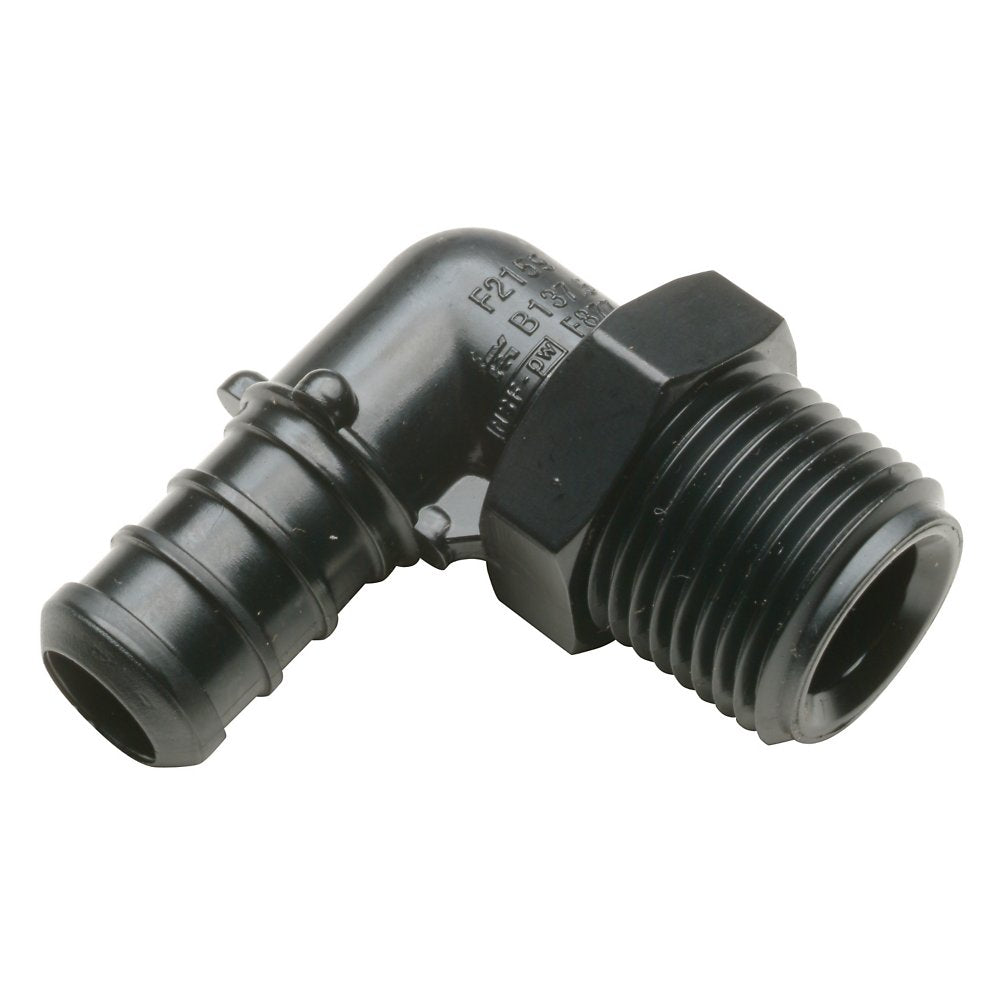

The Zurn QQPE33BTX is a 1/2" lead-free acetal elbow -- 1/2" Barb x 1/2" MPT Elbow. It features a acetal body. Rated to 160 psi. This model is certified lead-free for potable-water installations.
Qick Sert CR® polymer male elbow fittings are durable and corrosion resistant, providing an ideal solution for aggressive water environments. Dependable insert and crimp fittings are fast, easy, and safe to install.
Features
- Molded from highly engineered polymers
- Used in hot and cold potable water applications
- Low-Lead Compliant
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a QickSert CR crimp/insert fitting (ASTM F2159): a polymer barb secured with a separate crimp ring or QickClamp, not a cold-expansion fitting. Use the same crimp tool and rings as the brass F1807 line -- the two material families share one crimp system.
- What standards is it listed to?
- ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61.
- Is it lead-free?
- Yes, certified lead-free for potable-water installations.
Specifications
- Type: QickSert CRTM Barb x MPT Elbow
- Size: 1/2"
- Connection: Barb
- Body Material: Acetal
- Max Pressure (psi): 160
- Application: Domestic Water
- MPN: QQPE33BTX
- Certifications: ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
- Lead-Free: Yes
- Fitting Type: Elbow
- Connection System: CR-Polymer Crimp
- Port Configuration: 1/2" Barb x 1/2" MPT Elbow
Dimensions
| Size Nominal | 1/2" | End Connection | Barb |
Details
| Series | QQPE33BTX | Device Type | QickSert CRTM Barb x MPT Elbow |
| Lead Free | Yes | Body Material | Acetal |
| Application | Domestic Water | Max Pressure PSI | 160.0 psi |
| Configuration | 1/2" Barb x 1/2" MPT Elbow | Connection system | CR-Polymer Crimp |
| Fitting type | Elbow | — | — |
Certifications & Standards
| ASTM F2159 | ASTM F877 |
| CSA-B137.5 | NSF-14 |
| NSF-61 | — |
