Specifications
Description

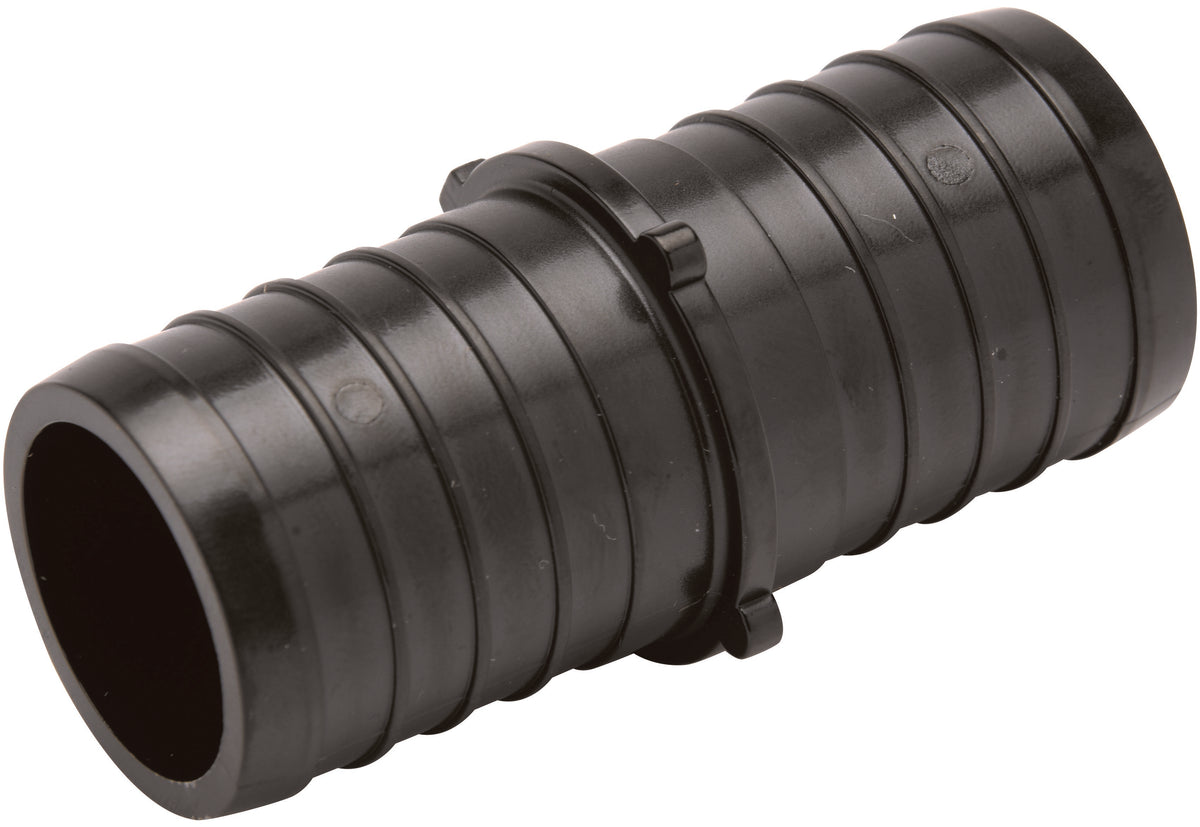

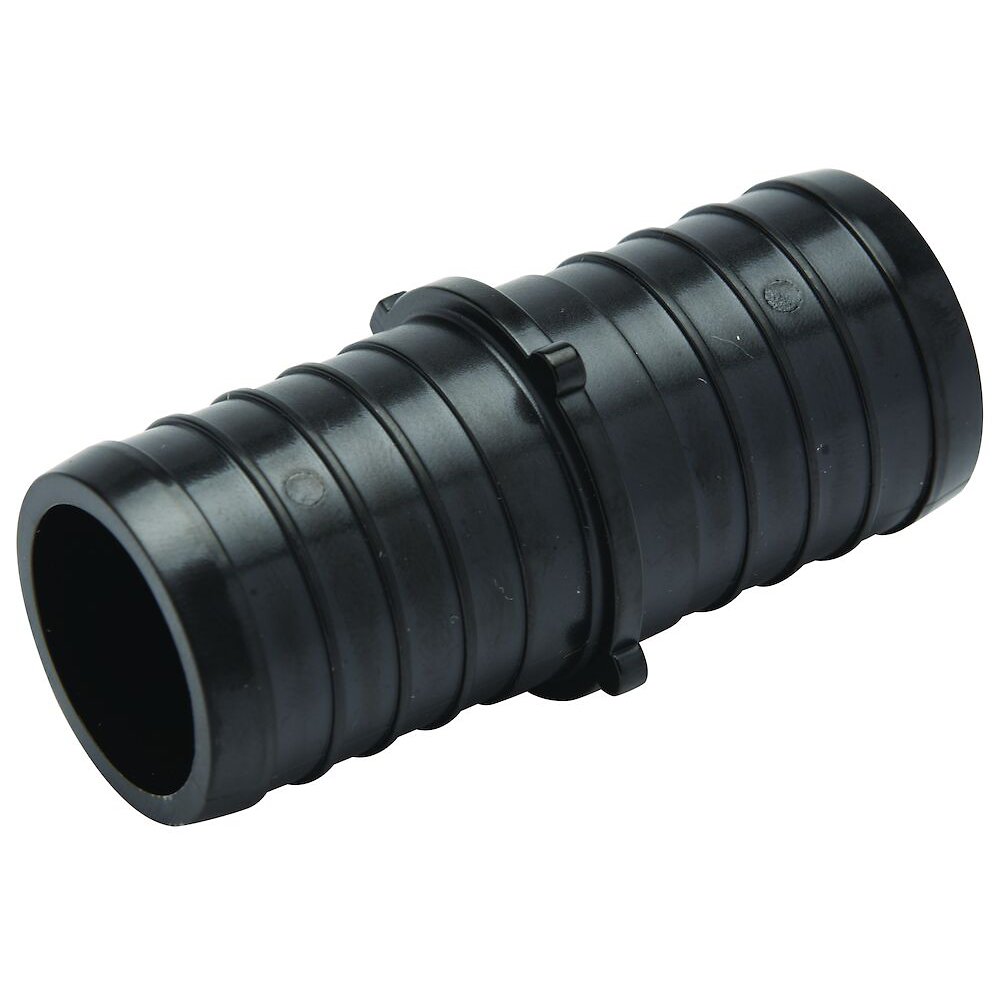

The Zurn QQPC44X is a 3/4" lead-free acetal coupling -- 3/4" Barb x 3/4" Barb Coupling. It features a acetal body. Rated to 160 psi. This model is certified lead-free for potable-water installations.
Qick Sert CR® polymer coupling fittings are durable and corrosion resistant, providing an ideal solution for aggressive water environments. Dependable insert and crimp fittings are fast, easy, and safe to install.
Features
- Durable polymer material provides corrosion and chemical/chlorine resistance, ideal for aggressive water environments
- Dependable insert and crimp fitting system meets ASTM F877 performance requirements
- Zurn crimp system reduces labor and installation time, without the need for soldering, hazardous chemicals, or torch
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a QickSert CR crimp/insert fitting (ASTM F2159): a polymer barb secured with a separate crimp ring or QickClamp, not a cold-expansion fitting. Use the same crimp tool and rings as the brass F1807 line -- the two material families share one crimp system.
- What standards is it listed to?
- ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61.
- Is it lead-free?
- Yes, certified lead-free for potable-water installations.
Specifications
- Type: QickSert CRTM Barb Coupling
- Size: 3/4"
- Connection: Barb
- Body Material: Acetal
- Max Pressure (psi): 160
- MPN: QQPC44X
- Certifications: ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
- Lead-Free: Yes
- Fitting Type: Coupling
- Connection System: CR-Polymer Crimp
- Port Configuration: 3/4" Barb x 3/4" Barb Coupling
Dimensions
| Size Nominal | 3/4" | End Connection | Barb |
Details
| Series | QQPC44X | Device Type | QickSert CRTM Barb Coupling |
| Lead Free | Yes | Body Material | Acetal |
| Max Pressure PSI | 160.0 psi | Configuration | 3/4" Barb x 3/4" Barb Coupling |
| Connection system | CR-Polymer Crimp | Fitting type | Coupling |
Certifications & Standards
| ASTM F2159 | ASTM F877 |
| CSA-B137.5 | NSF-14 |
| NSF-61 | — |
