Specifications
Description

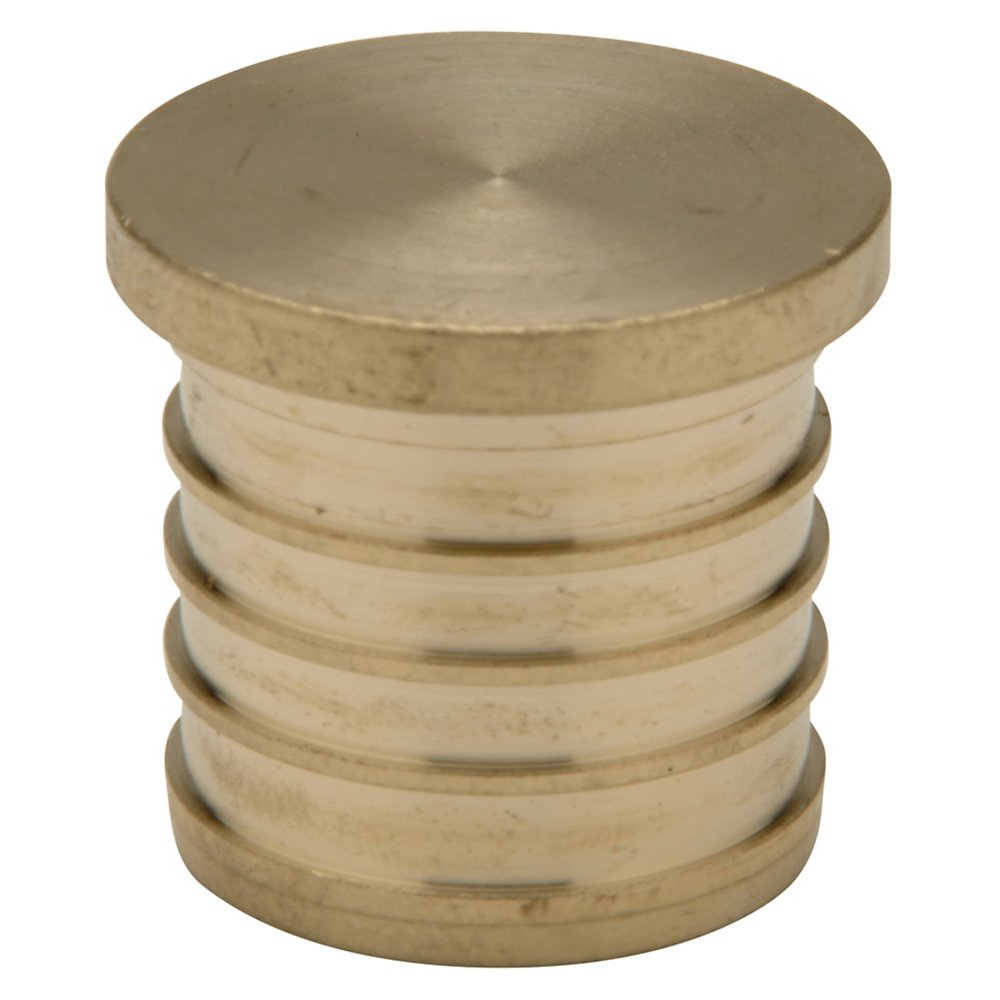

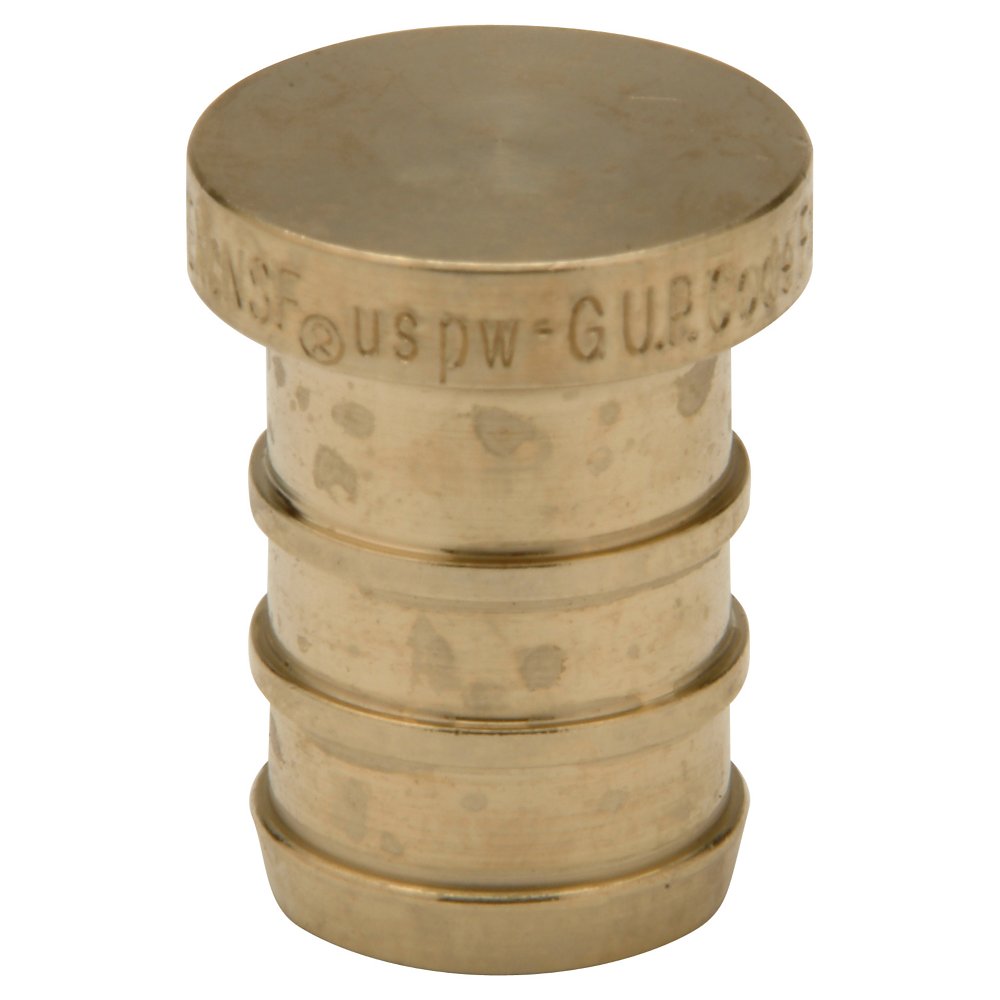

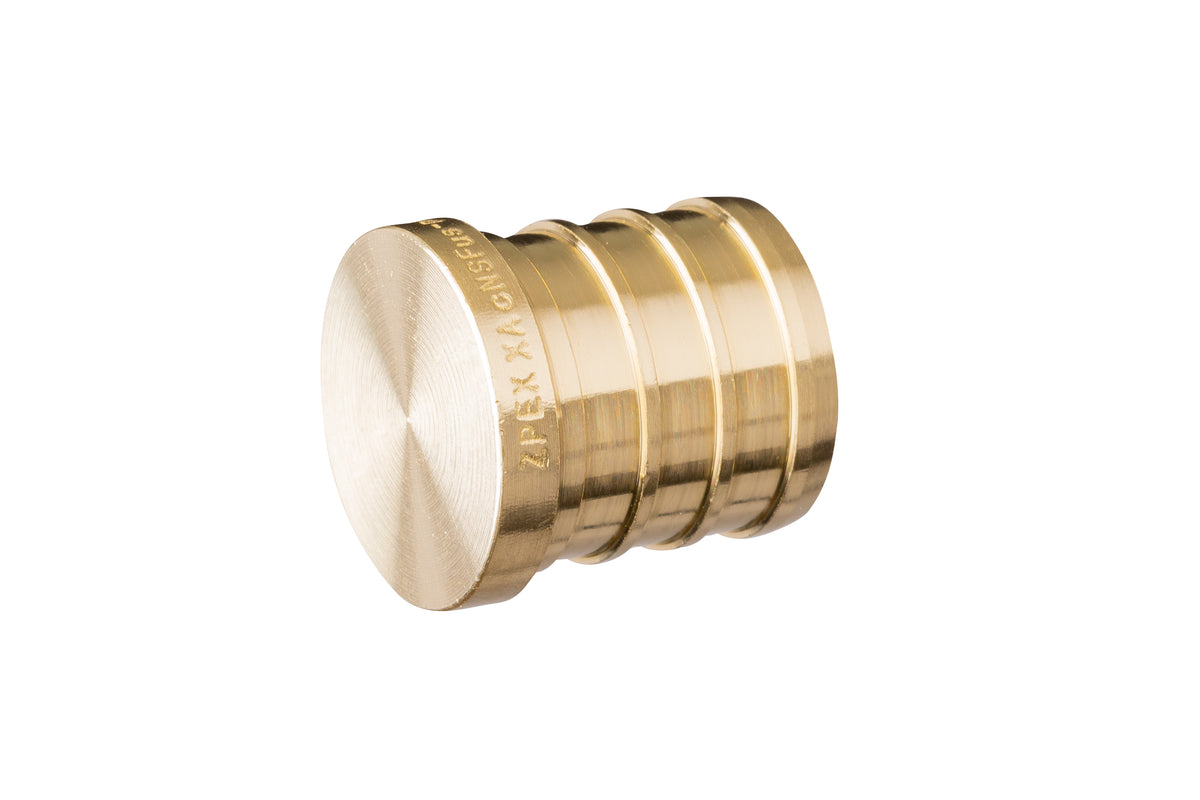

The Zurn QQP4GX is a 3/4" brass plug -- 3/4" PEX Barb Plug. It features a brass body. Rated to 160 psi.
Zurn PEX® XL-Low Lead Brass Plug. The QQP_GX allows for pressure testing of the system or a permanent stop. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 PSI at 73°F , 100 PSI at 180°F , and 80 PSI at 200°F. These fit- tings are listed by NSF as complying with the following standards: NSF/ANSI Standard 14, NSF/ANSI Standard 61 including Annex G, ASTM F877, CSA B137.5, and ASTM F1807.
Features
- Used in PEX hot and cold water plumbing applications
- Easy to Install
- Low-Lead Compliant
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.
- What standards is it listed to?
- ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61.
Specifications
- Type: PEX® XL-Brass Plugs
- Size: 3/4"
- Connection: Barb
- Body Material: Brass
- Max Pressure (psi): 160
- Application: Domestic Water
- MPN: QQP4GX
- Certifications: ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61
- Fitting Type: Plug
- Connection System: PEX Crimp
- Port Configuration: 3/4" PEX Barb Plug
Dimensions
| Size Nominal | 3/4" | End Connection | Barb |
Details
| Series | QQP4GX | Device Type | PEX® XL-Brass Plugs |
| Body Material | Brass | Application | Domestic Water |
| Max Pressure PSI | 160.0 psi | Configuration | 3/4" PEX Barb Plug |
| Connection system | PEX Crimp | Fitting type | Plug |
Certifications & Standards
| ASTM F1807 | ASTM F877 |
| CSA-B137.5 | NSF-14 |
| NSF-61 | — |
