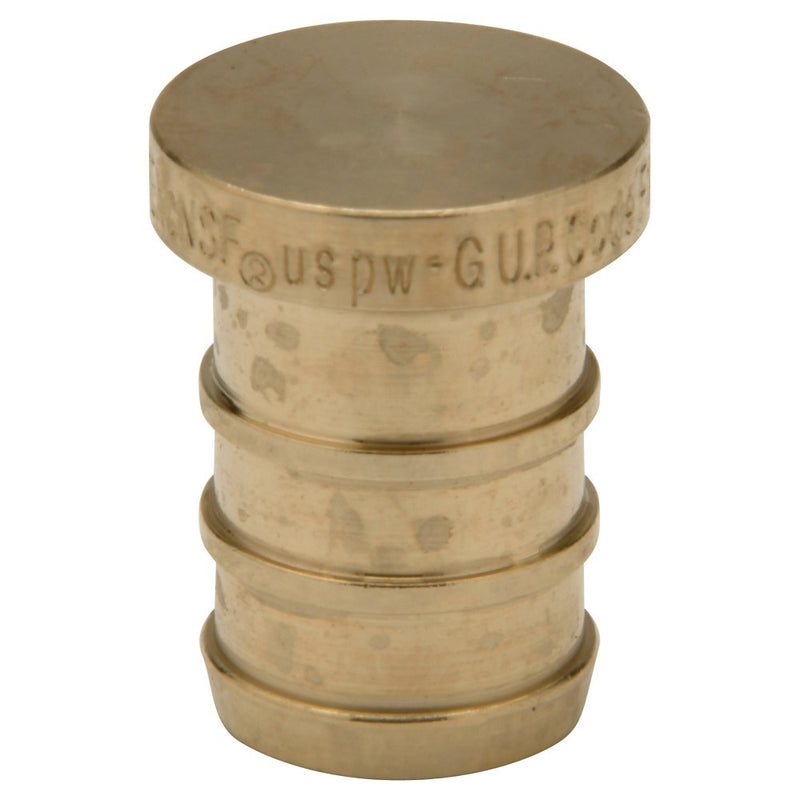

Zurn QQP3GX 1/2" Plug, Brass, Barb

The Zurn QQP3GX is a 1/2" brass plug -- 1/2" PEX Barb Plug. It features a brass body. Rated to 160 psi.

Zurn PEX® XL-Low Lead Brass Plug. The QQP_GX allows for pressure testing of the system or a permanent stop. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 PSI at 73°F , 100 PSI at 180°F , and 80 PSI at 200°F. These fit- tings are listed by NSF as complying with the following standards: NSF/ANSI Standard 14, NSF/ANSI Standard 61 including Annex G, ASTM F877, CSA B137.5, and ASTM F1807.

Features

• Used in PEX hot and cold water plumbing applications
• Easy to Install
• Low-Lead Compliant

Common Questions

Crimp or expansion fitting -- which is this?

This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.

What standards is it listed to?

ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61.

Specifications

• Type: PEX® XL-Brass Plugs
• Size: 1/2"
• Connection: Barb
• Body Material: Brass
• Max Pressure (psi): 160
• Application: Domestic Water
• MPN: QQP3GX
• Certifications: ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61
• Fitting Type: Plug
• Connection System: PEX Crimp
• Port Configuration: 1/2" PEX Barb Plug
