Specifications
Description

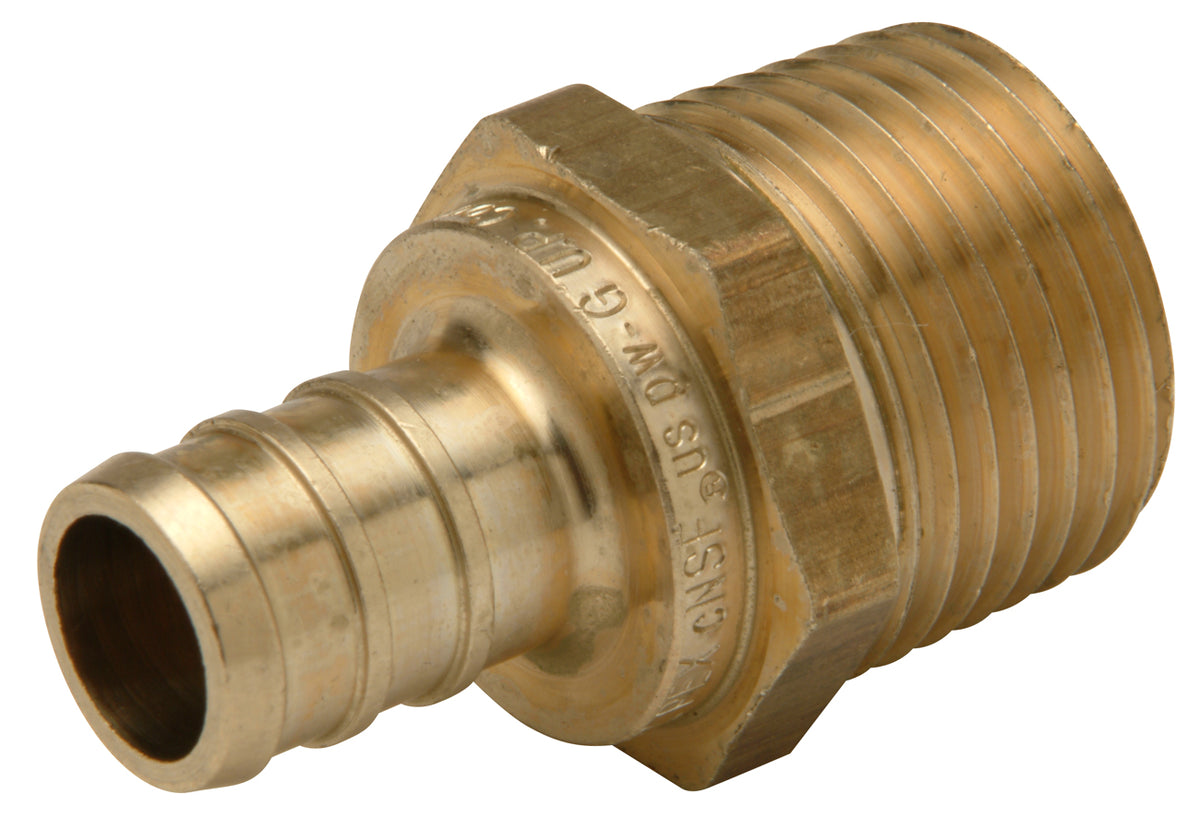

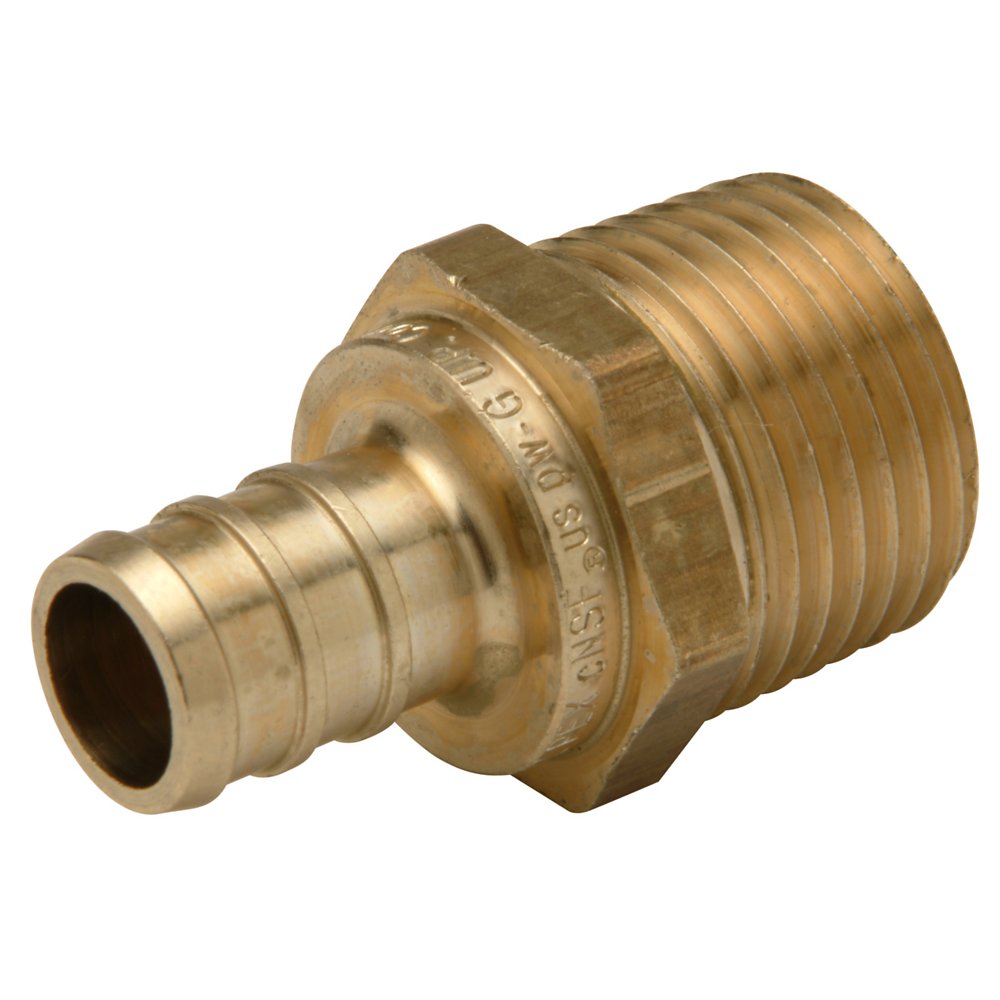

The Zurn QQMC33GX is a 1/2" brass adapter -- 1/2" Barb x 1/2" MPT Adapter. It features a brass body. Rated to 160 psi.
Zurn XL brass male pipe thread adapters are dependable insert and crimp fittings that are fast, easy, and safe to install.
Features
- Used in PEX hot and cold water plumbing applications
- Easy installation
- Low-lead compliant
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.
- What standards is it listed to?
- ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61.
Specifications
- Type: PEX® XL-Brass Barb x MPT Adapter
- Size: 1/2"
- Connection: Barb
- Body Material: Brass
- Max Pressure (psi): 160
- Application: Domestic Water
- MPN: QQMC33GX
- Certifications: ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61
- Fitting Type: Adapter
- Connection System: PEX Crimp
- Port Configuration: 1/2" Barb x 1/2" MPT Adapter
Dimensions
| Size Nominal | 1/2" | End Connection | Barb |
Details
| Series | QQMC33GX | Device Type | PEX® XL-Brass Barb x MPT Adapter |
| Body Material | Brass | Application | Domestic Water |
| Max Pressure PSI | 160.0 psi | Configuration | 1/2" Barb x 1/2" MPT Adapter |
| Connection system | PEX Crimp | Fitting type | Adapter |
Certifications & Standards
| ASTM F1807 | ASTM F877 |
| CSA-B137.5 | NSF-14 |
| NSF-61 | — |
Compare with similar products
| Series | QQMC33GX
| QQPMC33X
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | PEX® XL-Brass Barb x MPT Adapter
| Polymer Male Adapter Fittings
|
| Size Nominal | 1/2"
| 1/2"
|
| End Connection | Barb
| Barb
|
| Body Material | Brass
| Acetal
|
| Application | Domestic Water
| Domestic Water
|
| Max Pressure PSI | 160.0 psi | 160.0 psi |
| Certifications | ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61
| ASTM F2159, ASTM F877, CSA-B137.5, NSF-14, NSF-61
|
