Specifications
Description

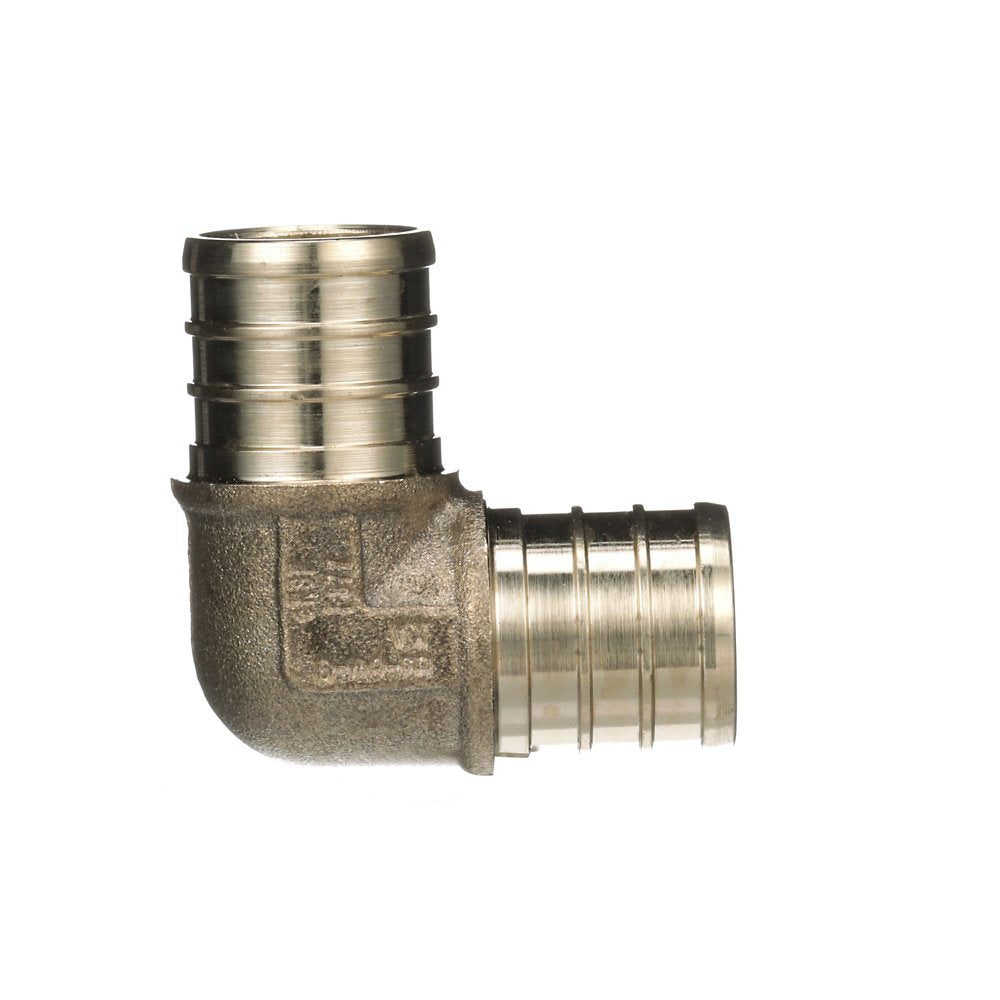

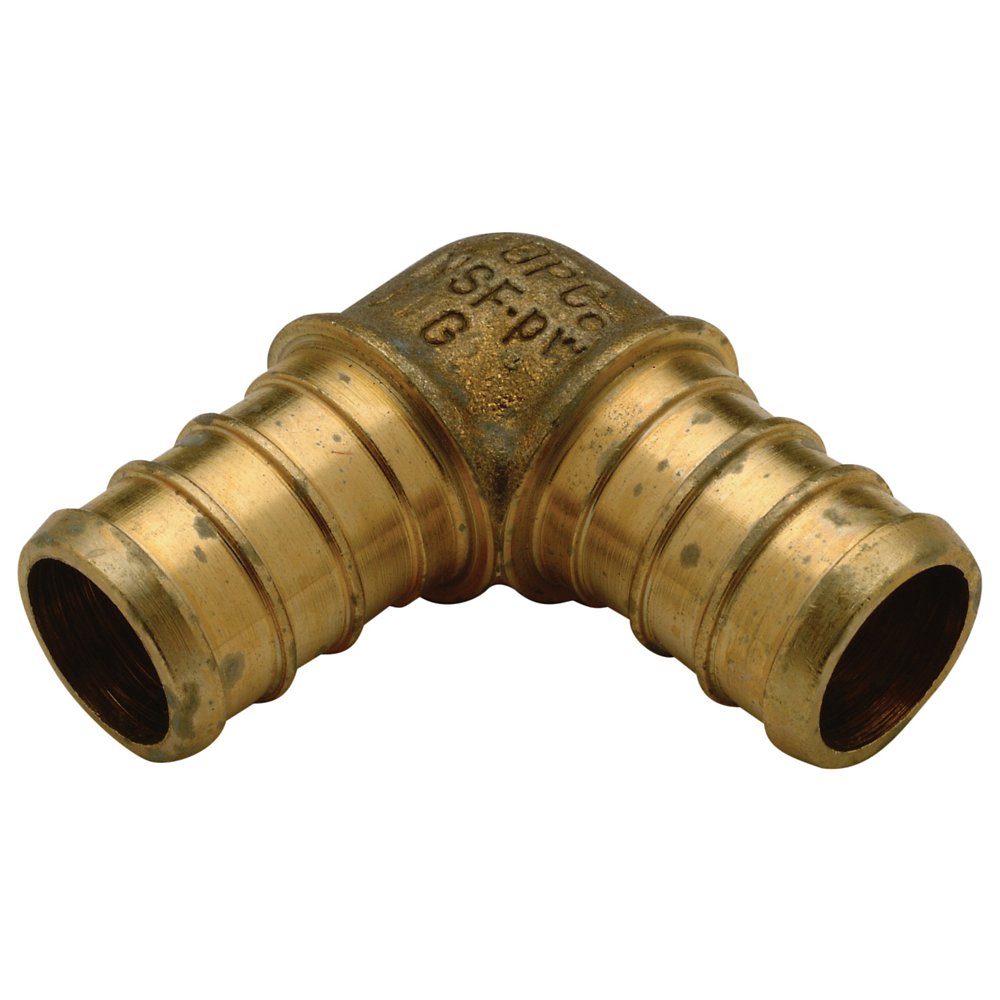

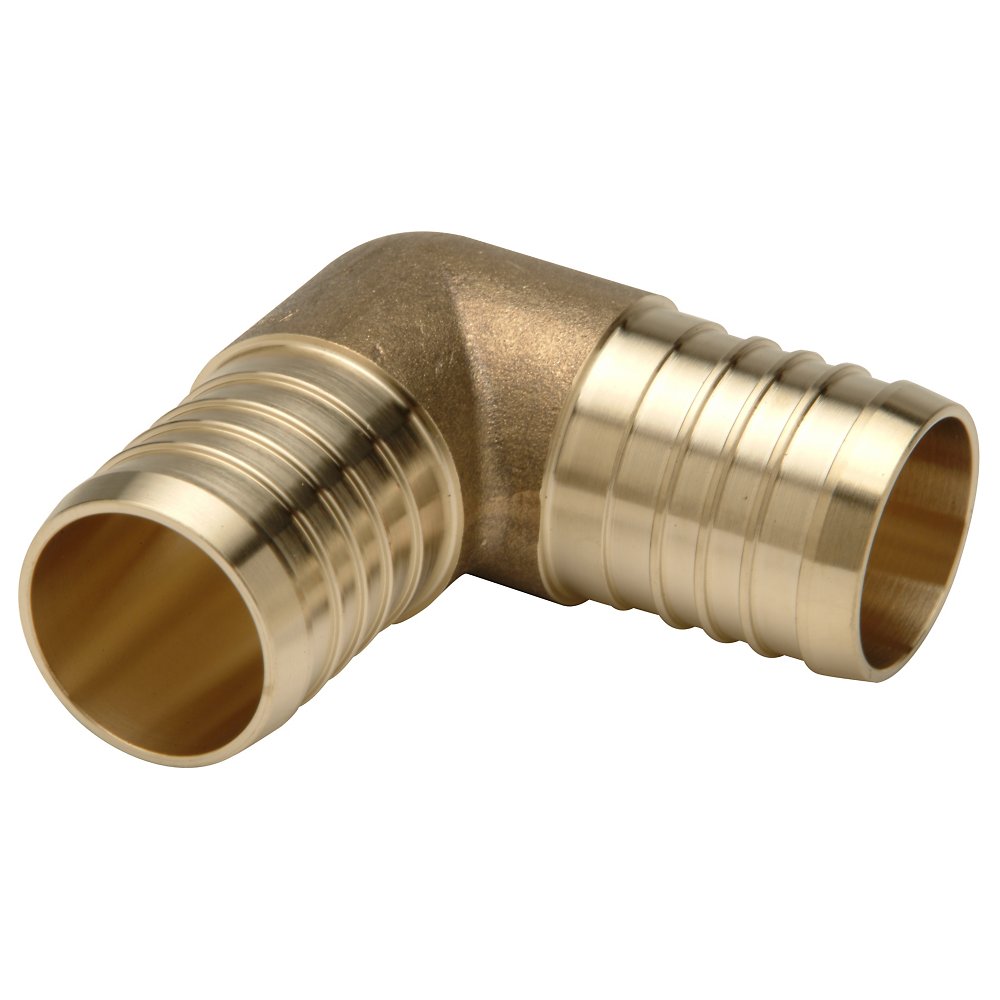

The Zurn QQE43GX is a 3/4" lead-free brass elbow -- 3/4" Barb x 1/2" Barb Elbow. It features a brass body. Rated to 160 psi. This model is certified lead-free for potable-water installations.
Features
- Used in PEX hot and cold water plumbing applications
- Easy installation
- Low-lead compliant
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.
- What standards is it listed to?
- ASTM F1807, ASTM F877, CSA-B137.5, NSF-61.
- Is it lead-free?
- Yes, certified lead-free for potable-water installations.
- Is this a reducing fitting?
- Yes -- the ports are 3/4" Barb x 1/2" Barb Elbow. Match this against the run before ordering; a reducing fitting cannot be swapped for a same-size part.
Specifications
- Type: PEX® XL-Brass Barb Elbow
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 1/2"
- Connection: Barb
- Body Material: Brass
- Max Pressure (psi): 160
- Application: Domestic Water
- MPN: QQE43GX
- Certifications: ASTM F1807, ASTM F877, CSA-B137.5, NSF-61
- Lead-Free: Yes
- Fitting Type: Elbow
- Connection System: PEX Crimp
- Port Configuration: 3/4" Barb x 1/2" Barb Elbow
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 1/2" | End Connection | Barb |
Details
| Series | QQE43GX | Device Type | PEX® XL-Brass Barb Elbow |
| Lead Free | Yes | Body Material | Brass |
| Application | Domestic Water | Max Pressure PSI | 160.0 psi |
| Configuration | 3/4" Barb x 1/2" Barb Elbow | Connection system | PEX Crimp |
| Fitting type | Elbow | — | — |
Certifications & Standards
| ASTM F1807 | ASTM F877 |
| CSA-B137.5 | NSF-61 |
