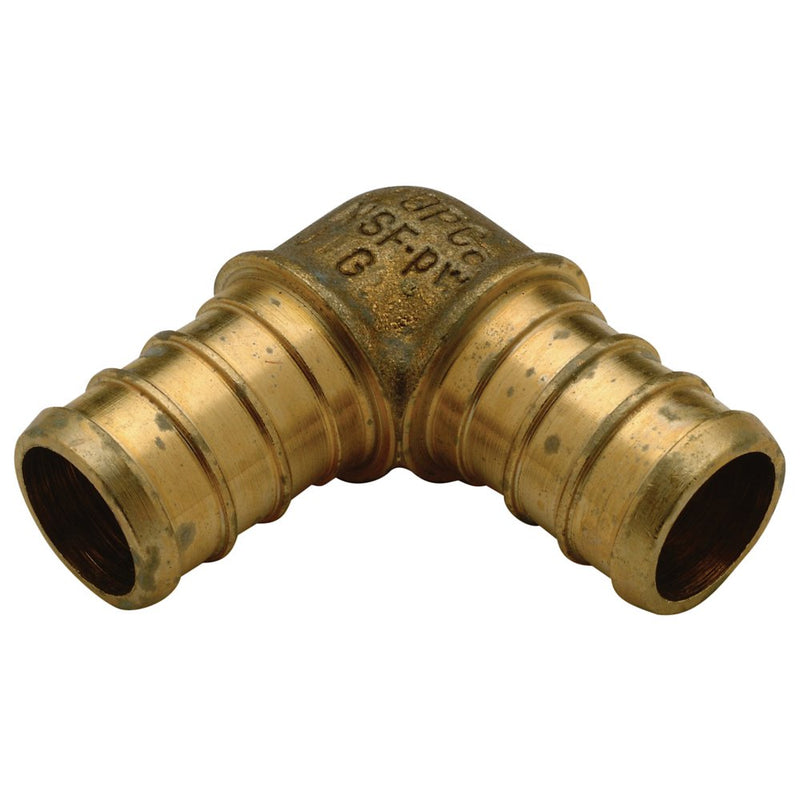

The Zurn QQE33GX is a 1/2" lead-free brass elbow -- 1/2" Barb x 1/2" Barb Elbow. It features a brass body. Rated to 160 psi. This model is certified lead-free for potable-water installations.
Features
- Used in PEX hot and cold water plumbing applications
- Easy installation
- Low-lead compliant
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.
- What standards is it listed to?
- ASTM F1807, ASTM F877, CSA-B137.5, NSF-61.
- Is it lead-free?
- Yes, certified lead-free for potable-water installations.
Specifications
-
Type: PEX® XL-Brass Barb Elbow
-
Size: 1/2"
-
Connection: Barb
-
Body Material: Brass
-
Max Pressure (psi): 160
-
Application: Domestic Water
-
MPN: QQE33GX
-
Certifications: ASTM F1807, ASTM F877, CSA-B137.5, NSF-61
-
Lead-Free: Yes
-
Fitting Type: Elbow
-
Connection System: PEX Crimp
-
Port Configuration: 1/2" Barb x 1/2" Barb Elbow
