Specifications
Description

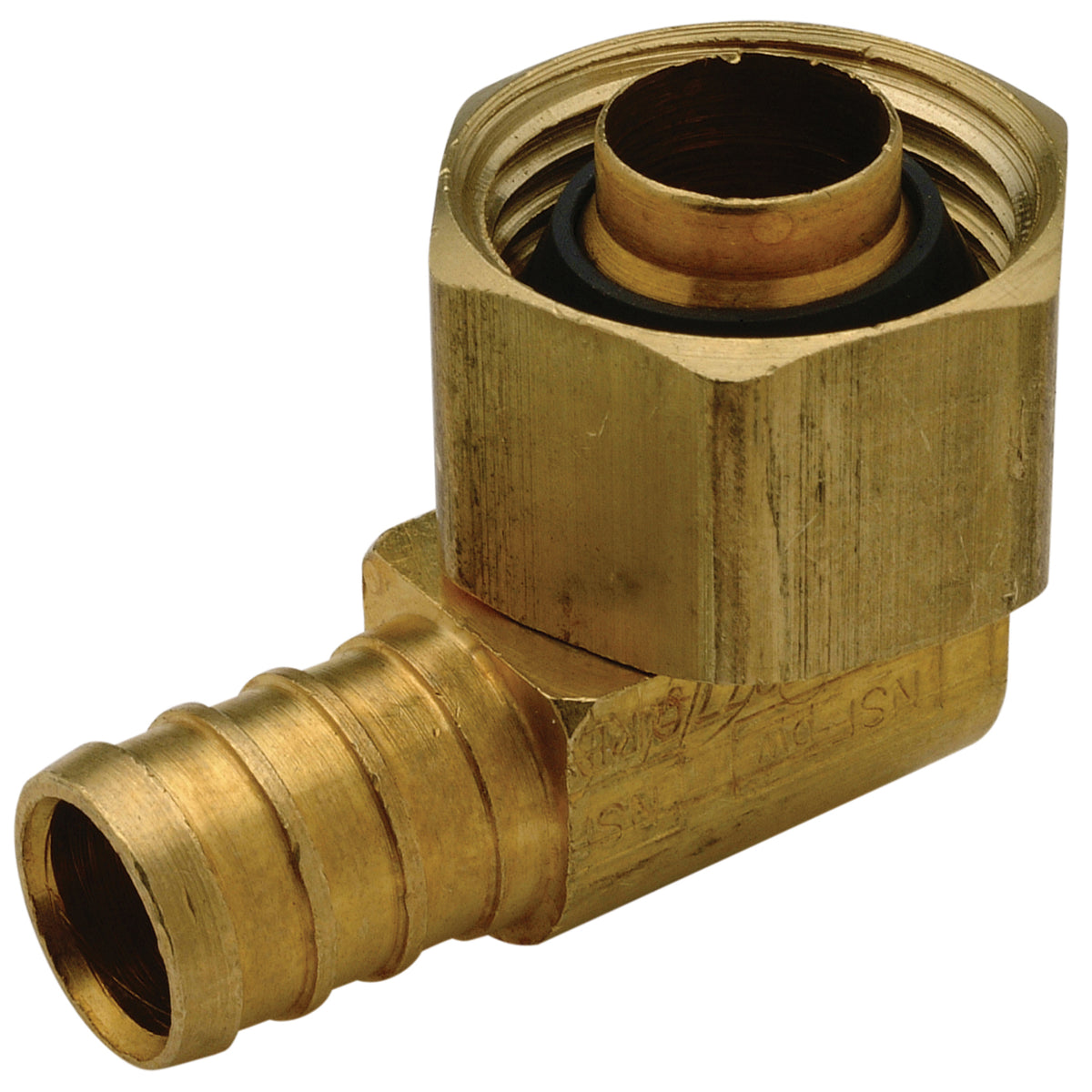

The Zurn QQE33BSGX is a 1/2" lead-free brass elbow -- 1/2" Barb x 1/2" Female Swivel Elbow. It features a brass body. Rated to 160 psi. This model is certified lead-free for potable-water installations.
Q_P Zurn PEX tubing is produced using the silane method of crosslinking. It is used in residential and commercial applica- tions for cold water service, hot and cold potable water, fire protection, underground fluid distribution and water distribution to manifolds, hydronic coils, etc. It may also be used in radiant heating systems where there are no ferrous metal parts or ferrous metal parts are isolated from the tubing. See Zurn Pex Radiant Heating and Design Guide (ZPM02101) for additional information I.D. O.D. Listings • NSF 61 including Annex G • NSF 14 • Uniform Plumbing Code • ASTM F876 / F877 • AWWA C904 (1/2" thru 1-1/4") • CSA B137.5 • UL1821 (White 1" and larger) • For the following fittings system: - ASTM F1807 - ASTM F1865 - ASTM F1960 - ASTM F2098 - ASTM F2159 • PEX 5306 - Continuously circulating hot water plumbing loop at 140 °F. Six month UV rating. • 160 PSI @73 °F • 100 PSI @ 180° F • 130 PSI @ 120 °F (1" and larger only) • 80 PSI @ 200 °F
Features
- Used in PEX hot and cold water plumbing applications
- Easy installation
- Low-lead compliant
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.
- What standards is it listed to?
- ASTM F1807, ASTM F1960, ASTM F2159, ASTM F876, CSA-B137.5, NSF-14, NSF-61.
- Is it lead-free?
- Yes, certified lead-free for potable-water installations.
Specifications
- Type: Brass Swivel Elbows
- Size: 1/2"
- Connection: Barb
- Body Material: Brass
- Max Pressure (psi): 160
- Application: Domestic Water
- MPN: QQE33BSGX
- Certifications: ASTM F1807, ASTM F1960, ASTM F2159, ASTM F876, CSA-B137.5, NSF-14, NSF-61
- Lead-Free: Yes
- Fitting Type: Elbow
- Connection System: PEX Crimp
- Port Configuration: 1/2" Barb x 1/2" Female Swivel Elbow
Dimensions
| Size Nominal | 1/2" | End Connection | Barb |
Details
| Series | QQE33BSGX | Device Type | Brass Swivel Elbows |
| Lead Free | Yes | Body Material | Brass |
| Application | Domestic Water | Max Pressure PSI | 160.0 psi |
| Configuration | 1/2" Barb x 1/2" Female Swivel Elbow | Connection system | PEX Crimp |
| Fitting type | Elbow | — | — |
Certifications & Standards
| ASTM F1807 | ASTM F1960 |
| ASTM F2159 | ASTM F876 |
| CSA-B137.5 | NSF-14 |
| NSF-61 | — |
