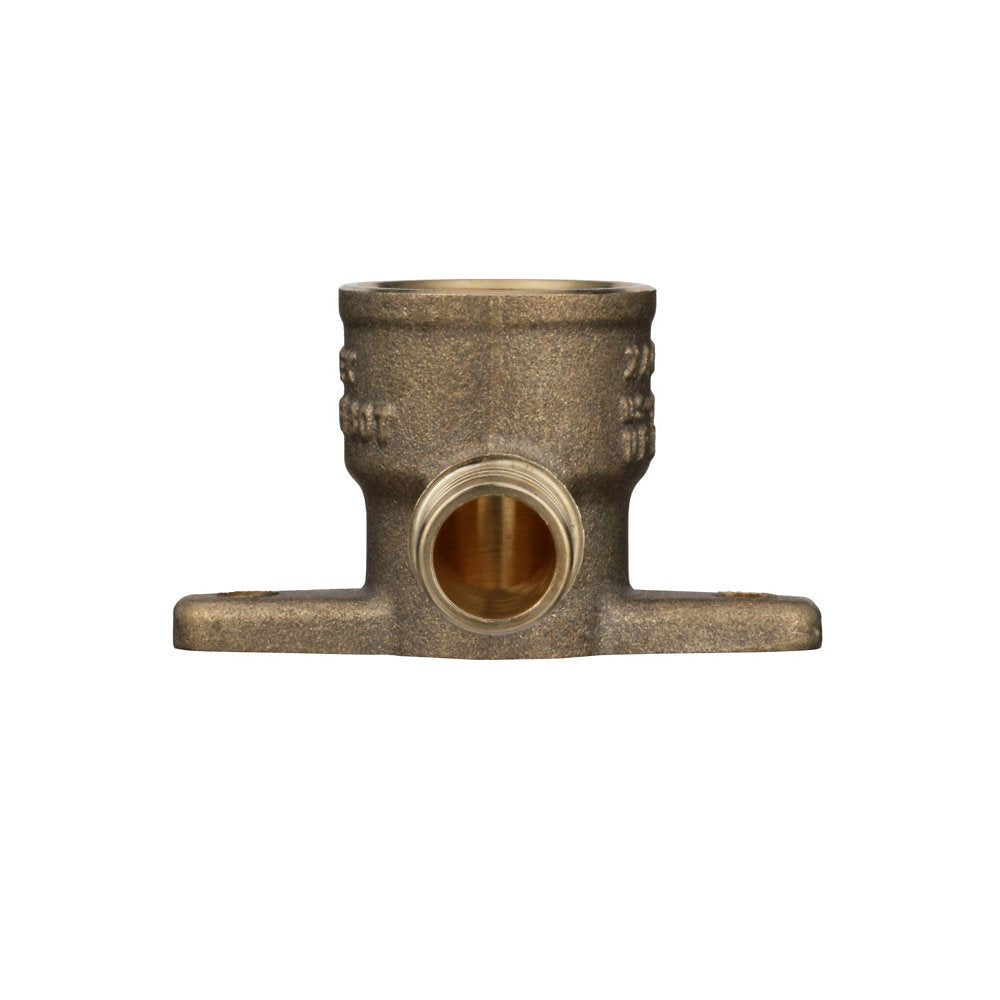

Zurn QQDE44BFGX 3/4" Lead-Free Elbow, Brass, Barb

The Zurn QQDE44BFGX is a 3/4" lead-free brass elbow -- 3/4" Barb x 3/4" Barb Drop Ear Elbow. It features a brass body. Rated to 160 psi. This model is certified lead-free for potable-water installations.

Zurn PEX® XL- Low Lead Drop Ear Elbow. The QQDE_BFGX is used to connect PEX to FPT drop ear elbow. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 PSI at 73°F, 100 PSI at 180°F, and 80 PSI at 200°F . These fittings are listed by NSF as complying with the following standards: NSF/ ANSI Standard 14, NSF/ANSI Standard 61 including Annex G, ASTM F877, CSA B137.5, and ASTM F1807. Accessories ___ QCLP3X 1/2" QickClamp ® Crimp Ring ___ QCLP4X 3/4" QickClamp® Crimp Ring ___ QCR3X 1/2" Copper Crimp Ring ___ QCR4X 3/4" Copper Crimp Ring ___ QSOET3X 1/2" Stainless Steel Crimp Ring ___ QSOET4X 3/4" Stainless Steel Crimp Ring

Features

• Used in PEX hot and cold water plumbing applications
• Easy installation
• Low-lead compliant

Common Questions

Crimp or expansion fitting -- which is this?

This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.

What standards is it listed to?

ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61.

Is it lead-free?

Yes, certified lead-free for potable-water installations.

Specifications

• Type: PEX® XL-Brass Drop Ear Elbow
• Size: 3/4"
• Connection: Barb
• Body Material: Brass
• Max Pressure (psi): 160
• Application: Domestic Water
• MPN: QQDE44BFGX
• Certifications: ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61
• Lead-Free: Yes
• Fitting Type: Elbow
• Connection System: PEX Crimp
• Port Configuration: 3/4" Barb x 3/4" Barb Drop Ear Elbow
