Specifications
Description

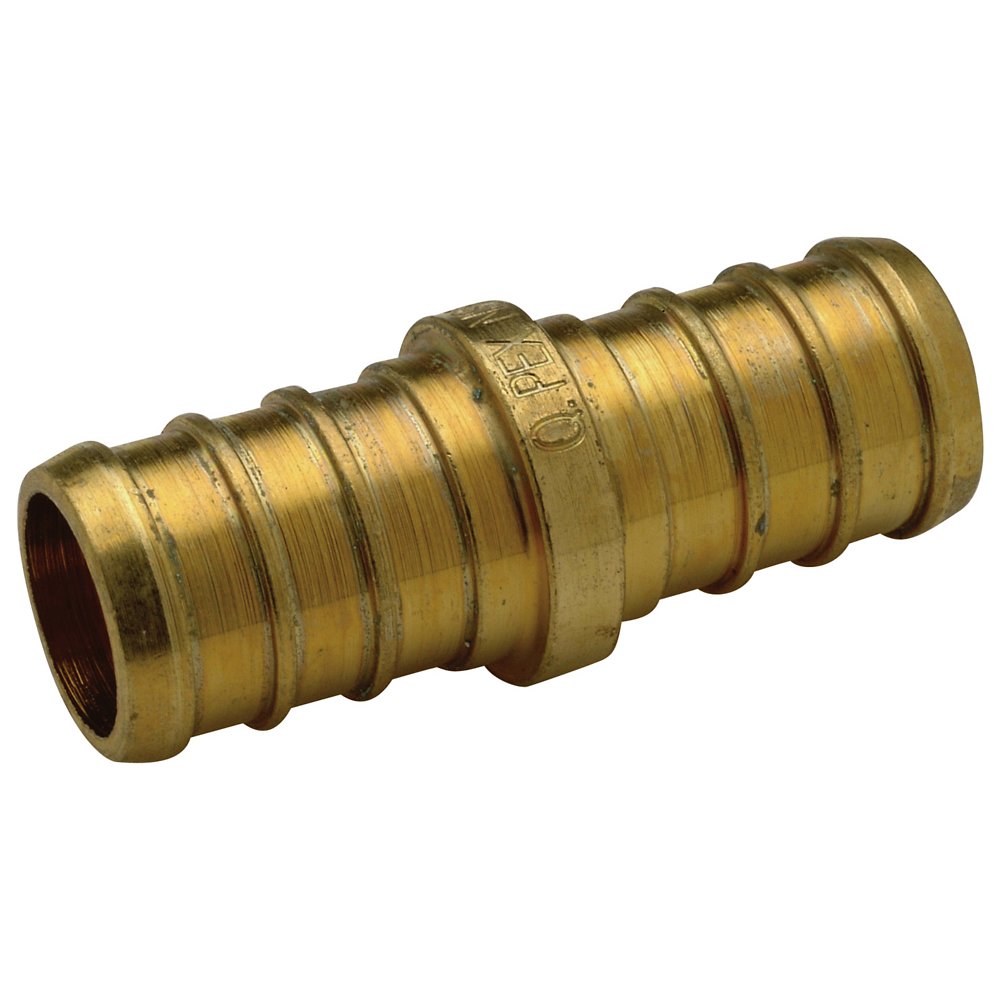

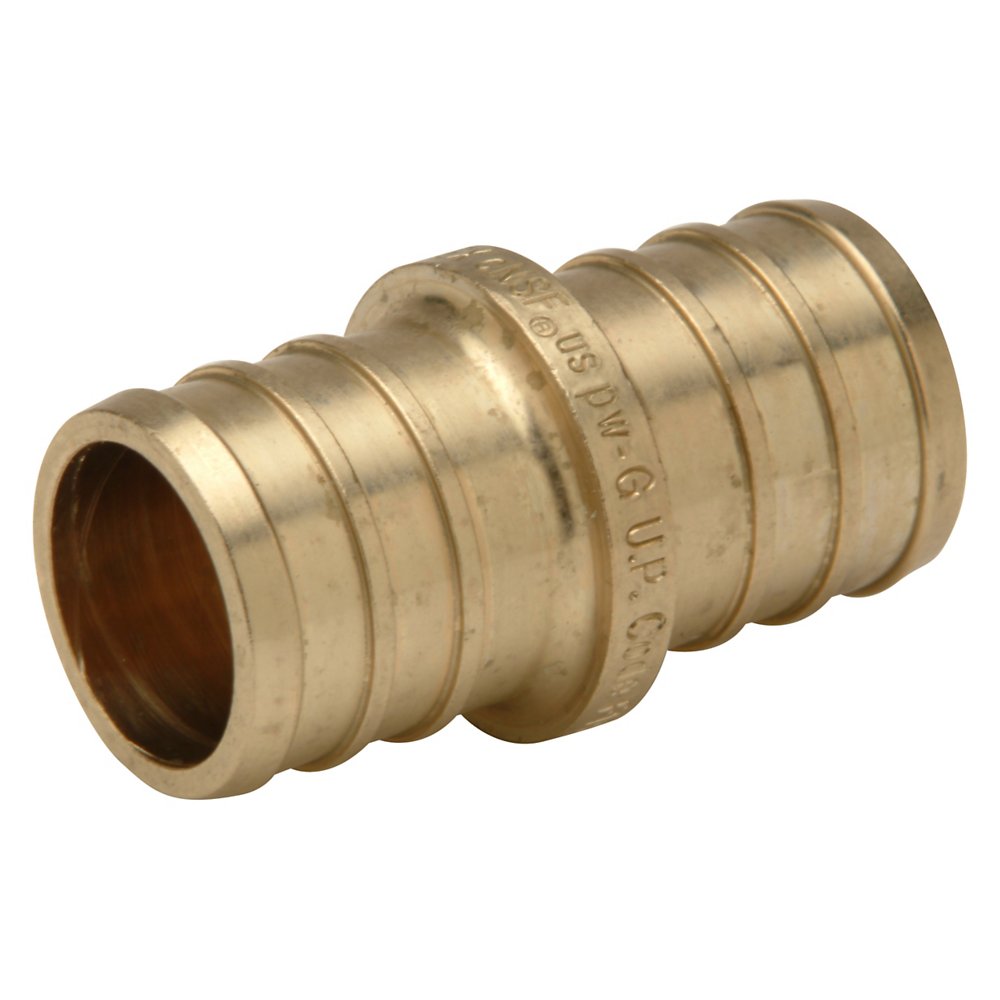

The Zurn QQC65GX is a 1-1/4" brass coupling -- 1-1/4" Barb x 1" Barb Coupling. It features a brass body. Rated to 160 psi.
Features
- Used in PEX hot and cold water plumbing applications
- Easy installation
- Low-lead compliant
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.
- What standards is it listed to?
- ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61.
- Is this a reducing fitting?
- Yes -- the ports are 1-1/4" Barb x 1" Barb Coupling. Match this against the run before ordering; a reducing fitting cannot be swapped for a same-size part.
Specifications
- Type: Barb Coupling XL-Low Lead Brass
- Size: 1-1/4"
- Inlet Size: 1-1/4"
- Outlet Size: 1"
- Connection: Barb
- Body Material: Brass
- Max Pressure (psi): 160
- Application: Domestic Water
- MPN: QQC65GX
- Certifications: ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61
- Fitting Type: Coupling
- Connection System: PEX Crimp
- Port Configuration: 1-1/4" Barb x 1" Barb Coupling
Dimensions
| Size Nominal | 1-1/4" | Inlet Size | 1-1/4" |
| Outlet Size | 1" | End Connection | Barb |
Details
| Series | QQC65GX | Device Type | Barb Coupling XL-Low Lead Brass |
| Body Material | Brass | Application | Domestic Water |
| Max Pressure PSI | 160.0 psi | Configuration | 1-1/4" Barb x 1" Barb Coupling |
| Connection system | PEX Crimp | Fitting type | Coupling |
Certifications & Standards
| ASTM F1807 | ASTM F877 |
| CSA-B137.5 | NSF-14 |
| NSF-61 | — |
