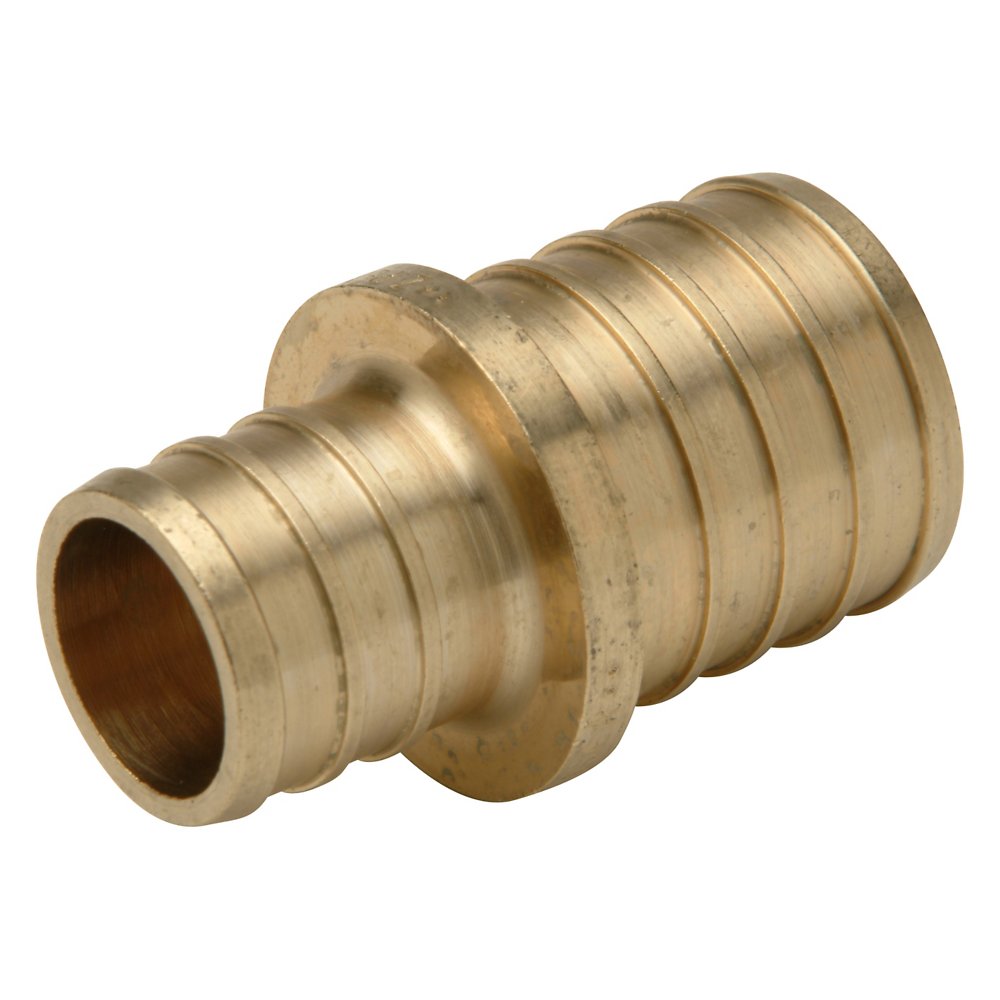

Zurn QQC43GX 3/4" Coupling, Brass, Barb

The Zurn QQC43GX is a 3/4" brass coupling -- 3/4" Barb x 1/2" Barb Coupling. It features a brass body. Rated to 160 psi.

Features

• Used in PEX hot and cold water plumbing applications
• Easy installation
• Low-lead compliant

Common Questions

Crimp or expansion fitting -- which is this?

This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.

What standards is it listed to?

ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61.

Is this a reducing fitting?

Yes -- the ports are 3/4" Barb x 1/2" Barb Coupling. Match this against the run before ordering; a reducing fitting cannot be swapped for a same-size part.

Specifications

• Type: Barb Coupling XL-Low Lead Brass
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 1/2"
• Connection: Barb
• Body Material: Brass
• Max Pressure (psi): 160
• Application: Domestic Water
• MPN: QQC43GX
• Certifications: ASTM F1807, ASTM F877, CSA-B137.5, NSF-14, NSF-61
• Fitting Type: Coupling
• Connection System: PEX Crimp
• Port Configuration: 3/4" Barb x 1/2" Barb Coupling
