Specifications
Description

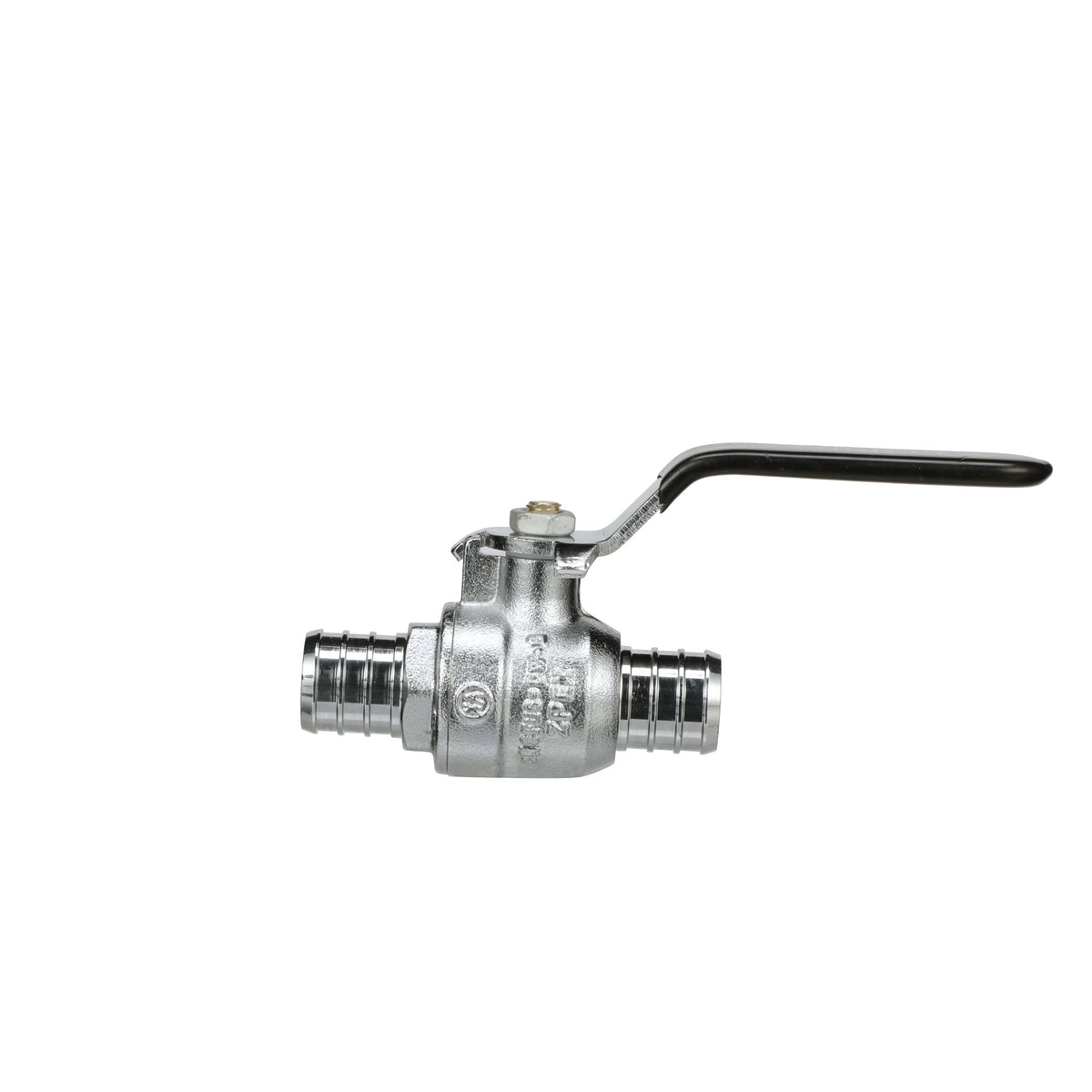

The Zurn QQBV44GX is a 3/4" brass ball valve -- 3/4" Barb x 3/4" Barb Ball Valve. It features a brass body. Rated to 160 psi.
Zurn XL Brass full port PEX ball valves are dependable insert and crimp fittings that are fast, easy, and safe to install..
Features
- Used in PEX hot and cold water plumbing applications
- Easy to Install
- Easy turn lever handle
- Low-Lead Compliant
Common Questions
- Crimp or expansion fitting -- which is this?
- This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.
- What standards is it listed to?
- ASTM F1807, CSA-B137.5, NSF-61.
Specifications
- Type: PEX® XL-Low Lead Brass Barb x Barb Lever Ball Valve
- Size: 3/4"
- Connection: Barb
- Body Material: Brass
- Max Pressure (psi): 160
- Application: Domestic Water
- MPN: QQBV44GX
- Certifications: ASTM F1807, CSA-B137.5, NSF-61
- Fitting Type: Ball Valve
- Connection System: PEX Crimp
- Port Configuration: 3/4" Barb x 3/4" Barb Ball Valve
- Turn Type: Quarter-Turn
- Inlet Connection: Barb
- Outlet Connection: Barb
Dimensions
| Size Nominal | 3/4" | End Connection | Barb |
Details
| Series | QQBV44GX | Device Type | PEX® XL-Low Lead Brass Barb x Barb Lever Ball Valve |
| Body Material | Brass | Application | Domestic Water |
| Max Pressure PSI | 160.0 psi | Turn Type | Quarter-Turn |
| Inlet Connection Type | Barb | Outlet Connection Type | Barb |
| Configuration | 3/4" Barb x 3/4" Barb Ball Valve | Connection system | PEX Crimp |
| Fitting type | Ball Valve | — | — |
Certifications & Standards
| ASTM F1807 | CSA-B137.5 |
| NSF-61 | — |
