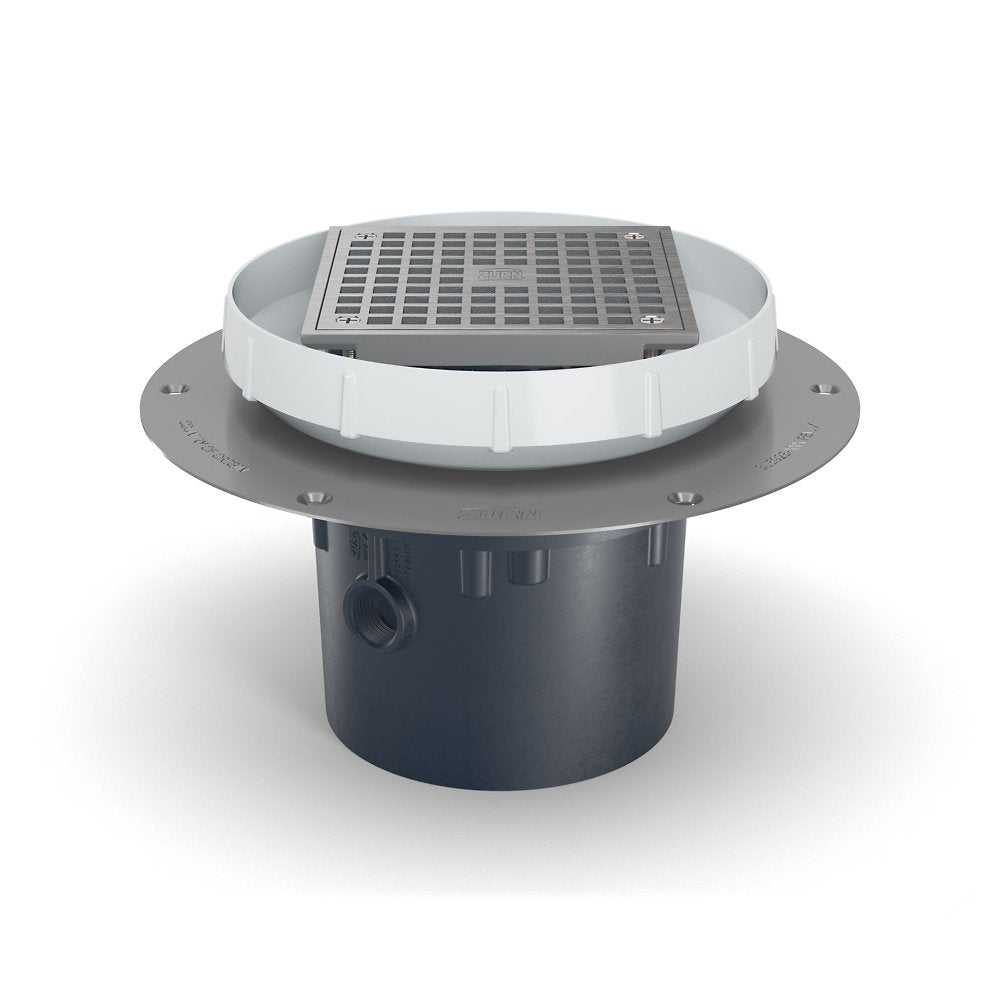

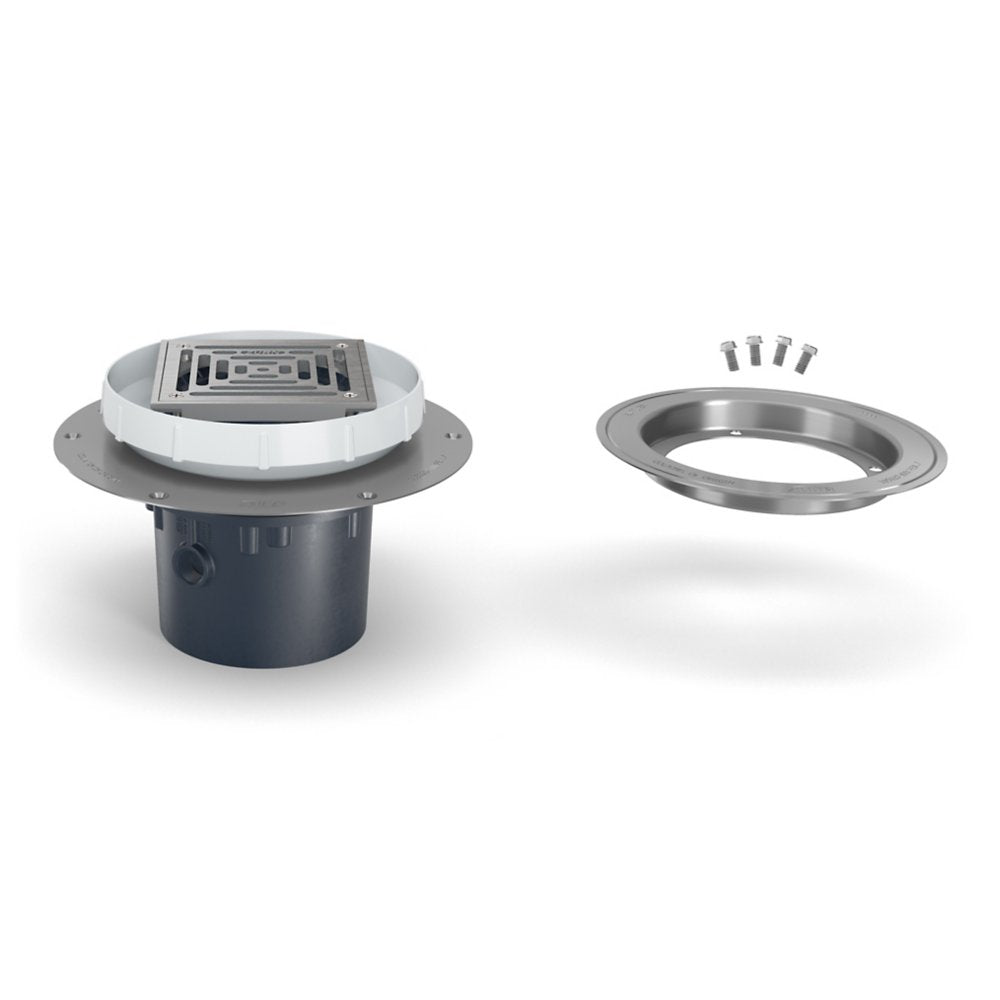

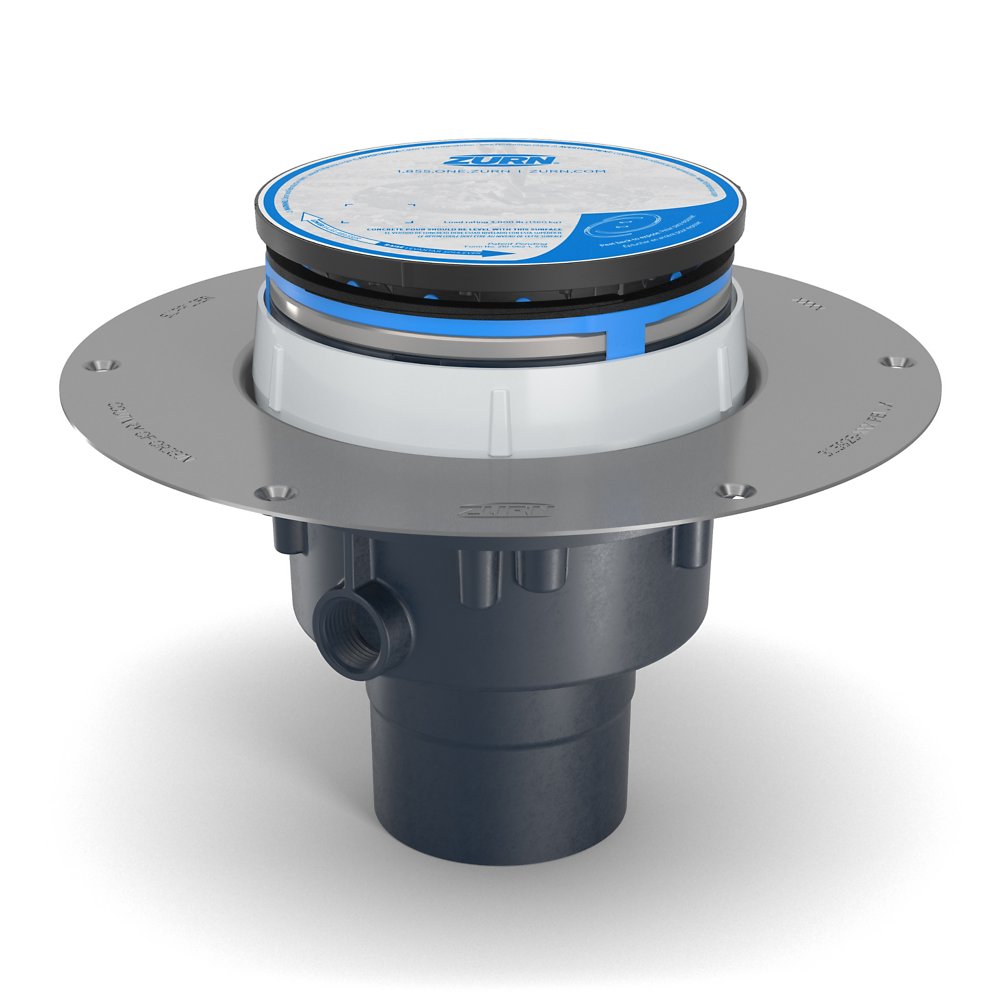

Zurn EZ2-PV2 Floor Drain, PVC, Solvent

The Zurn EZ2-PV2 is a pvc floor drain with a 2" Solvent outlet. It features a pvc body.

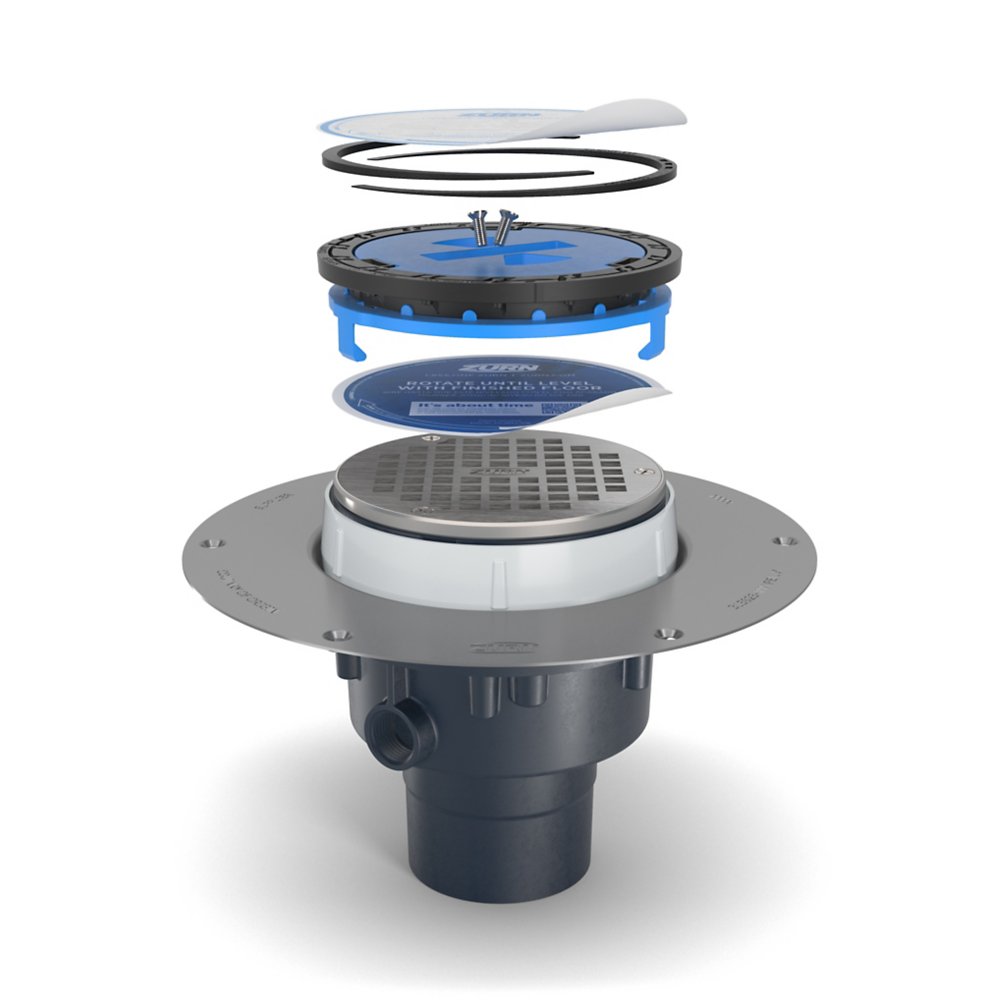

Zurn EZ1TM floor and shower drain, PVC solvent weld body with bottom outlet and 1/2" [13] trap primer connection knock-out plug, stainless steel deck plate, and top assembly. EZ1 TM drainage series is engineered to simplify product installation, comprised of concrete shield, up to 1" [25] of vertical post pour adjustment, pre-packaged shims for tilt correction and integrated self-contained square or round light duty strainer in nickel bronze or stainless steel with rough-in cover for protection during the concrete pour.

Features

• Integrated engineering that includes 1-1/4" of available post-pour adjustment and tilt accessory package
• Ships as a complete and assembled system
• Saves over 14 minutes per drain installation
• Designed to stand up to the tough construction environment with 3,000lb load capacity
• Comes standard with protective grate sticker
• Add a Zurn ZShield™ barrier trap seal to minimize evaporation by preventing odors, gases, and insects from entering up through the drain.

Common Questions

What pipe connection does it use?

It connects with a 2" Solvent outlet.

Can it take traffic?

It carries a Light Duty rating. Static load capacity is 3000 lb.

Does it have a trap primer connection?

Yes, a 1/2" trap primer connection.

What is it made of?

It has a pvc body with a nickel bronze top.

Specifications

• Size: 2"
• Outlet Size: 2"
• Connection: Solvent
• Body Material: PVC
• MPN: EZ2-PV2
• Top / Strainer Material: Nickel Bronze
• Top / Strainer Shape: Round
• Load Rating: Light Duty
• Load Rating (lb): 3000
• Adjustable: Yes
• Trap Primer Connection: 1/2"
