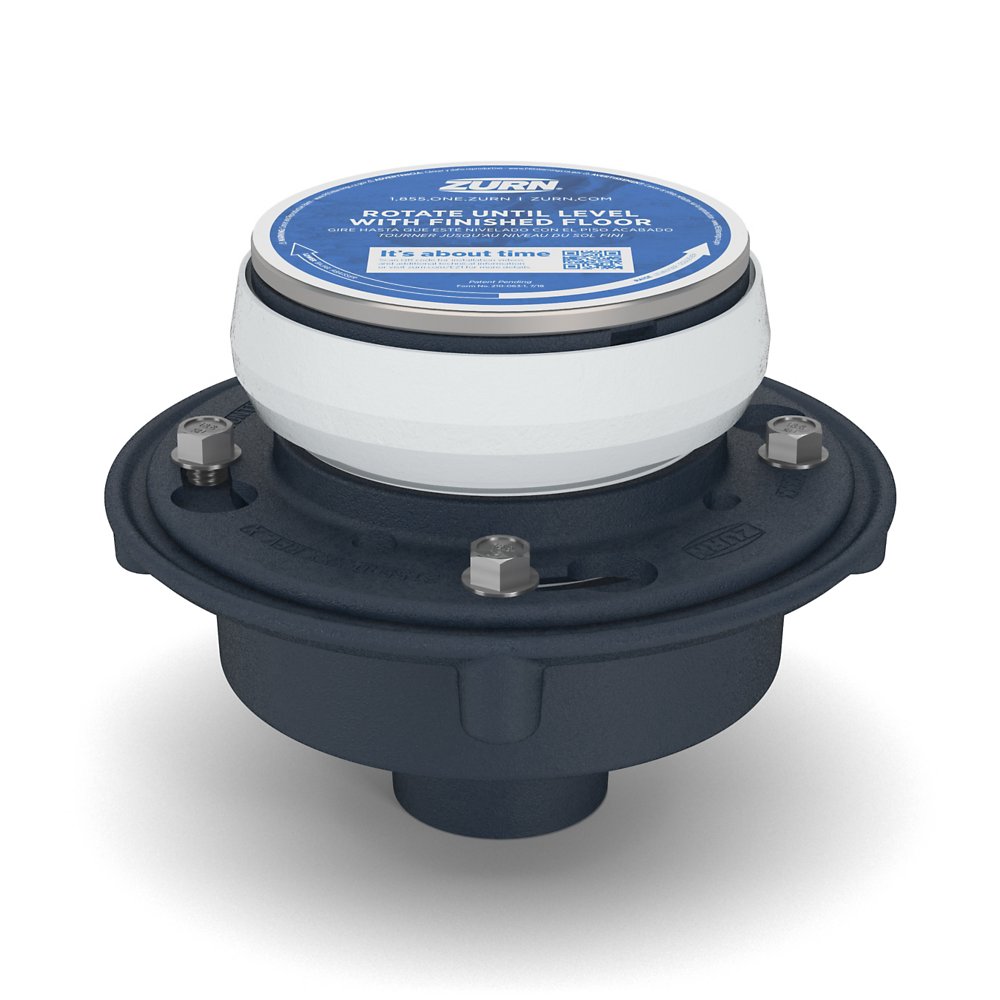

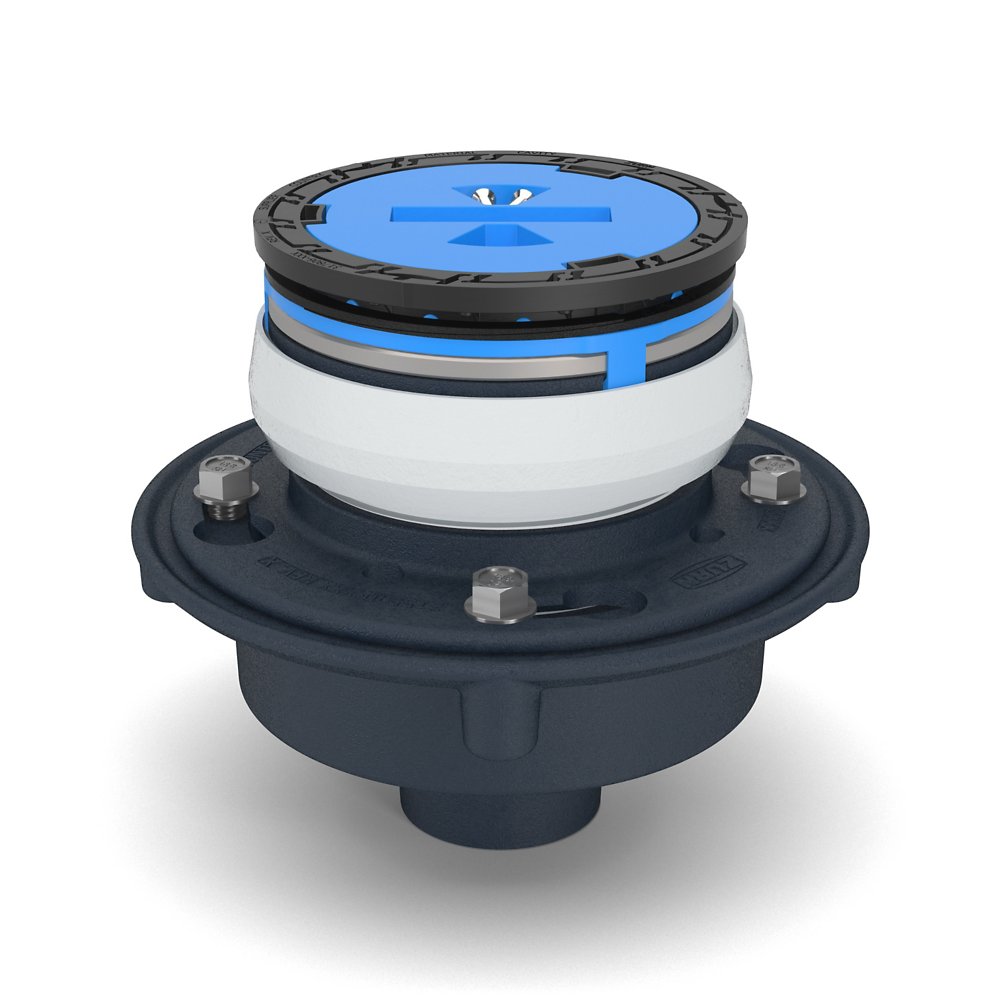

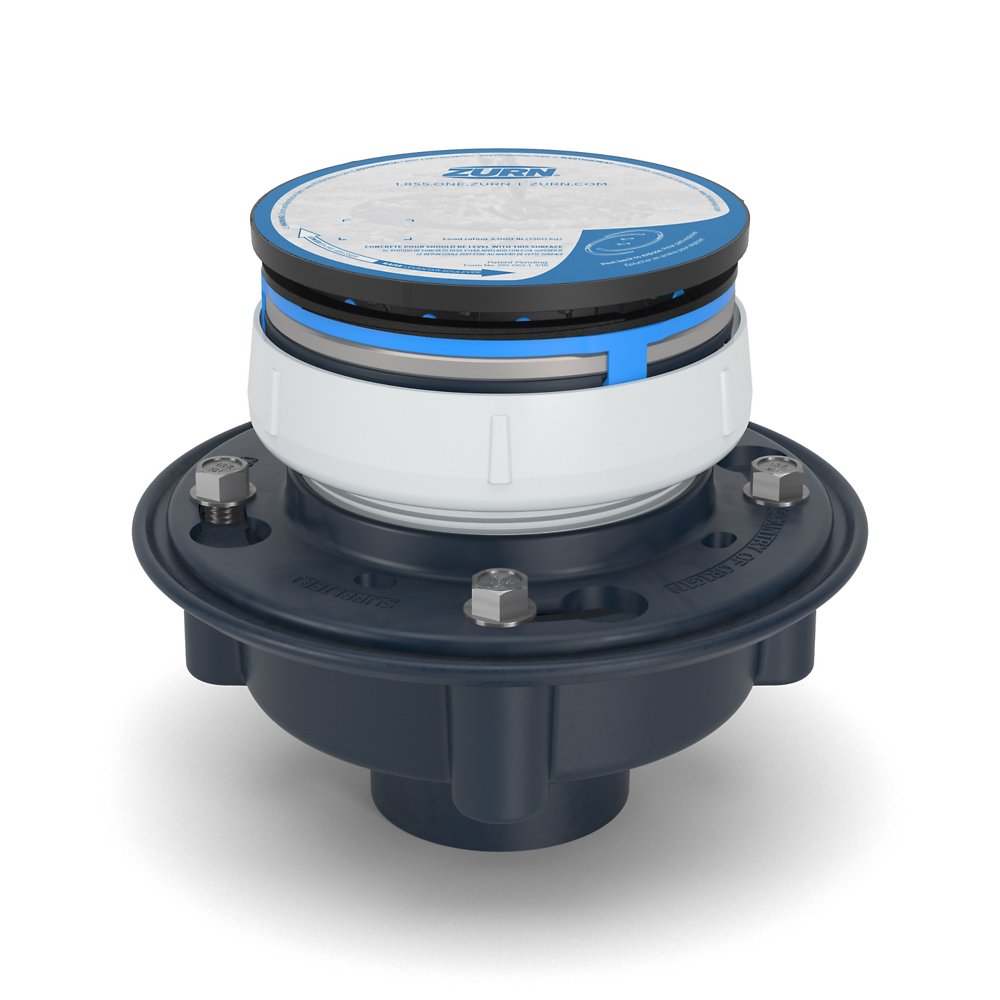

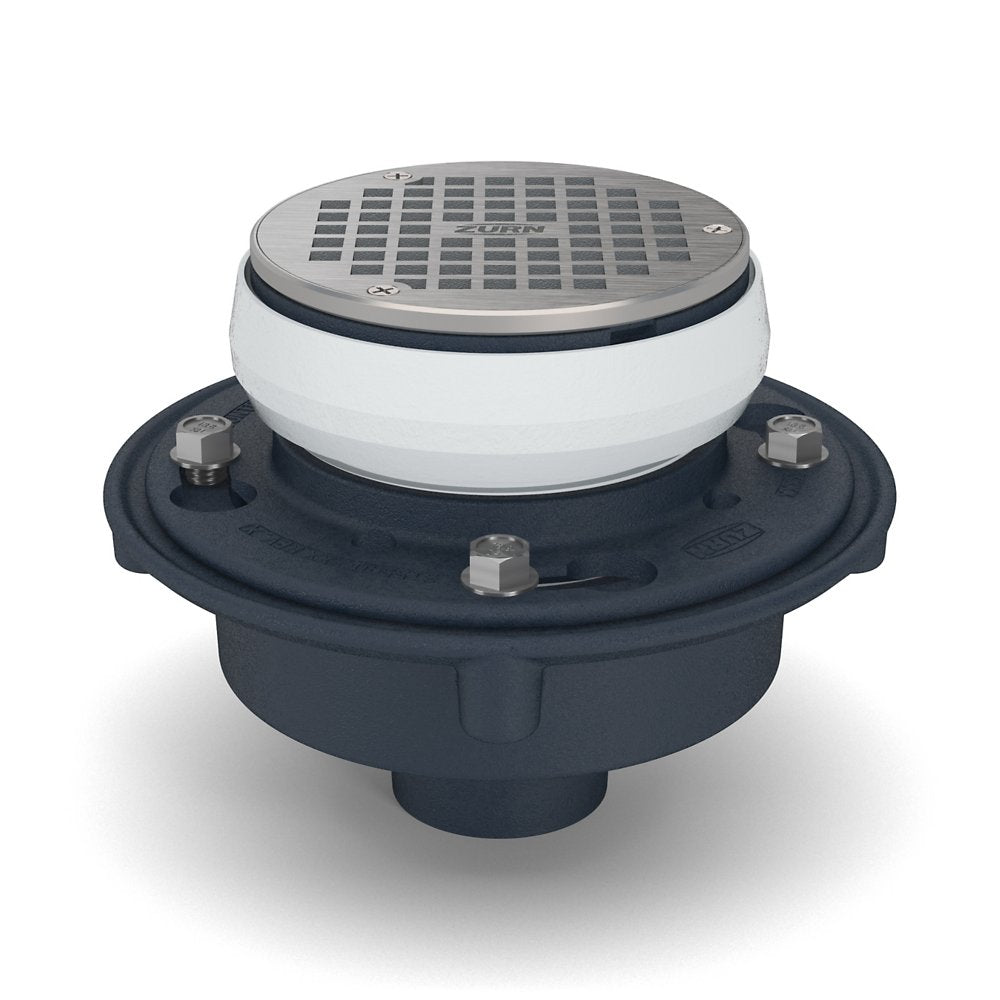

Zurn EZ1-PV2-S6-SS Floor Drain, PVC, Solvent

The Zurn EZ1-PV2-S6-SS is a pvc floor drain with a 2" Solvent outlet. It features a pvc body.

Zurn EZ1 floor and shower drain in PVC or ABS body is engineered to simplify product installation, post pour adjustment, and pre-packaged shims for tilt correction.

Features

• Integrated engineering that includes 1-1/4" of available post-pour adjustment and tilt accessory package
• Ships as a complete and assembled system
• Saves over 14 minutes per drain installation
• Designed to stand up to the tough construction environment with 3,000lb load capacity
• Comes standard with protective grate sticker
• Add a Zurn ZShield™ barrier trap seal to minimize evaporation by preventing odors, gases, and insects from entering up through the drain.

Common Questions

What pipe connection does it use?

It connects with a 2" Solvent outlet.

Can it take traffic?

Static load capacity is 3000 lb.

Does it have a trap primer connection?

Not stated by the manufacturer for this model -- check the spec sheet before assuming one.

What is it made of?

It has a pvc body with a stainless top.

Specifications

• Size: 2"
• Outlet Size: 2"
• Connection: Solvent
• Body Material: PVC
• MPN: EZ1-PV2-S6-SS
• Top / Strainer Material: Stainless
• Top / Strainer Shape: Round
• Load Rating (lb): 3000
• Adjustable: Yes
