Specifications
Description

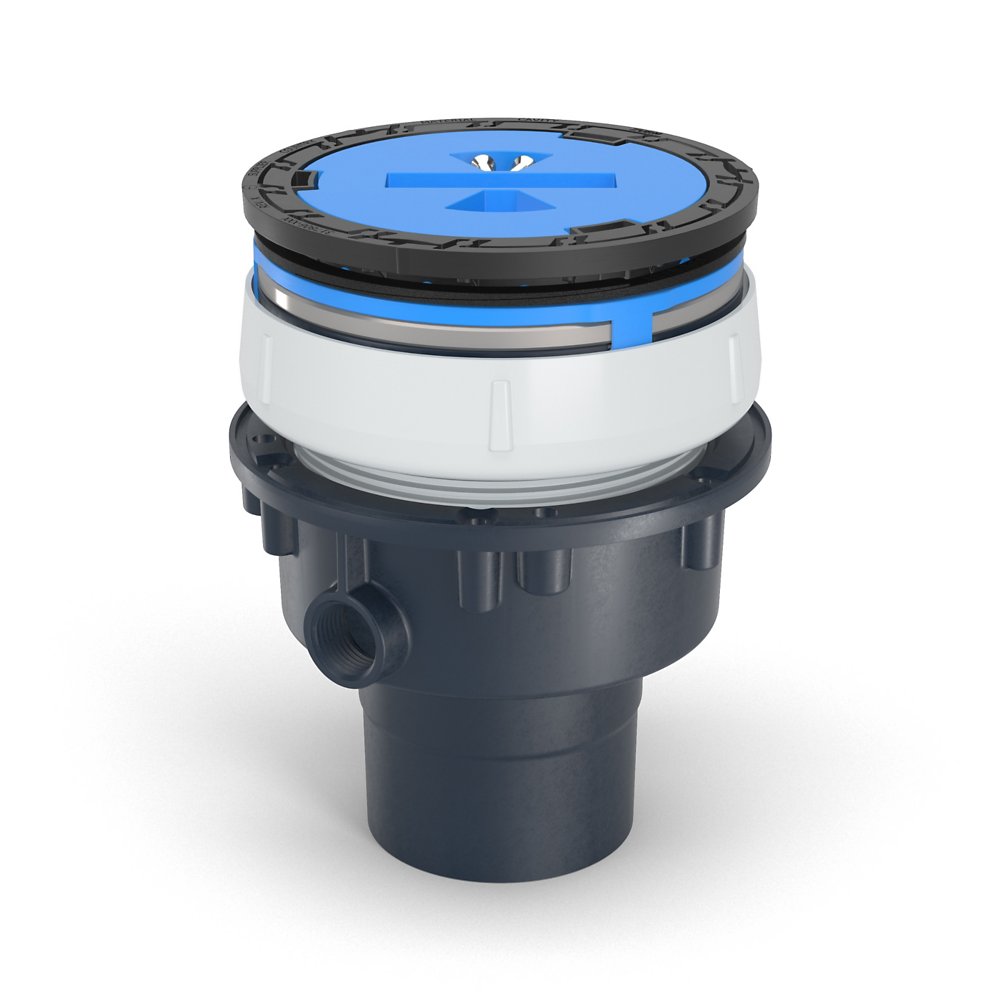

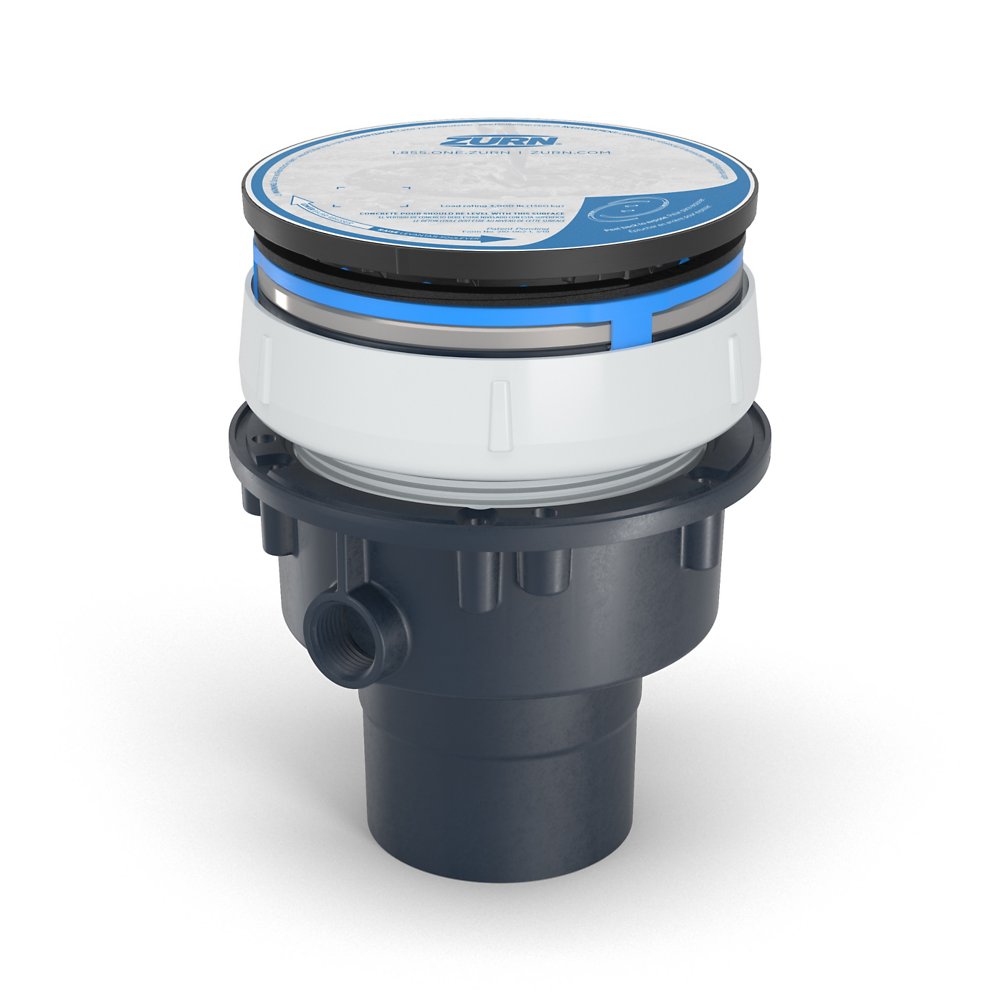

The Zurn EZ-PV3-S6 is a pvc floor drain with a 3" Solvent outlet. It features a pvc body.
Zurn EZ1TM floor and shower drain, PVC solvent weld body with bottom outlet and 1/2" [13] trap primer connection knock-out plug and top assembly. EZ1 TM drainage series is engineered to simplify product installation, comprised of concrete shield, up to 1" [25] of vertical post pour adjustment, pre-packaged shims for tilt correction and integrated self-contained square or round light duty strainer in nickel bronze or stainless steel with rough-in cover for protection during the concrete pour.
Features
- Integrated engineering that includes 1-1/4" of available post-pour adjustment and tilt accessory package
- Ships as a complete and assembled system
- Saves over 14 minutes per drain installation
- Designed to stand up to the tough construction environment with 3,000lb load capacity
- Comes standard with protective grate sticker
- Add a Zurn ZShield™ barrier trap seal to minimize evaporation by preventing odors, gases, and insects from entering up through the drain.
Common Questions
- What pipe connection does it use?
- It connects with a 3" Solvent outlet.
- Can it take traffic?
- It carries a Light Duty rating. Static load capacity is 3000 lb.
- Does it have a trap primer connection?
- Yes, a 1/2" trap primer connection.
- What is it made of?
- It has a pvc body with a nickel bronze top.
Specifications
- Size: 3"
- Outlet Size: 3"
- Connection: Solvent
- Body Material: PVC
- MPN: EZ-PV3-S6
- Top / Strainer Material: Nickel Bronze
- Top / Strainer Shape: Round
- Load Rating: Light Duty
- Load Rating (lb): 3000
- Adjustable: Yes
- Trap Primer Connection: 1/2"
Dimensions
| Size Nominal | 3" | Outlet Size | 3" |
| End Connection | Solvent | — | — |
Details
| Series | EZ-PV3 | Body Material | PVC |
| Adjustable | Yes | Load rating lb | 3000 |
| Load rating | Light Duty | Top material | Nickel Bronze |
| Top shape | Round | — | — |
Compare with similar products
| Size Nominal | 3"
| 3"
|
| Outlet Size | 3"
| 3"
|
| End Connection | Solvent
| Solvent
|
| Body Material | PVC
| ABS
|
