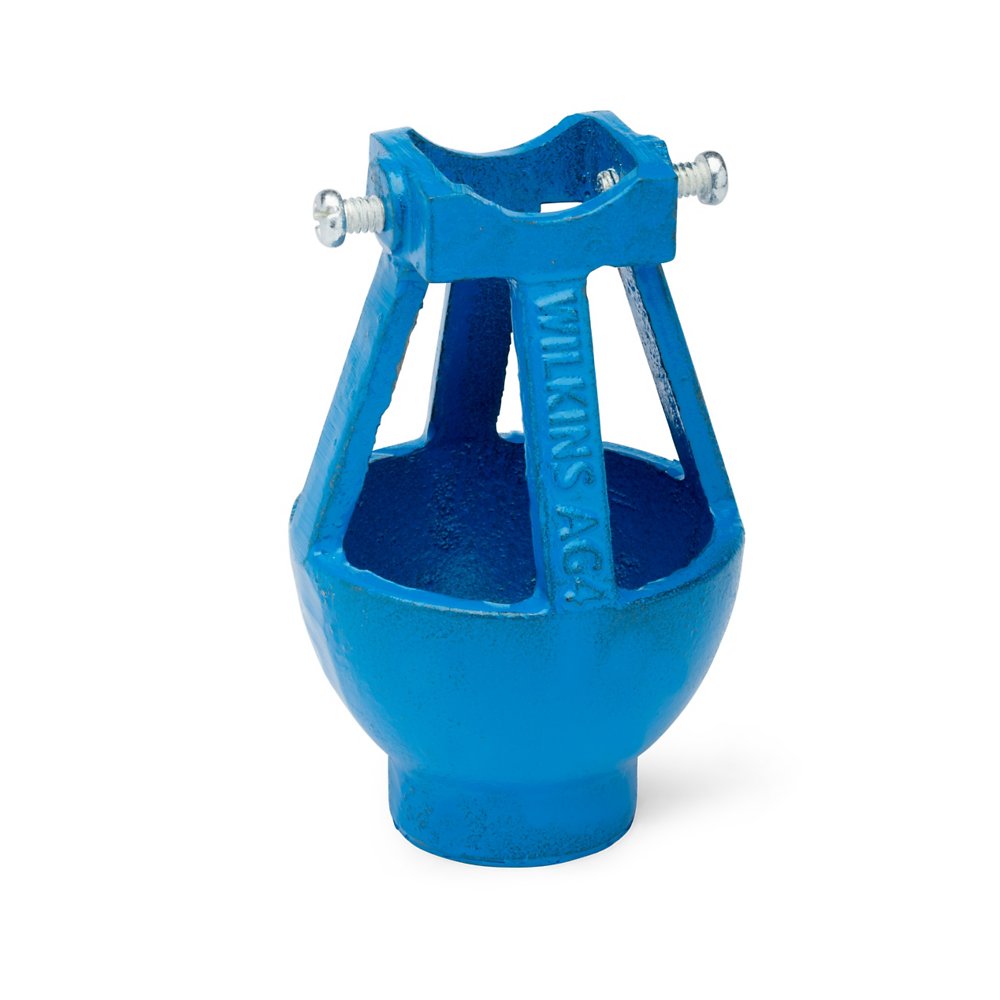

Zurn AG-4 Air Gap Fitting

The Zurn Wilkins AG-4 is a genuine air gap fitting for 3/4" to 1" Model 975XL / 975XL2.

The AG-4 Air Gap Fitting is used for indoor installations of all 3/4" - 1" Model 975XL/975XL2 Reduced Pressure Principle Backflow Preventers for the connection of a drain pipe to the backflow preventer, directing nuisance water discharge to a safe drain. It has iron inlet and 1" NPT outlet connections. The AG Air Gap Fitting can be mounted to the body of any drain line made of any standard piping material. The AG prevents a cross connection between the drain and potable water supply. Materials include an epoxy-painted cast grey iron elbow and zinc-plated steel bolts for long-lasting effectiveness.

Features

• Reduces downtime of attaching a drain line to a Reduced Pressure Principle Assembly
• Available for all Wilkins Reduced Pressure Principle Assemblies
• Eliminates cross connection between the drain and potable water supply
• Zinc-plated steel bolts resists corrosion
• ANSI/ASME A 112.1.2

Common Questions

Will this kit fit my assembly?

The AG-4 fits 3/4" and 1" sizes of Model 975XL / 975XL2. Kits are size- and series-specific, so match the model stamped on your valve body or cover before ordering.

What's included in this kit?

This is a air gap fitting -- it carries the factory parts for that subassembly only, not a whole-assembly rebuild.

Are these genuine Zurn Wilkins parts?

Yes. This is the factory AG-4 kit built with genuine Zurn Wilkins OEM components. Aftermarket parts can void your assembly approval and are commonly rejected by inspectors at annual test time.

Specifications

• Type: 3/4" - 1" Fitting compatible with Model 975LX/975XL2
• MPN: AG-4
• Fits Series: 975XL;975XL2
• Fits Size: 3/4";1"
• Kit Type: Air Gap Fitting
