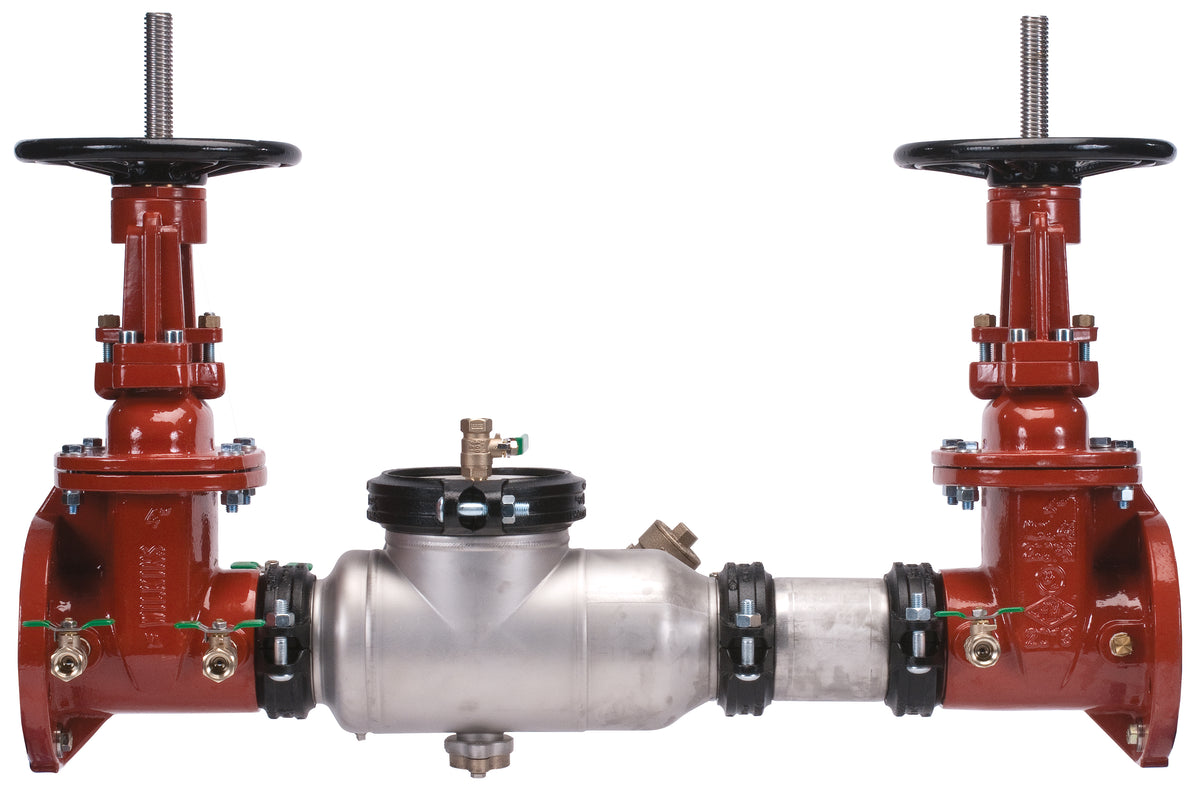

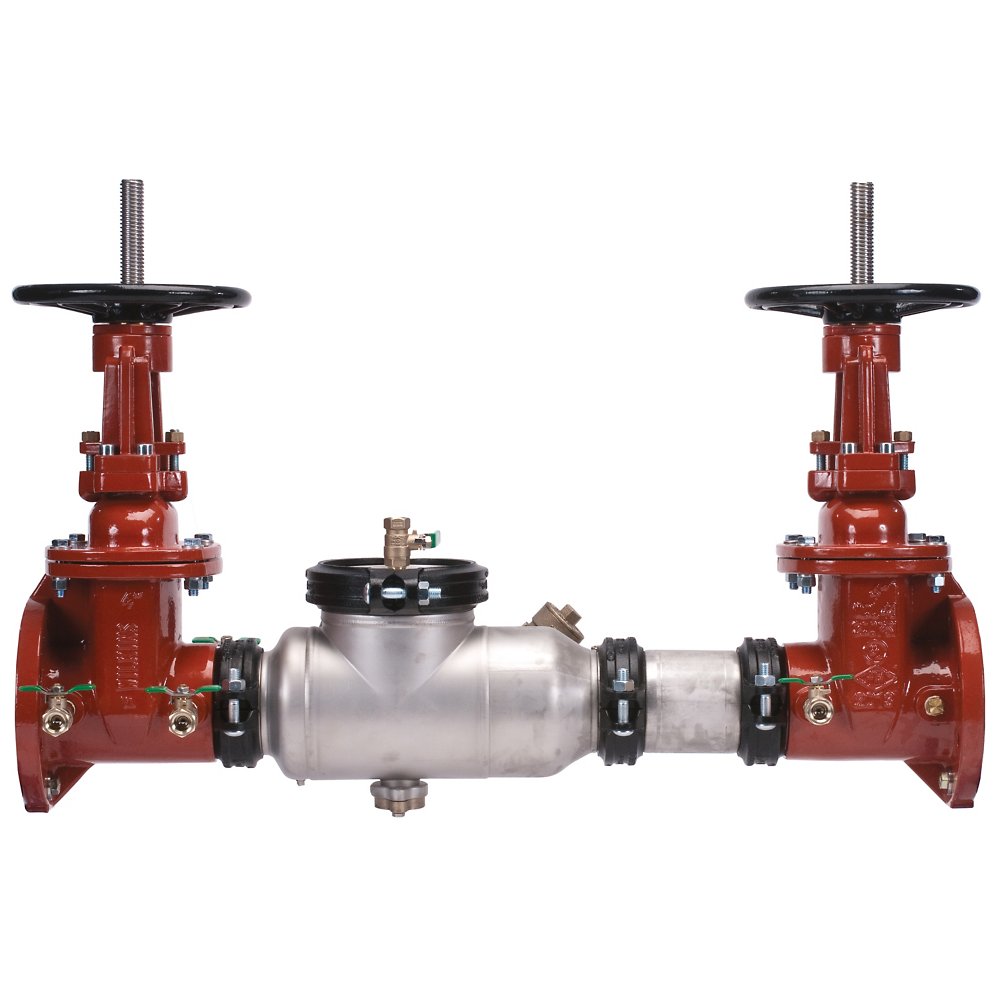

Zurn 6-350ASTDAR-A Lead-Free Replacement Double Check Detector Assembly, Stainless, Flanged

The Zurn Wilkins 6-350ASTDAR-A is a 6" lead-free double check detector assembly (DCDA) with Flanged connections, approved for low health hazard protection. It features a stainless body. This model is certified lead-free for potable-water installations.

The patented 350ASTDAR Replacement Double Check Detector Assembly with stainless steel body is a custom length assembly for drop-in replacement of an assembly that cannot be repaired. The AR series drastically reduces installation and system down time.

Features

• Designed to replace old, long lay length Double Check Detector Assemblies
• 304L Grade stainless steel body and spool
• Reduced the cost of assembly replacement
• ASSE® Listed, AWWA Compliant and CSA® Certified
• UL® Classified and C-UL® Classified
• Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California

Common Questions

What hazard level is this DCDA approved for?

It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the downstream substance could be a health hazard, codes require a reduced pressure zone (RPZ) assembly or a detector assembly instead.

Is this model legal for potable water?

Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.

Does this assembly have to be tested every year?

Yes. This is a field-testable assembly. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.

What shutoff valves are included?

It is supplied with non-rising stem (NRS) resilient-seated gate valves on the inlet and outlet.

Is this suitable for a fire sprinkler line?

Yes. Detector assemblies are built for fire sprinkler service: the metered bypass registers the low flows that reveal a leak or an unauthorized tap on the fire line. This model is UL Classified and C-UL Classified. The bypass meter reads in GPM.

Specifications

• Type: Replacement Double Check Detector Assembly
• Size: 6"
• Connection: Flanged
• Body Material: Stainless
• Application: Fire Protection
• Backflow Protection: Both
• MPN: 6-350ASTDAR-A
• Certifications: CSA, C-UL, UL, USC, NSF-372
• Lead-Free: Yes
• Assembly Type: DCDA
• Hazard Protection Level: Low Health Hazard
• USC FCCCHR Approved: Yes
• Fire Protection Listing: UL Classified;C-UL Classified
• Field Testable: Yes
• Shutoff Valves: NRS Gate
• Bypass Meter: GPM
