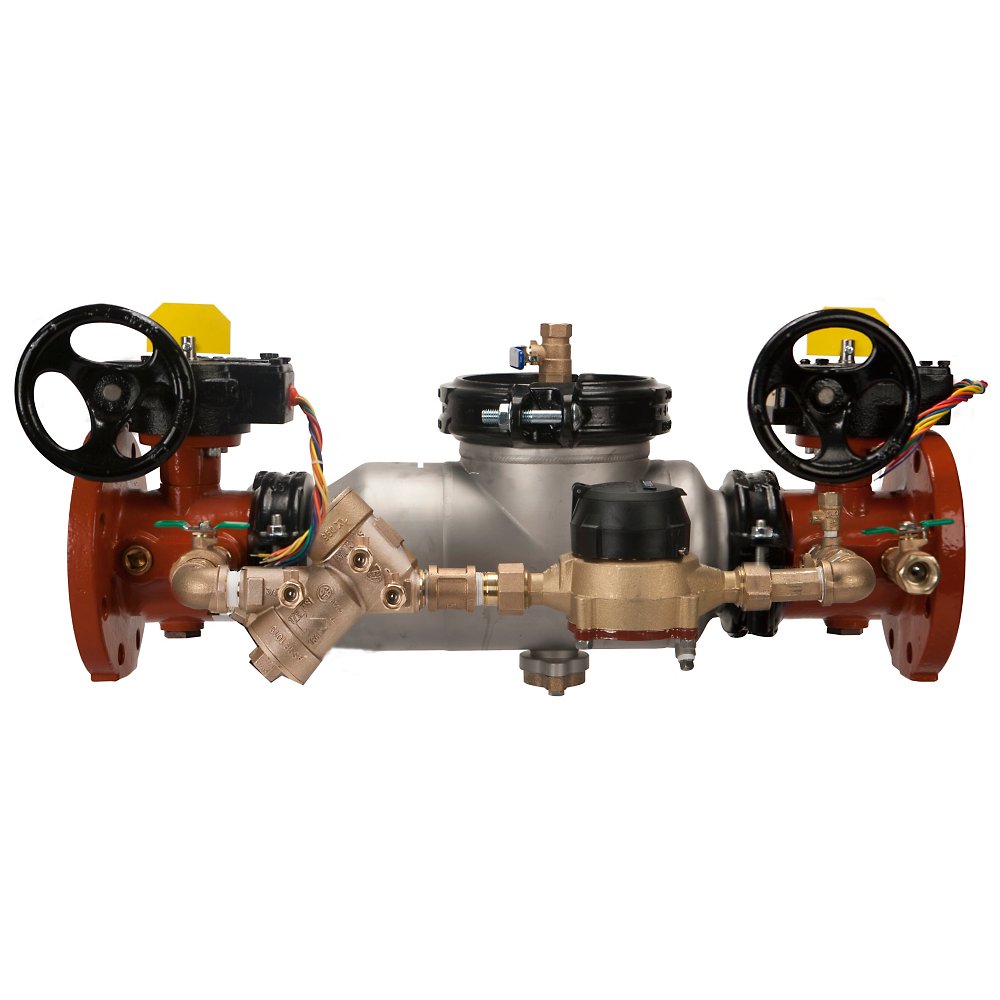

Zurn 6-350ASTDACFM Lead-Free Backflow Preventer - Stainless Steel Double Check Detector Assembly

The Zurn Wilkins 6-350ASTDACFM is a 6" lead-free double check detector assembly (DCDA) with Flanged connections, approved for low health hazard protection. It features a stainless body. Rated to 175 psi and up to 140°F. This model is certified lead-free for potable-water installations.

The 350ASTDA Double Check Detector Assembly protects against both backsiphonage and backpressure in low health hazard, fire protection applications. Its stainless steel body, access covers, internals, fasteners, and springs are corrosion-resistant for reduced maintenance costs. Featuring a metered bypass system, the 350ASTDA efficiently detects leaks and any unauthorized water use. Its single access cover reduces downtime and added costs associated with maintenance and repairs. The 350ASTDA features a short lay-length for compact, versatile installation in horizontal or vertical positions, and is available in a variety of flanged, grooved, or grooved x flanged end connections.

Features

• Short lay-length ensures easy installation in compact spaces
• Metered bypass detects leaks and unauthorized water use for reduced maintenance and repair costs
• High quality 304L grade stainless steel body and access covers reduces corrosion exposure
• Compliant with horizontal and vertical installation
• Lead-free law compliant
• ASSE® Listed 1048
• AWWA Compliant C510 (with gates only), and C550
• UL® Classified
• C-UL® Classified

Common Questions

What hazard level is this DCDA approved for?

It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the downstream substance could be a health hazard, codes require a reduced pressure zone (RPZ) assembly or a detector assembly instead. The assembly is listed to ASSE 1048.

Is this model legal for potable water?

Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.

Does this assembly have to be tested every year?

Yes. This is a field-testable assembly. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.

What shutoff valves are included?

It is supplied with non-rising stem (NRS) resilient-seated gate valves on the inlet and outlet.

Is this suitable for a fire sprinkler line?

Yes. Detector assemblies are built for fire sprinkler service: the metered bypass registers the low flows that reveal a leak or an unauthorized tap on the fire line. This model is UL Classified and C-UL Classified and FM Approved. The bypass meter reads in CFM.

How does this have to be installed?

It is approved for either horizontal or vertical installation, with the flow arrow on the body pointing in the direction of flow.

Specifications

• Type: Backflow Preventer - Stainless Steel Double Check Detector Assembly
• Size: 6"
• Connection: Flanged
• Body Material: Stainless
• Max Pressure (psi): 175
• Application: Fire Protection
• Backflow Protection: Both
• MPN: 6-350ASTDACFM
• Temperature: up to 140°F
• Certifications: ASSE-1048, AWWA-C510, CSA-B64.5, C-UL, UL, FM, USC, NSF-61, NSF-372
• Lead-Free: Yes
• Assembly Type: DCDA
• Hazard Protection Level: Low Health Hazard
• ASSE Standard: ASSE 1048
• USC FCCCHR Approved: Yes
• Fire Protection Listing: UL Classified;C-UL Classified;FM Approved
• Field Testable: Yes
• Shutoff Valves: NRS Gate
• Approved Orientation: Horizontal & Vertical
• Bypass Meter: CFM
