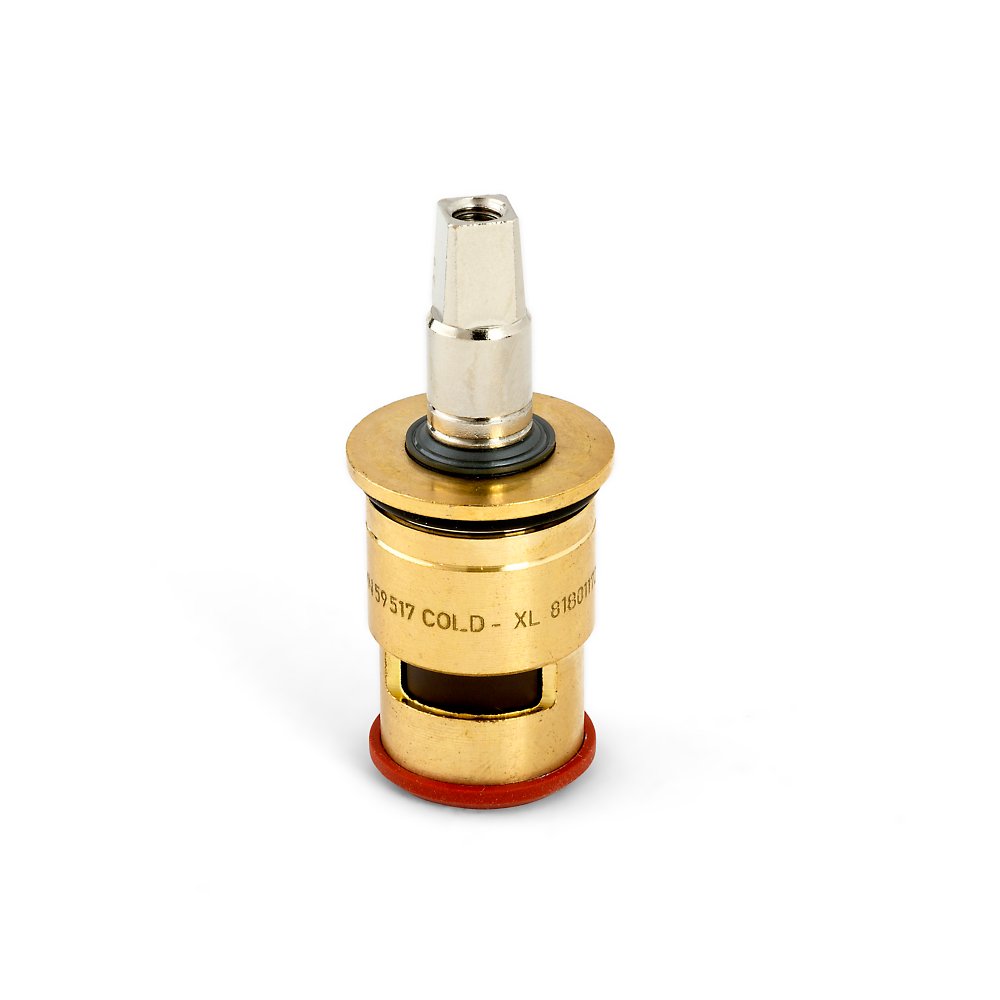

Zurn 59517005 Cartridge

The Zurn 59517005 is a lead-free cartridge. This model is certified lead-free for potable-water installations.

Save money and resources by repairing or replacing faucet components, rather than replacing the entire unit. Zurn's ceramic disc cartridges are made of heavy-duty cast brass for AquaSpec faucets (part no. 59517005) and stop leaks that originate from the handle. Ultradurable and expected to last for up to 1 million cycles. This short, 2 1/8-in. cartridge is for quarter-turn faucets and has an exposed chrome cartridge retaining nut. Intended for the right-hand cold-water handle; opens clockwise and closes counterclockwise. When you need a replacement part for repair or maintenance of a faucet, trust Zurn for genuine, reliable parts.

Features

• Pre-assembled for easy installation
• Fits AquaSpec® cold-water handles—opens clockwise/closes counterclockwise
• Short, 2 1/8” stem for faucet handles with an exposed retaining nut (not for Zurn faucets with covered retaining nut)
• Cast brass provides durability while complying with the Safe Water Drinking Act
• Positive shutoff eliminates drips and leakage to save water without over-turning the handles
• Square broach allows handles to align perfectly
• Interchangeable with other manufacturer's parts
• Chicago part no. 1-100XKJKABNF
• Limited lifetime warranty

Common Questions

What kind of cartridge is this?

This is a Ceramic 1/4-Turn cartridge.

Is this part certified lead-free?

Yes, certified lead-free under NSF/ANSI 372.

Specifications

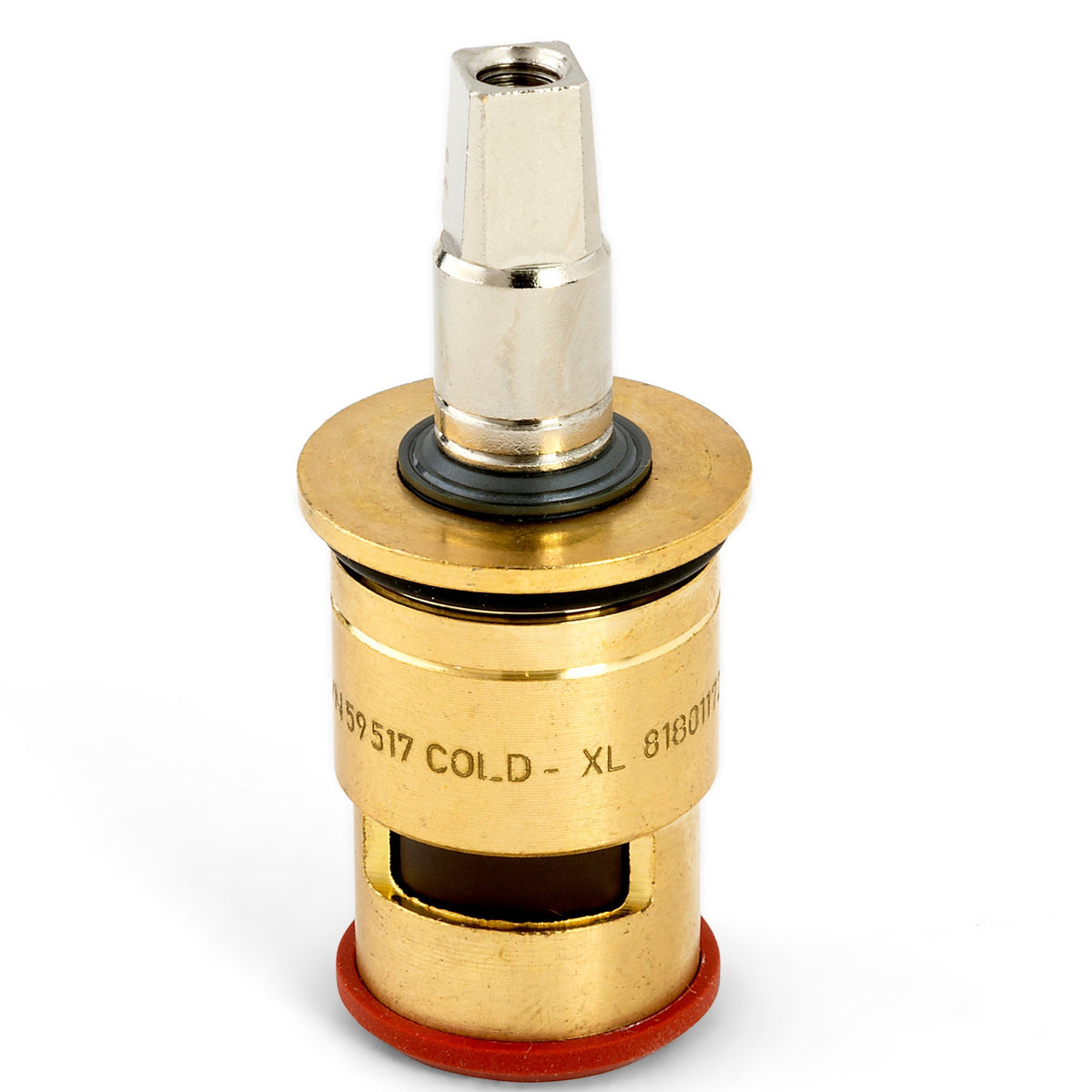

• Type: AquaSpec® XL Short Stem Quarter-Turn Ceramic Disc Cartridge, Cold
• MPN: 59517005
• Lead-Free: Yes
• Cartridge Type: Ceramic 1/4-Turn
• Product Role: Cartridge
