Specifications
Description

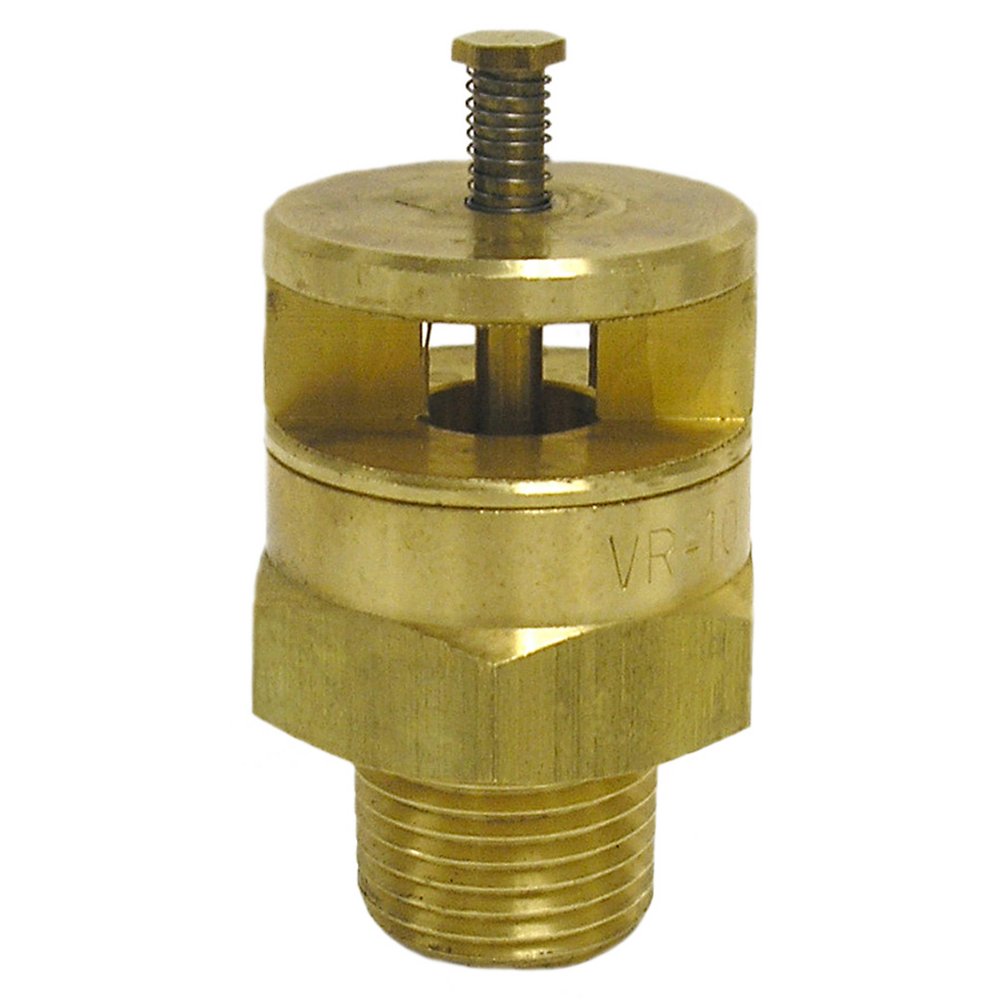

The Zurn Wilkins 34-VR10XL is a 3/4" vacuum relief valve for vacuum / backflow-device protection. It features a brass body. Rated to 225 psi and up to 250°F.
The VR10XL Vacuum Relief Valve is utilized to protect both commercial and residential water supply systems and pressure vessels from internal vacuum conditions draining a system by siphonage, collapsing storage tanks, and damaging heating elements. Its low-lead brass valve body and 300 series stainless steel internals protect against corrosion, while its silicone elastomers provide a durable, reliable seal. Features of the VR10XL include a maximum working water pressure of 200 psi, a maximum working water temperature of 250°F, and a capacity of 13 CFM. It is available in two convenient sizes for easy installation.
Features
- Water tank collapse prevention reduces maintenance and replacement costs
- Safely protects against internal vacuum conditions
- Stainless steel internals resist corrosion
- CSA Compliance to ANSI Z21.22/CSA 4.4
- Certified to NSF/ANSI 372 by IAPMO R&T
Common Questions
- What pressure does this relieve at?
- None - this is a vacuum relief valve, not a pressure relief valve. It opens inward to admit air when the system goes into a vacuum, preventing a tank from collapsing. It does nothing about overpressure and does not replace a T&P valve where one is required.
- Can I use this on potable water?
- Yes - it is certified lead-free under NSF/ANSI 372, which plumbing codes require for any device in a drinking-water line.
Specifications
- Type: Vacuum Relief Valve
- Size: 3/4"
- Connection: NPT
- Body Material: Brass
- Max Pressure (psi): 225
- Application: Domestic Water
- MPN: 34-VR10XL
- Temperature: up to 250°F
- Certifications: ANSI-Z21.22, CSA-4.4, NSF-372, IAPMO
- Relief Type: Vacuum
- Application: Vacuum / Backflow-Device Protection
- Approved for Potable Water: Yes
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| 34-VR10XL | 612052222387 | Download |
Dimensions
| Size Nominal | 3/4" | End Connection | NPT |
Details
| Series | VR10XL | Device Type | Vacuum Relief Valve |
| Body Material | Brass | Application | Domestic Water |
| Max Pressure PSI | 225.0 psi | Max Temp °F | 250.0 °F |
| Relief Type | Vacuum | Application Class | Vacuum / Backflow-Device Protection |
| Potable Approved | Yes | — | — |
Certifications & Standards
| ANSI-Z21.22 | CSA-4.4 |
| NSF-372 | IAPMO |
Compare with similar products
| Relief Type | Vacuum
| Vacuum
|
| Application Class | Vacuum / Backflow-Device Protection
| Vacuum / Backflow-Device Protection
|
| Potable Approved | Yes | Yes |
| Series | VR10XL
| VR10XL
|
| Spec Sheet | ||
| Device Type | Vacuum Relief Valve
| Vacuum Relief Valve
|
| Size Nominal | 3/4"
| 1/2"
|
| End Connection | NPT
| NPT
|
| Body Material | Brass
| Brass
|
| Application | Domestic Water
| Domestic Water
|
| Max Pressure PSI | 225.0 psi | 225.0 psi |
| Max Temp °F | 250.0 °F | 250.0 °F |
| Certifications | ANSI-Z21.22, CSA-4.4, NSF-372, IAPMO
| ANSI-Z21.22, CSA-4.4, NSF-372, IAPMO
|
