Specifications
Description

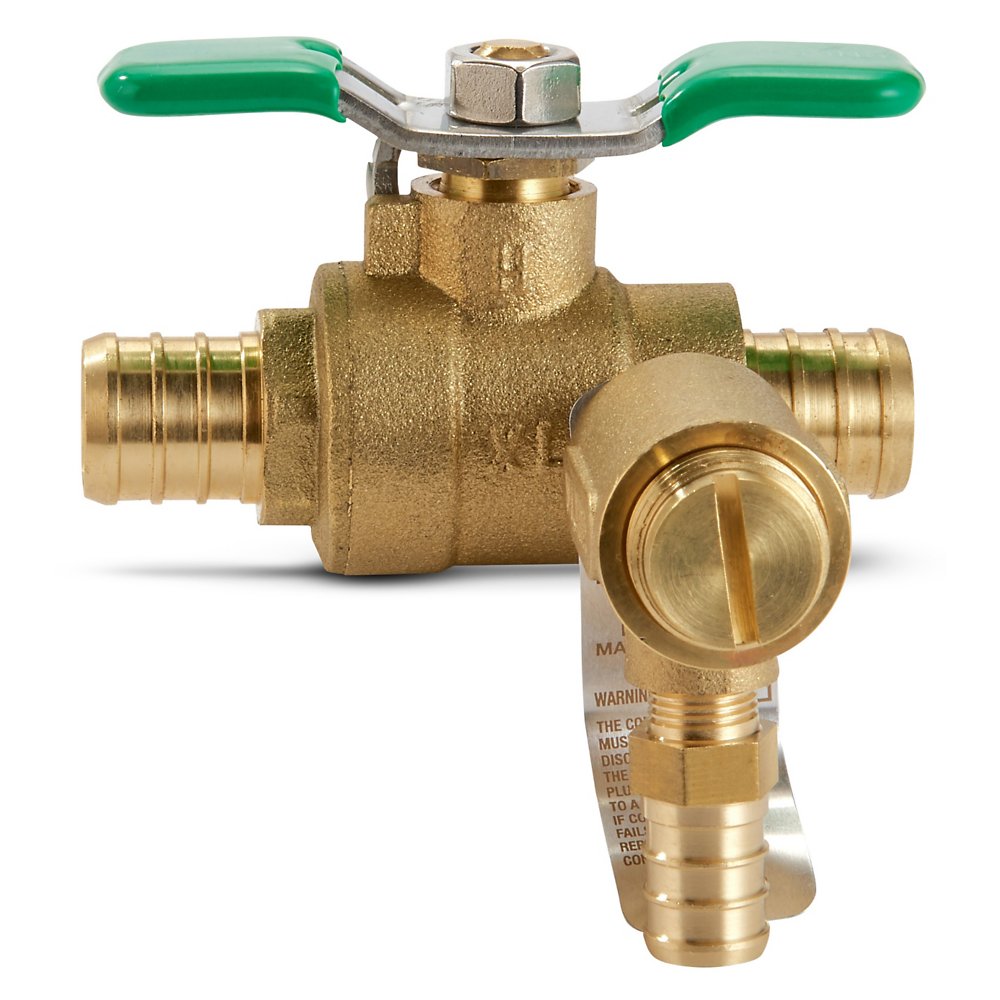

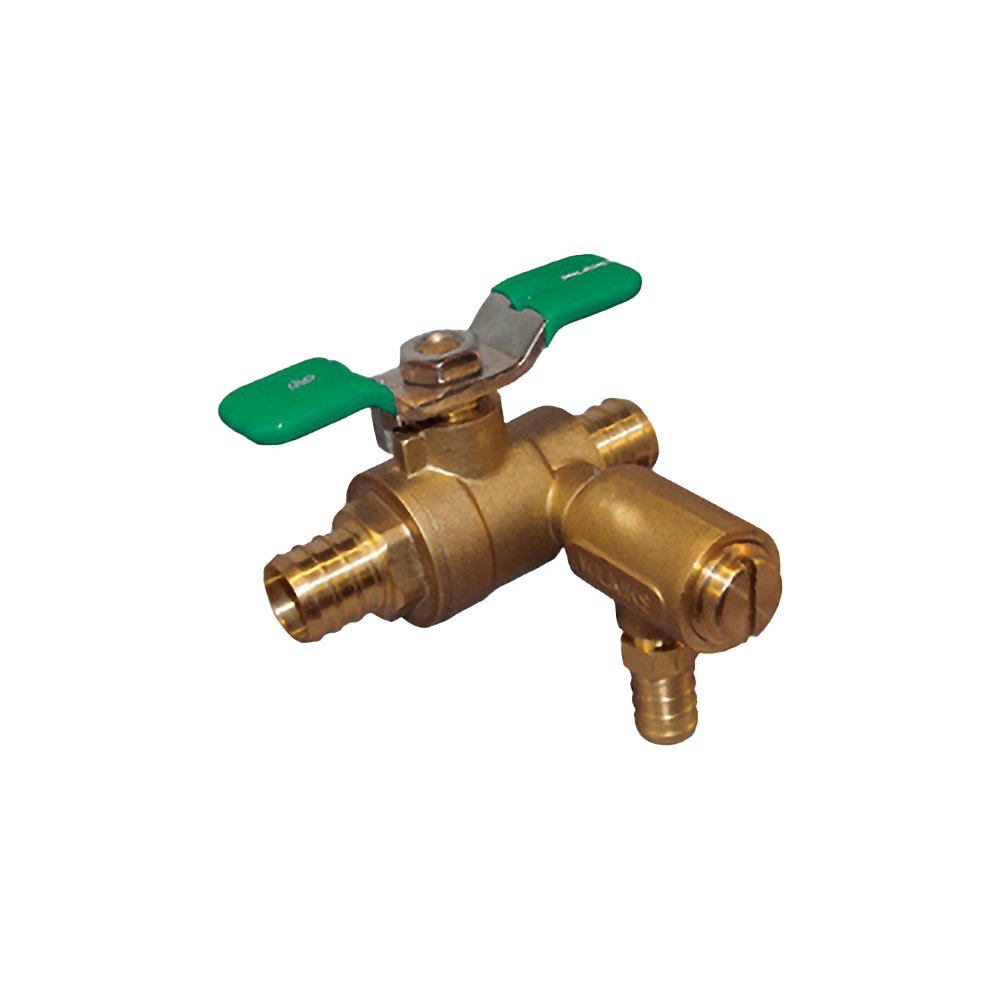

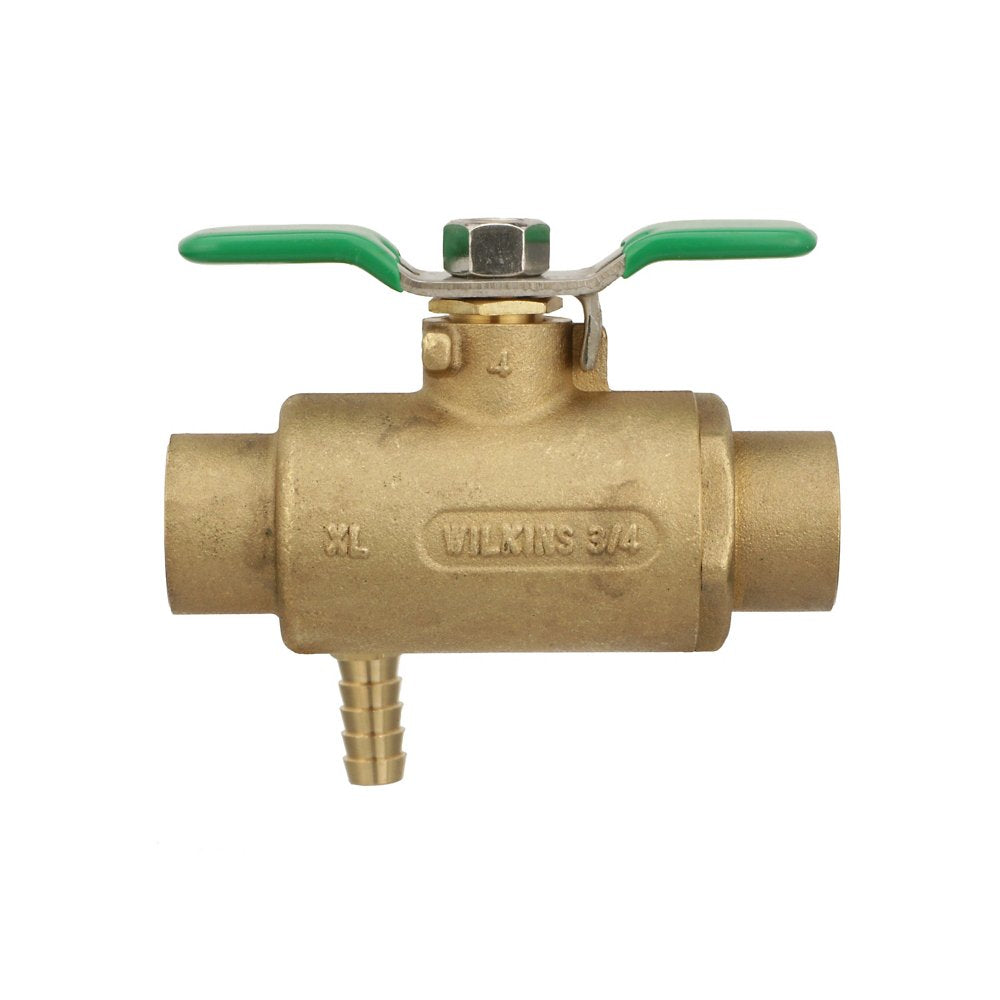

The Zurn Wilkins 34-BVECXLC-125CF is a 3/4" lead-free full-port bronze ball valve with integral thermal-expansion relief for thermal expansion control, factory set at 125 psi. It features a brass body. Rated to 400 psi and up to 180°F. This model is certified lead-free for potable-water installations.
The Wilkins BVECXL full port brass ball valve with thermal expansion relief valve will relieve excess pressure caused by thermal expansion occurring within a closed water system, removing the buildup of potentially harmful water pressure.
Features
- Water heater shut-off and thermal expansion relief
- Economical thermal expansion control
- Relief setting of 80, 100, and 125 psi
Common Questions
- What pressure is this valve set to?
- It is factory set to relieve at 125 psi. The setting is fixed and is not field-adjustable. Note the 400 psi figure in the specifications is the body's rated working pressure, not this valve's relief point - it opens at 125 psi.
- Can I use this on potable water?
- Yes - it is certified lead-free under NSF/ANSI 372, which plumbing codes require for any device in a drinking-water line.
- Is this a shutoff valve or a relief valve?
- This is a two-in-one device: a full-port bronze shutoff ball valve with a thermal-expansion relief valve built into the same body, factory set to relieve at 125 psi. The 400 psi WOG figure is the ball valve's cold-working-pressure rating, a completely different number from its relief setting.
Specifications
- Type: Ball Valve - Bronze, Full Port with Integral Thermal Expansion Control Valve
- Size: 3/4"
- Connection: Sweat
- Body Material: Brass
- Max Pressure (psi): 400
- Application: Domestic Water
- MPN: 34-BVECXLC-125CF
- Temperature: up to 180°F
- Certifications: NSF-372, IAPMO
- Lead-Free: Yes
- Relief Type: Thermal Expansion (Ball Valve Combo)
- Factory Set Pressure (psi): 125
- Application: Thermal Expansion Control
- Approved for Potable Water: Yes
- Connection Configuration: Compression
Dimensions
| Size Nominal | 3/4" | End Connection | Sweat |
Details
| Series | 34-BVECXLC-125CF | Device Type | Ball Valve - Bronze, Full Port with Integral Thermal Expansion Control Valve |
| Lead Free | Yes | Body Material | Brass |
| Application | Domestic Water | Max Pressure PSI | 400.0 psi |
| Max Temp °F | 180.0 °F | Relief Type | Thermal Expansion (Ball Valve Combo) |
| Set Pressure PSI | 125.0 psi | Application Class | Thermal Expansion Control |
| Connection Config | Compression | Potable Approved | Yes |
Certifications & Standards
| NSF-372 | IAPMO |
Compare with similar products
| Relief Type | Thermal Expansion (Ball Valve Combo)
| Thermal Expansion (Ball Valve Combo)
|
| Set Pressure PSI | 125.0 psi | 125.0 psi |
| Application Class | Thermal Expansion Control
| Thermal Expansion Control
|
| Connection Config | Compression
| Crimp PEX
|
| Potable Approved | Yes | Yes |
| Series | 34-BVECXLC-125CF
| 34-BVECXLPEX-125-PEX
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Ball Valve - Bronze, Full Port with Integral Thermal Expansion Control Valve
| Ball Valve - Bronze, Full Port with Integral Thermal Expansion Control Valve
|
| Size Nominal | 3/4"
| 3/4"
|
| Lead Free | Yes | Yes |
| End Connection | Sweat
| PEX
|
| Application | Domestic Water
| Domestic Water
|
| Max Pressure PSI | 400.0 psi | 400.0 psi |
| Max Temp °F | 180.0 °F | 180.0 °F |
| Certifications | NSF-372, IAPMO
| NSF-372, IAPMO
|
