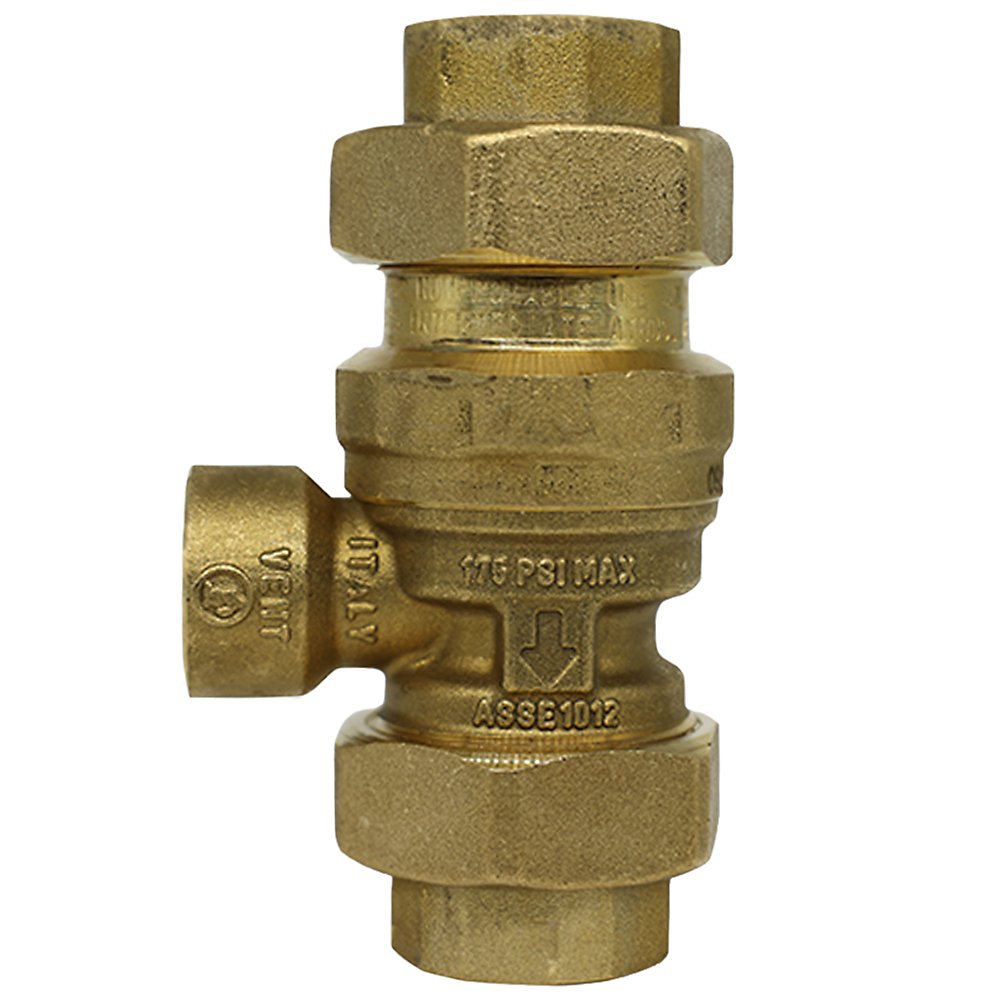

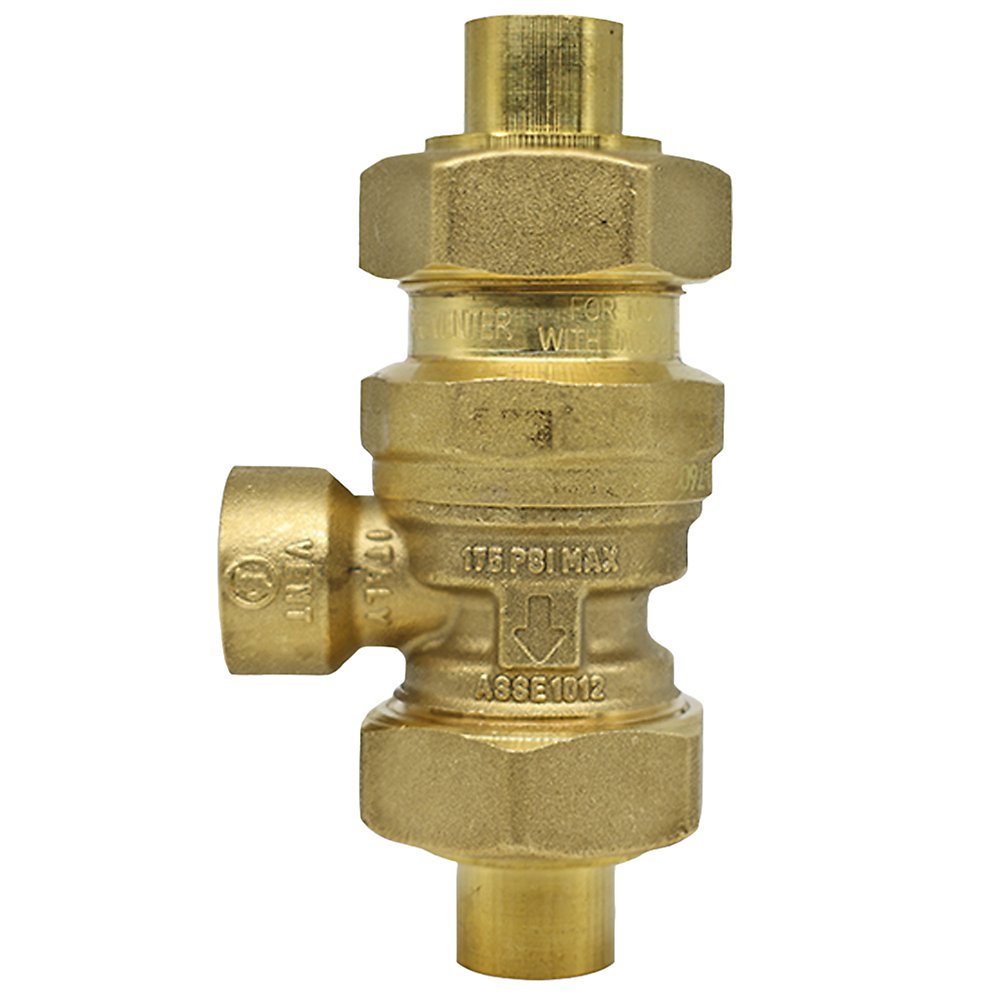

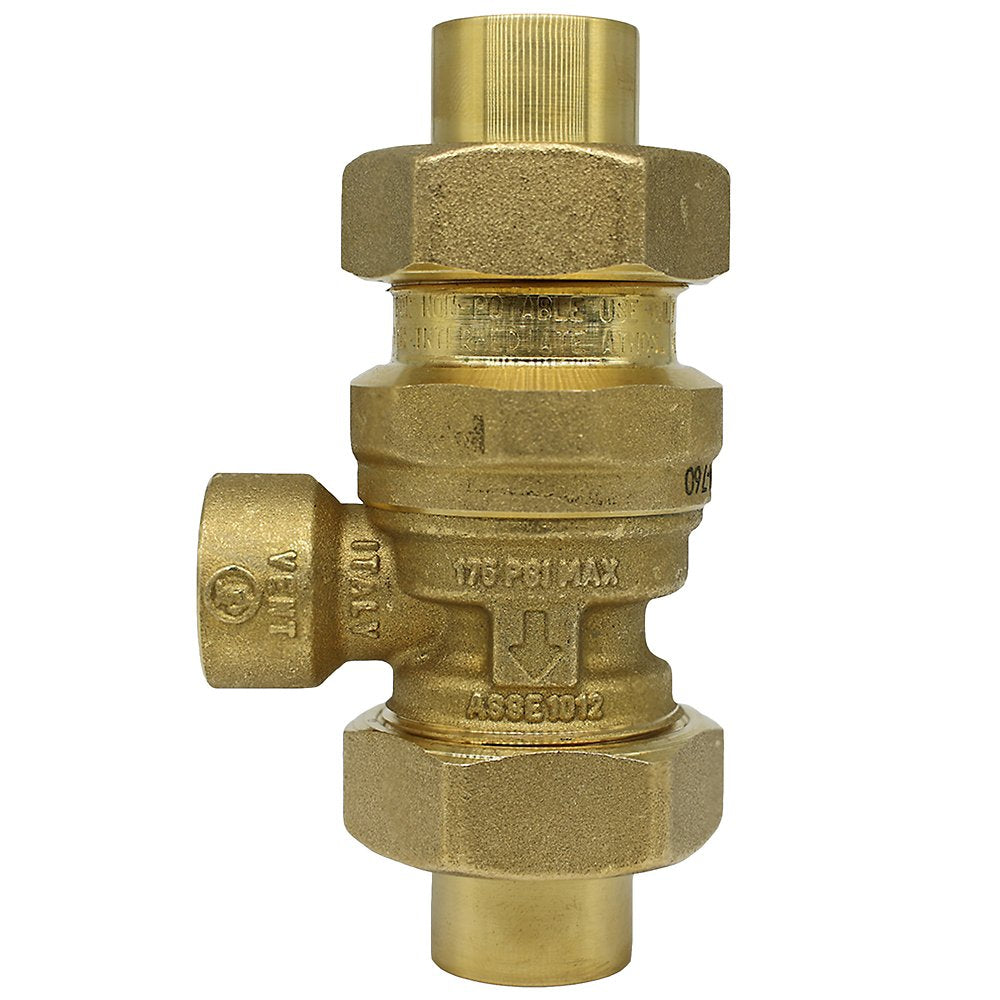

The Zurn Wilkins 34-760DRBS is a 3/4" dual check valve with FNPT connections, approved for low health hazard protection. It features a brass body. Rated to 175 psi and up to 210°F.
The 760 Dual Check Valve Backflow Preventer with Intermediate Atmospheric Vent provides low health hazard protection from backflow in both residential and commercial applications, primarily from a residential boiler or small commercial boiler. Features of this continuous pressure type backflow preventer include a threaded atmospheric vent drain for safe drainage, and a corrosion-resistant, high-quality brass body construction with an integral stainless steel strainer screen to prevent buildup of unwanted debris. Union connections are included on both ends, and are available in either FNPT or copper connections.
Features
- Brass body and stainless-steel strainer screen protect against corrosion
- Integral strainer screen ensures long-lasting prevention of debris buildup
- Threaded atmospheric vent drain allows for safe drainage
- 1-year limited warranty
Common Questions
- What hazard level is this Dual Check approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the downstream substance could be a health hazard, codes require a reduced pressure zone (RPZ) assembly or a detector assembly instead. The assembly is listed to ASSE 1012.
- Can this device be field tested?
- No. It is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.
Specifications
- Type: Dual Check Valve Backflow Preventer with Intermediate Atmospheric Vent
- Size: 3/4"
- Connection: FNPT
- Body Material: Brass
- Max Pressure (psi): 175
- Application: Domestic Water
- MPN: 34-760DRBS
- Temperature: up to 210°F
- Certifications: ASSE-1012, CSA-B64.3
- Assembly Type: Dual Check
- Hazard Protection Level: Low Health Hazard
- ASSE Standard: ASSE 1012
- USC FCCCHR Approved: No
- Field Testable: No
- Number of Test Cocks: 0
Dimensions
| Size Nominal | 3/4" | End Connection | FNPT |
Details
| Series | 34-760DRBS | Device Type | Dual Check Valve Backflow Preventer with Intermediate Atmospheric Vent |
| Body Material | Brass | Application | Domestic Water |
| Max Pressure PSI | 175.0 psi | Max Temp °F | 210.0 °F |
| Assembly Type | Dual Check | Hazard Rating | Low Health Hazard |
| ASSE Standard | ASSE 1012 | Test Cocks | 0 |
Certifications & Standards
| ASSE-1012 | CSA-B64.3 |
Compare with similar products
| Assembly Type | Dual Check
| Dual Check
|
| Hazard Rating | Low Health Hazard
| Low Health Hazard
|
| ASSE Standard | ASSE 1012
| ASSE 1012
|
| Test Cocks | 0
| 0
|
| Series | 34-760DRBS
| 760
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Dual Check Valve Backflow Preventer with Intermediate Atmospheric Vent
| Dual Check Valve Backflow Preventer with Intermediate Atmospheric Vent
|
| Size Nominal | 3/4"
| 3/4"
|
| End Connection | FNPT
| FNPT
|
| Body Material | Brass
| Brass
|
| Application | Domestic Water
| Domestic Water
|
| Max Pressure PSI | 175.0 psi | 175.0 psi |
| Max Temp °F | 210.0 °F | 210.0 °F |
| Certifications | ASSE-1012, CSA-B64.3
| ASSE-1012, CSA-B64.3
|
