Specifications
Description

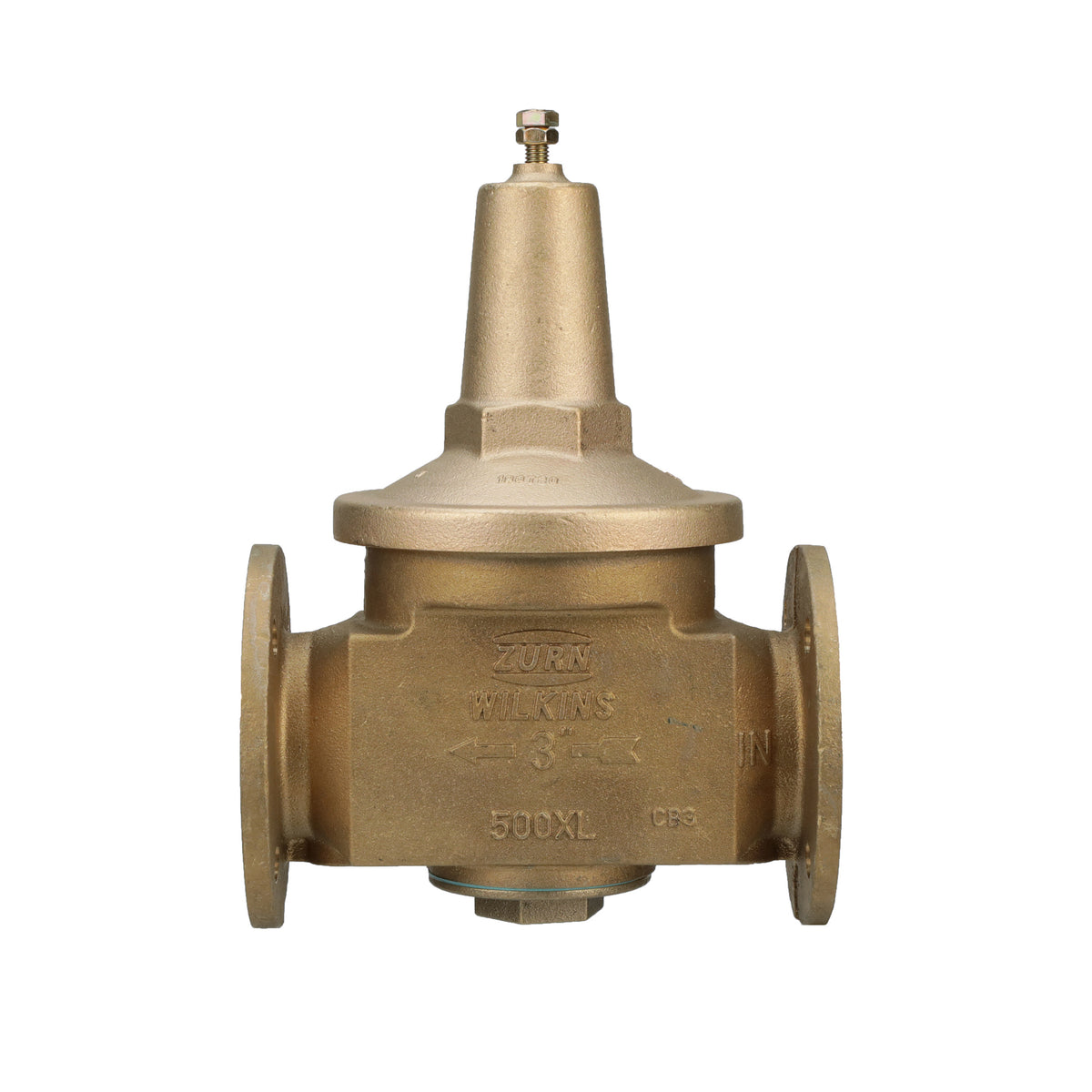

The Zurn Wilkins 3-500XLFC is a 3" lead-free pressure reducing valve with Flanged connections. It reduces inlet pressure of up to 300 psi to an adjustable 25-75 psi downstream, factory set at 50 psi. It features a lead-free bronze body. Rated to 300 psi and up to 140°F. This model is certified lead-free for potable-water installations.
High flow rates and low fall-off are the hallmarks of the Wilkins 500XLFC series. The 500XLFC is perfect for your commercial or industrial pressure reduction applications requiring flanged connections.
Features
- Equipped with 150 class flanges
- Well suited for industrial or commercial applications
- High flow rate with minimal fall-off
- Low-lead Law compliant
Common Questions
- What pressure is it set to out of the box?
- 3-500XLFC ships factory set at 50 psi. The adjustable reduced-pressure range is 25 to 75 psi, so you can dial the outlet anywhere in that band on site with the adjusting bolt - loosen the locknut, turn to raise or lower pressure, retighten and verify with a downstream gauge.
- Does it include a strainer?
- No - 3-500XLFC does not have an integral strainer (this series relies on the integral by-pass check valve alone). On dirty or older supply lines, install a separate inline strainer (Zurn Wilkins SXL/FSC) upstream to keep debris off the seat.
- Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?
- 3-500XLFC includes an integral thermal-expansion bypass that relieves excess downstream pressure back toward the supply when street pressure is lower. It is not a substitute for a properly sized expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower than the closed-system pressure.
Specifications
- Type: Pressure Reducing Valve
- Size: 3"
- Inlet Size: 3"
- Outlet Size: 3"
- Connection: Flanged
- Body Material: Lead-Free Bronze
- Max Pressure (psi): 300
- Application: Domestic Water
- MPN: 3-500XLFC
- Temperature: up to 140°F
- Certifications: ASSE-1003, IAPMO, CSA-B356, NSF-61, NSF-372
- Lead-Free: Yes
- Factory Set Pressure (psi): 50
- Adjustable Range - Min (psi): 25
- Adjustable Range - Max (psi): 75
- Thermal Expansion Bypass: Yes
- Integral Strainer: No
- Gauge: None
- Union Configuration: Flanged
- Capacity Class: High Capacity
- Regulated Media: Domestic Water
- Bell Housing: Standard
Dimensions
| Size Nominal | 3" | Inlet Size | 3" |
| Outlet Size | 3" | End Connection | Flanged |
Details
| Series | 500XLFC | Device Type | Pressure Reducing Valve |
| Lead Free | Yes | Body Material | Lead-Free Bronze |
| Application | Domestic Water | Max Pressure PSI | 300.0 psi |
| Max Temp °F | 140.0 °F | Set Pressure PSI | 50.0 psi |
| Adj Range Min PSI | 25.0 psi | Adj Range Max PSI | 75.0 psi |
| Thermal Bypass | Yes | Union Config | Flanged |
| Capacity Class | High Capacity | Regulated Media | Domestic Water |
| Bell housing type | Standard | — | — |
Certifications & Standards
| ASSE-1003 | IAPMO |
| CSA-B356 | NSF-61 |
| NSF-372 | — |
