Specifications
Description

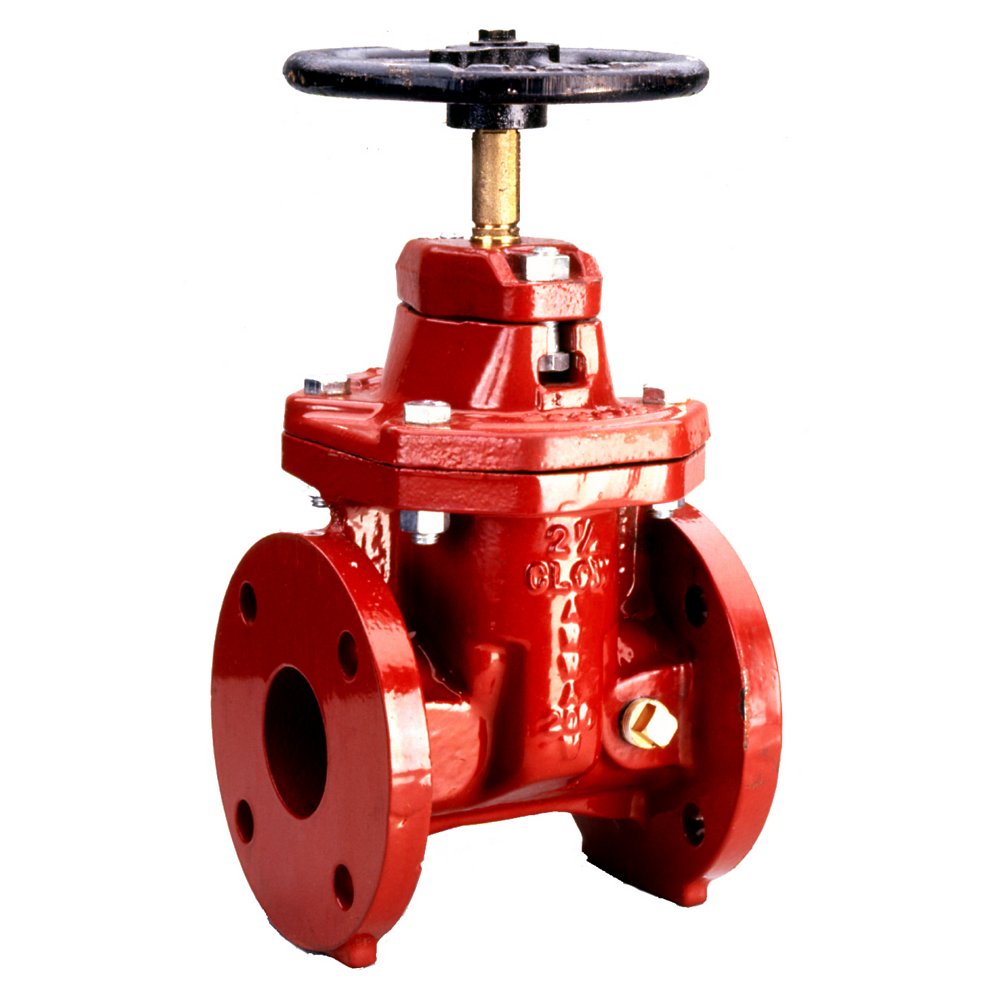

The Zurn Wilkins 212-48 is a 2-1/2" resilient-wedge gate valve with a non-rising stem (NRS), flanged end connections. It is UL Listed, C-UL Listed and FM Approved, rated 250 psi maximum working water pressure. It features a ductile iron body. Rated to 250 psi and up to 140°F. This model is certified lead-free for potable-water installations.
The 48 Gate Valve is utilized on potable water lines, irrigation systems, and waterworks connection applications. It can be used as both a stand alone product or on Wilkins Backflow Preventers, and includes a non-rising stem. The 48 resilient wedge gate valve features multiple end connections such as flanged, grooved, or flanged x grooved configurations for versatile installation. It features a maximum working water pressure of 250 psi, maximum working water temperature of 140°F, and hydrostatic test pressure of 500 psi. Its epoxy coated ductile iron body and stainless steel internals protect against corrosion.
Features
- Flanged, grooved, or flanged x grooved connection options provide versatile installation
- Maximum working water pressure of 250 psi
- Stand alone or Backflow Preventer use for application convenience
- Ductile iron body and stainless steel internals resist corrosion
- Low-lead law compliant
- AWWA Compliant C515, C-550
- IAPMO® Listed
Common Questions
- Is this UL/FM listed for fire service?
- Yes. Every Model 48 gate valve -- NRS or OS&Y -- is UL Listed, C-UL Listed and FM Approved, and meets AWWA C515 / C-550. It can be identified as a genuine Zurn Wilkins valve by the raised "WILKINS" lettering cast into the body.
- Rising or non-rising stem?
- This is an NRS (non-rising stem) valve -- the stem turns but does not travel, so it fits tighter clearances and buried/vault service, at the cost of no visual position indication.
Specifications
- Type: Resilient Wedge Gate Valve
- Size: 2-1/2"
- Connection: Flanged
- Body Material: Ductile Iron
- Pressure Class: Class 150
- Max Pressure (psi): 250
- MPN: 212-48
- Temperature: up to 140°F
- Certifications: UL, C-UL, FM, NSF-372
- Lead-Free: Yes
- Valve Style: Gate
- Stem Type: Non-Rising (NRS)
- Wedge / Disc Type: Resilient
- UL/FM Listed: Yes
- Pressure Rating: 250 psi
- Operator / Handle: Handwheel
- Bonnet Style: Bolted
- Standards: AWWA C515, C-550 Compliant
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| 212-48 | 612052051741 | Download |
Dimensions
| Size Nominal | 2-1/2" | End Connection | Flanged |
| Pressure Class | Class 150 | — | — |
Details
| Series | 48 | Device Type | Resilient Wedge Gate Valve |
| Lead Free | Yes | Body Material | Ductile Iron |
| Max Pressure PSI | 250.0 psi | Max Temp °F | 140.0 °F |
| Valve Style | Gate | Stem Type | Non-Rising (NRS) |
| Wedge Type | Resilient | UL FM Listed | Yes |
| WOG WSP Rating | 250 psi | Operator | Handwheel |
| Bonnet Type | Bolted | Standards | AWWA C515, C-550 Compliant |
Certifications & Standards
| UL | C-UL |
| FM | NSF-372 |
