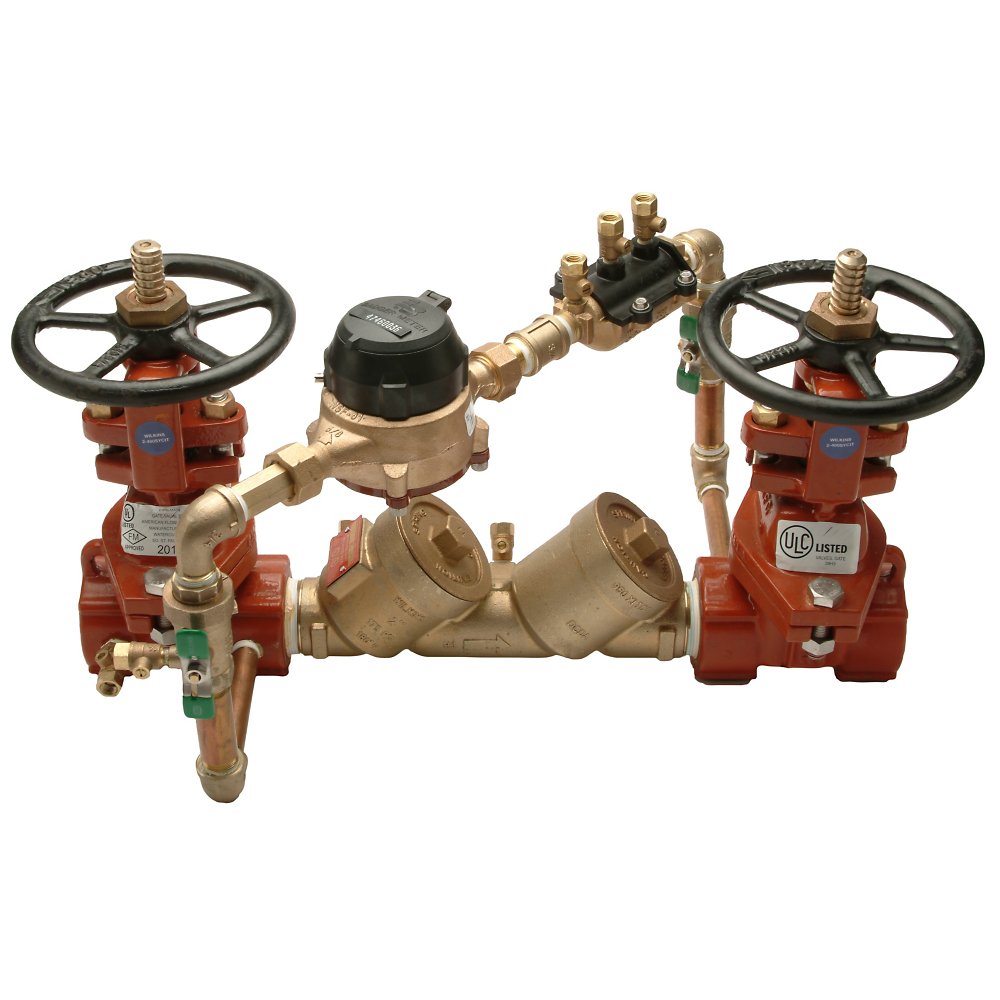

Zurn 2-950XLTDA Double Check Detector Backflow Preventer, Bronze, FNPT

The Zurn Wilkins 2-950XLTDA is a 2" double check detector assembly (DCDA) with FNPT connections, approved for low health hazard protection. It features a bronze body. Rated to 175 psi and up to 180°F.

The 950XLTDA Double Check Detector Assembly is utilized in low health hazard, fire protection applications for protection against both backsiphonage and backpressure of polluted water into the potable water supply. It features a metered bypass to detect leaks and any unauthorized water use. The 975XLTDA is assembled with OS&Y shutoff valves, and can be installed vertically or horizontally for added versatility. Its cast bronze body and 300 series stainless steel internals are corrosion-resistant, and it features a maximum working water pressure of 175 psi and water temperature of 180°F.

Features

• Vertical and horizontal orientation reduces installation time
• Metered bypass detects leaks and unauthorized water use for reduced maintenance and repair costs
• Ensures protection from polluted water in fire protection applications
• Bronze body and stainless steel internals resist corrosion
• Equipped with OS&Y shutoff valves
• UL® Classified
• C-UL® Classified
• ASSE listed 1048

Common Questions

What hazard level is this DCDA approved for?

It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the downstream substance could be a health hazard, codes require a reduced pressure zone (RPZ) assembly or a detector assembly instead. The assembly is listed to ASSE 1048.

Does this assembly have to be tested every year?

Yes. This is a field-testable assembly. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.

Is this suitable for a fire sprinkler line?

Yes. Detector assemblies are built for fire sprinkler service: the metered bypass registers the low flows that reveal a leak or an unauthorized tap on the fire line. This model is UL Classified and C-UL Classified.

How does this have to be installed?

It is approved for either horizontal or vertical installation, with the flow arrow on the body pointing in the direction of flow.

Specifications

• Type: Double Check Detector Backflow Preventer
• Size: 2"
• Connection: FNPT
• Body Material: Bronze
• Max Pressure (psi): 175
• Application: Fire Protection
• Backflow Protection: Both
• MPN: 2-950XLTDA
• Temperature: up to 180°F
• Certifications: ASSE-1048, C-UL, UL, USC
• Assembly Type: DCDA
• Hazard Protection Level: Low Health Hazard
• ASSE Standard: ASSE 1048
• USC FCCCHR Approved: Yes
• Fire Protection Listing: UL Classified;C-UL Classified
• Field Testable: Yes
• Approved Orientation: Horizontal & Vertical
