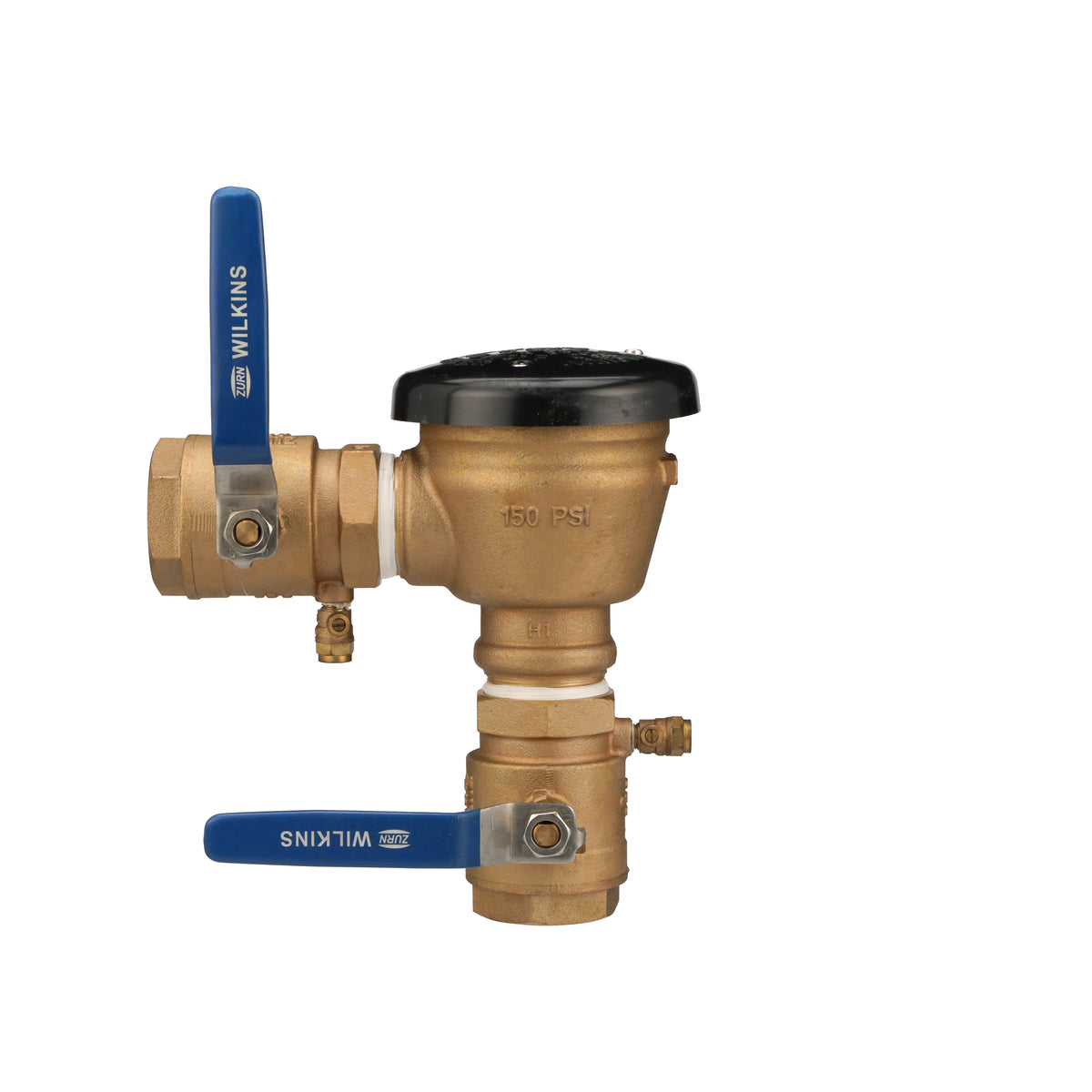

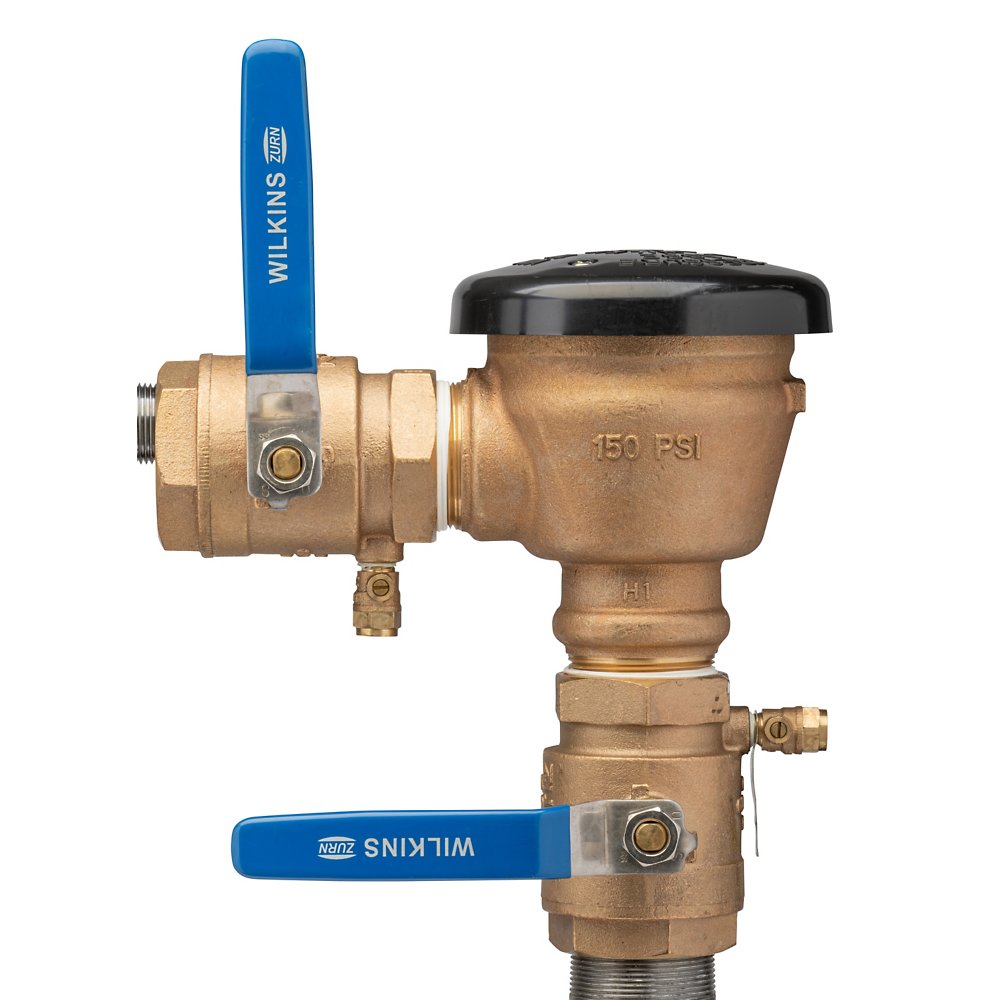

Zurn 2-720A Pressure Vacuum Breaker Assembly (1/2" - 2"), Bronze, FNPT

The Zurn Wilkins 2-720A is a 2" pressure vacuum breaker with FNPT connections, approved for high health hazard protection. It features a bronze body. Rated to 150 psi and up to 110°F.

Our Pressure Vacuum Breaker protects against backsiphonage in high health hazard, non-potable residential and commercial irrigation applications. The 720A assembly includes an approved check valve, vacuum relief, two test cocks, and inlet and outlet full port resilient seated shut-off valves. This pressure vacuum breaker features a maximum pressure of 150 psi and a temperature range of 33°F to 110°F. The PVB’s corrosion-resistant internal parts and all bronze bonnet and body construction provides added strength and protection against the elements and light freezes. The test cocks located on the center line of valve allow for installation versatility. Upgrade to the Wilkins 720A Pressure Vacuum Breaker today and experience the reliability it brings to your irrigation system.

Features

• Serial number visible in any installed orientation reduces labor time
• Test cocks on center line of valve allow for installation versatility
• Consistent, reliable performance provides world class backsiphonage protection
• Construction offers corrosion-resistance, strength and winterization protection
• ASSE, IAPMO, CSA listed
• Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

Common Questions

What hazard level is this PVB approved for?

It is rated for high health hazard (toxic) cross-connections, but only against backsiphonage. The assembly is listed to ASSE 1020.

Does this assembly have to be tested every year?

Yes. This is a field-testable assembly. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.

Will this protect against backpressure?

No. A pressure vacuum breaker protects against backsiphonage only. It will not stop backflow caused by backpressure -- a downstream pump, elevated piping or a boiler -- which requires a double check or RPZ assembly instead.

How does this have to be installed?

It must be installed vertically (upright), above the highest downstream outlet, per its installation instructions and ASSE listing.

Specifications

• Type: Pressure Vacuum Breaker Assembly (1/2" - 2")
• Size: 2"
• Connection: FNPT
• Body Material: Bronze
• Max Pressure (psi): 150
• Application: Irrigation
• Backflow Protection: Backsiphonage
• MPN: 2-720A
• Temperature: up to 110°F
• Certifications: ASSE-1020, CSA-B64.1.2, USC, IAPMO
• Assembly Type: PVB
• Hazard Protection Level: High Health Hazard
• ASSE Standard: ASSE 1020
• USC FCCCHR Approved: Yes
• Field Testable: Yes
• Approved Orientation: Vertical
