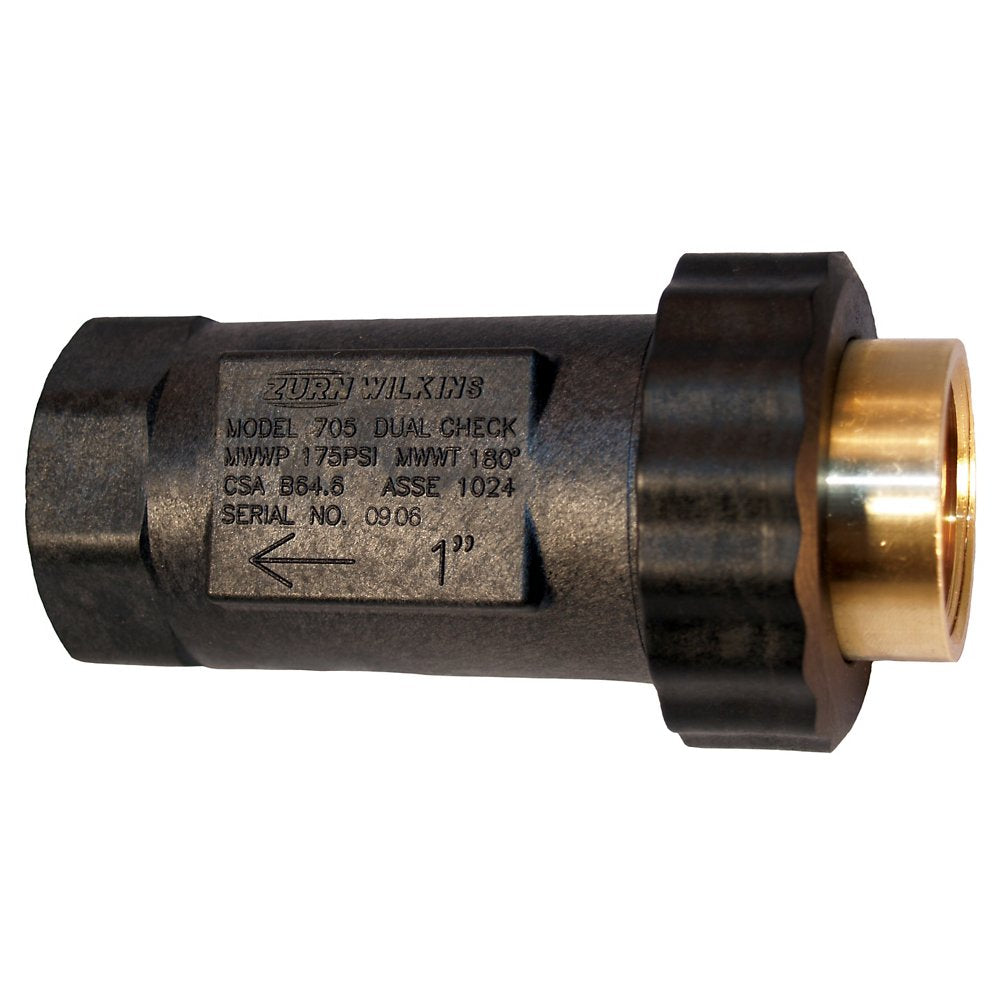

Zurn 1UFX1F-705 Lead-Free Dual Check Valve, FNPT

The Zurn Wilkins 1UFX1F-705 is a lead-free dual check valve with FNPT connections, approved for low health hazard protection. It is rated to 175 psi and up to 180°F. This model is certified lead-free for potable-water installations.

The Wilkins 705 composite Dual Check Valve Assembly is available in many end configurations for easy installation on any low hazard piping system.

Features

• Lead-free composite body construction
• Protects against backsiphonage and backpressure
• Single union standard on inlet of all models
• May be installed vertically or horizontally

Common Questions

What hazard level is this Dual Check approved for?

It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the downstream substance could be a health hazard, codes require a reduced pressure zone (RPZ) assembly or a detector assembly instead.

Is this model legal for potable water?

Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.

Can this device be field tested?

No. It is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.

Is this listed for fire protection service?

Yes -- it is FM Approved, the listings normally required for a backflow device on a fire sprinkler supply.

Specifications

• Type: Dual Check Valve
• Connection: FNPT
• Max Pressure (psi): 175
• Application: Domestic Water
• MPN: 1UFX1F-705
• Temperature: up to 180°F
• Certifications: CSA-B64.6, FM, NSF-61, NSF-372
• Lead-Free: Yes
• Assembly Type: Dual Check
• Hazard Protection Level: Low Health Hazard
• USC FCCCHR Approved: No
• Fire Protection Listing: FM Approved
• Field Testable: No
• Number of Test Cocks: 0
