Specifications
Description

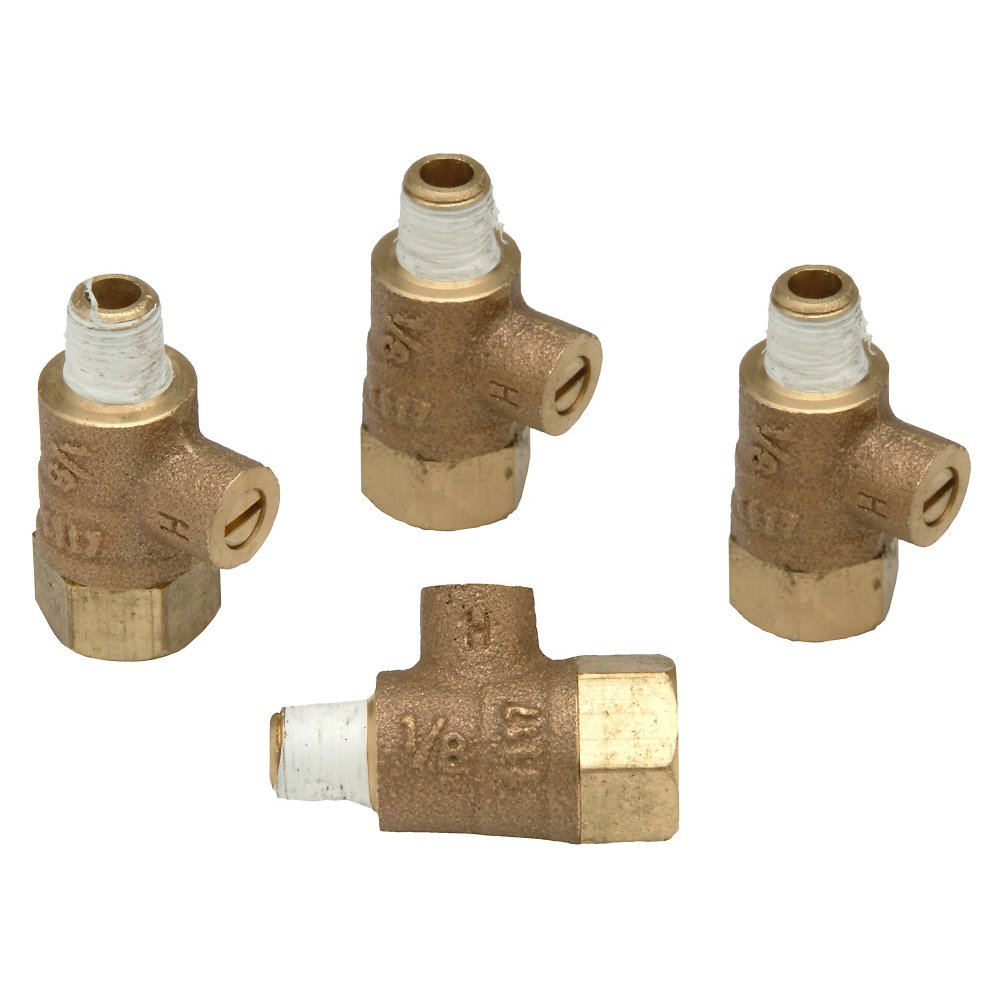

The Zurn Wilkins 18-860XL is a test cock for 1/8". This model is certified lead-free for potable-water installations.
The 860XL Resilient Seated Ball Type Test Cock is utilized as a test port for attaching a differential pressure gauge on backflow preventers. The 860XL comes standard with a male NPT inlet and female NPT outlet connection, with an optional SAE flare fitting that allows for fast, easy attachment of test kit hoses. It is operable with a screwdriver slot, and the Model 860XLFT also includes a threaded dust cover for added protection against fouling caused by unwanted insects, dirt, and debris. Available with 1/8” x 1/4” and 1/4” x 1/4” quarter turn test cocks, the 860XL features a maximum pressure of 300 psi WOG, and a maximum temperature of 180°F.
Features
- Operable with a screwdriver slot for easy repairs and maintenance
- Threaded dust cover protects against fouling from debris for low lifecycle costs
- Male NPT inlet and female NPT outlet connection included for easy test kit hose attachment
- 1/8” x 1/4” and 1/4” x 1/4” quarter turn test cocks available for added convenience
- Low-lead law compliant
- Certified to NSF/ANSI 372 by IAPMO R&T
Common Questions
- Will this fit my valve?
- The 18-860XL is sized for 1/8". Confirm your valve size before ordering.
Specifications
- Type: Resilient Seated Ball Type Test Cock
- Size: 1/8"
- MPN: 18-860XL
- Lead-Free: Yes
- Accessory Type: Test Cock
- Fits Size: 1/8"
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| 18-860XL | 612052077895 | Download |
Dimensions
| Size Nominal | 1/8" | — | — |
Details
| Series | 860XL | Device Type | Resilient Seated Ball Type Test Cock |
| Lead Free | Yes | Accessory Type | Test Cock |
| Compatible Size | 1/8" | — | — |
