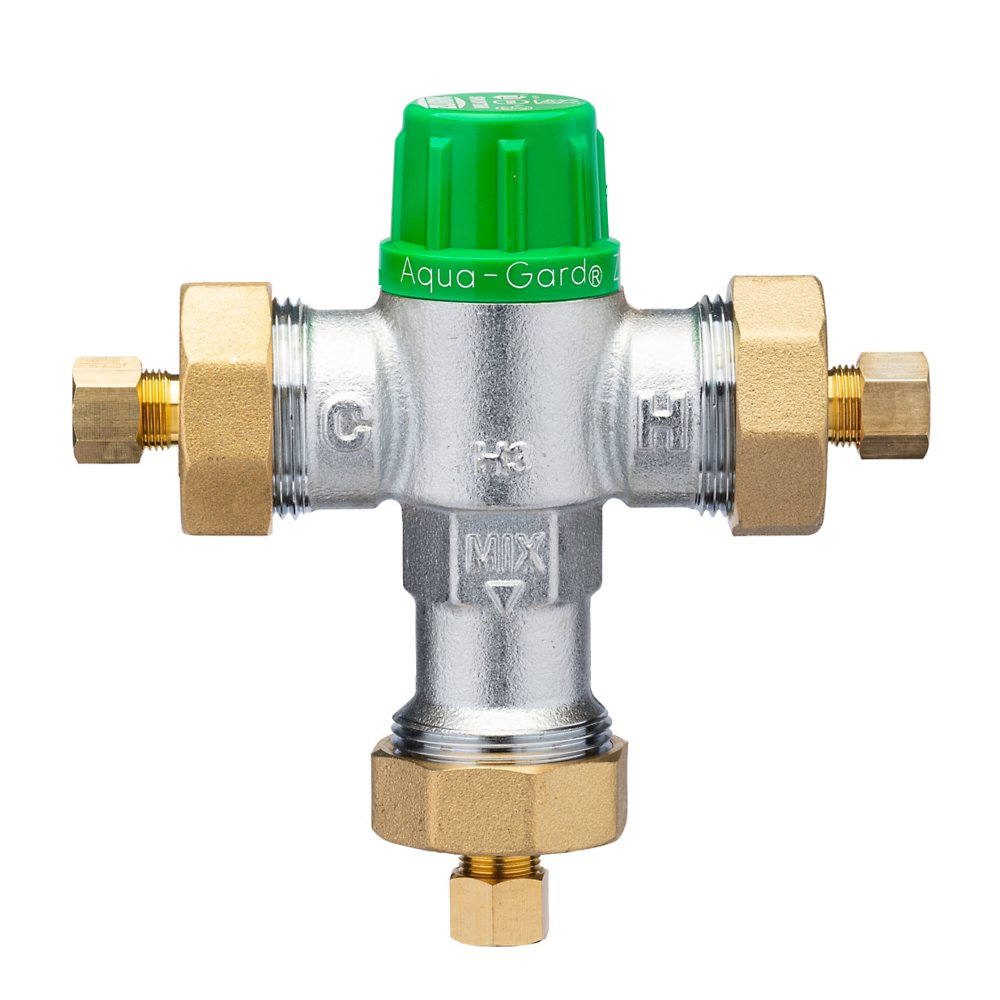

The Zurn Wilkins 12-ZW1070XLCPVC is a 1/2" lead-free point-of-use thermostatic mixing valve with CPVC connections. It blends hot and cold water to a field-set outlet temperature of 95°F to 115°F. It is listed to ASSE-1070. It features a lead-free bronze body. Rated to 125 psi. This model is certified lead-free for potable-water installations.
The Aqua-Gard® ZW1070XL Thermostatic Mixing Valve is designed to be installed at the point of use (residential and most light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.
Features
- Designed for installation at the point of use
- Suitable for multiple fixtures
- Low-lead law compliant
Common Questions
- Can I install this at a lavatory or sink - is it ASSE 1070 listed?
- Yes. It is listed to ASSE 1070, the point-of-use scald-protection standard, so it is legal to install serving a lavatory, sink or similar fixture. Its outlet adjusts from 95°F to 115°F.
- Does the hot and cold supply pressure matter?
- Yes - the maximum allowed pressure differential between the hot and cold inlets is 15 psi. A bigger imbalance than that is a real install-failure mode: the valve cannot hold its set temperature if one side is starved relative to the other.
- Does it have integral checks?
- Yes. Check valves and strainer screens are built into the hot and cold inlets to stop cross-flow between the supplies and keep debris off the thermostat.
- What is the hottest water this can accept on the hot side?
- Up to 195°F. The valve blends it down to the safe outlet range regardless of how hot the supply runs, within its rated pressure and flow.
Specifications
- Type: Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: CPVC
- Body Material: Lead-Free Bronze
- Max Pressure (psi): 125
- Application: Domestic Water
- MPN: 12-ZW1070XLCPVC
- Certifications: ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
- Lead-Free: Yes
- ASSE Listing: ASSE-1070
- Install Point: Point of Use
- Outlet Temp — Min (°F): 95
- Outlet Temp — Max (°F): 115
- Max Hot Inlet Temp (°F): 195
- Minimum Controllable Flow (gpm): 0.25
- Maximum Flow (gpm): 10.0
- Integral Checks & Filter Screens: Yes
- Max Hot/Cold Pressure Differential (psi): 15
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | CPVC |
Details
| Series | 12-ZW1070XLCPVC | Device Type | Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070) |
| Lead Free | Yes | Body Material | Lead-Free Bronze |
| Application | Domestic Water | Max Pressure PSI | 125.0 psi |
| ASSE Listing | ASSE-1070 | Install Point | Point of Use |
| Outlet Temp Min °F | 95.0 °F | Outlet Temp Max °F | 115.0 °F |
| Flow Min GPM | 0.25 GPM | Flow Max GPM | 10.0 GPM |
| Integral Checks | Yes | Inlet Hot Max °F | 195.0 °F |
Certifications & Standards
| ASSE-1070 | IAPMO |
| CSA-B125.70 | NSF/ANSI/CAN 61-9 Q≤1 |
Compare with similar products
| ASSE Listing | ASSE-1070
| ASSE-1070
| ASSE-1070
| ASSE-1070
| ASSE-1070
| ASSE-1070
|
| Install Point | Point of Use
| Point of Use
| Point of Use
| Point of Use
| Point of Use
| Point of Use
|
| Outlet Temp Min °F | 95.0 °F | 95.0 °F | 95.0 °F | 95.0 °F | 95.0 °F | 95.0 °F |
| Outlet Temp Max °F | 115.0 °F | 115.0 °F | 115.0 °F | 115.0 °F | 115.0 °F | 115.0 °F |
| Flow Min GPM | 0.25 GPM | 0.25 GPM | 0.25 GPM | 0.25 GPM | 0.25 GPM | 0.25 GPM |
| Flow Max GPM | 10.0 GPM | 10.0 GPM | 10.0 GPM | 10.0 GPM | 10.0 GPM | 10.0 GPM |
| Integral Checks | Yes | Yes | Yes | Yes | Yes | Yes |
| Inlet Hot Max °F | 195.0 °F | 195.0 °F | 195.0 °F | 195.0 °F | 195.0 °F | 195.0 °F |
| Series | 12-ZW1070XLCPVC
| ZW1070XL
| 34-ZW1070XLC
| ZW1070XL
| 12-ZW1070XLPEX
| ZW1070XL
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
| Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
| Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
| Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
| Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
| Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
|
| Size Nominal | 1/2"
| — | 3/4"
| 1"
| 1/2"
| 1/2"
|
| Inlet Size | 1/2"
| — | 3/4"
| 1"
| 1/2"
| 1/2"
|
| Outlet Size | 1/2"
| — | 3/4"
| 1"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | CPVC
| FNPT
| Sweat
| Sweat
| PEX
| FNPT
|
| Body Material | Lead-Free Bronze
| Lead-Free Bronze
| Lead-Free Bronze
| Lead-Free Bronze
| Lead-Free Bronze
| Lead-Free Bronze
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 125.0 psi | 125.0 psi | 125.0 psi | 125.0 psi | 125.0 psi | 125.0 psi |
| Certifications | ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
| ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
| ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
| ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
| ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
| ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
|
