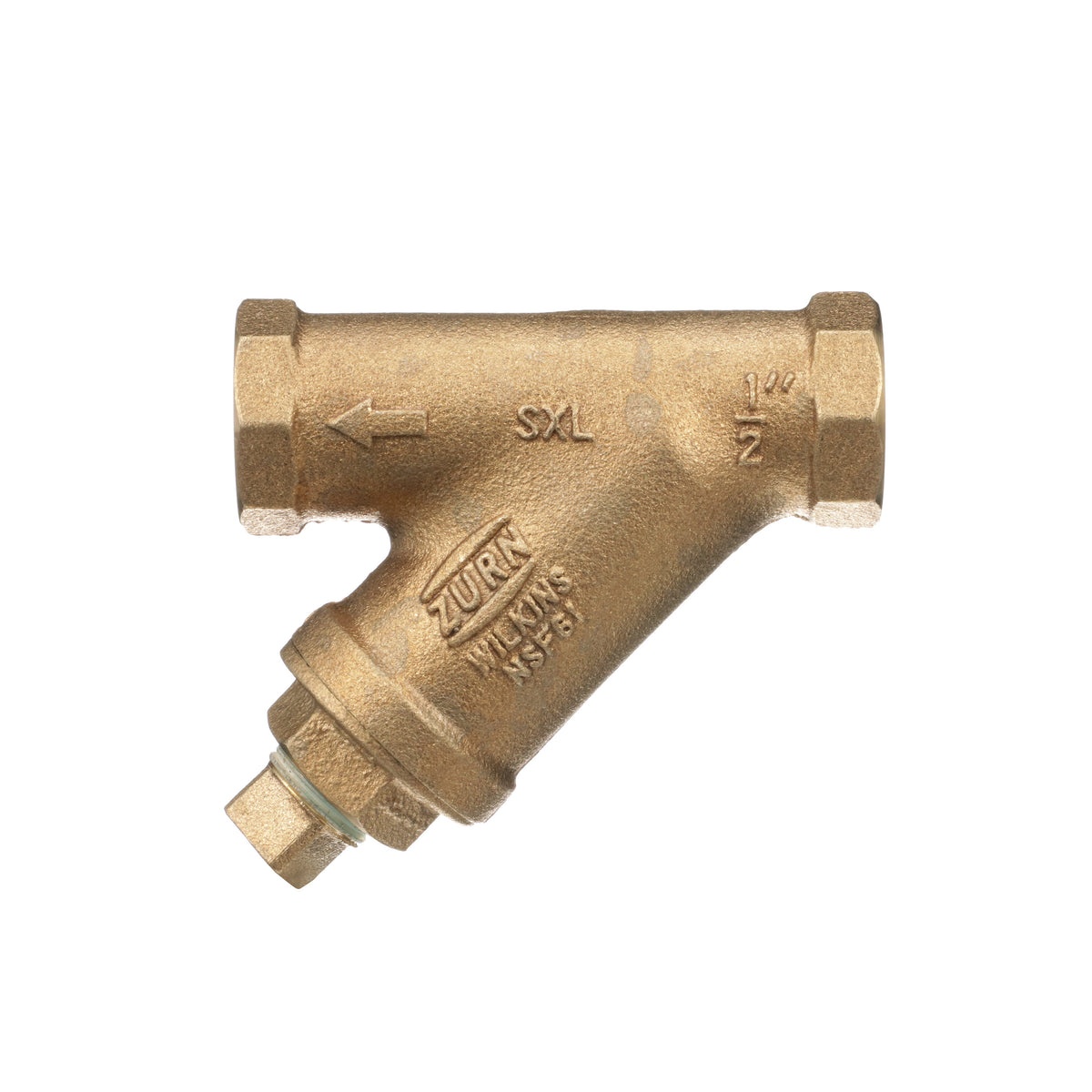

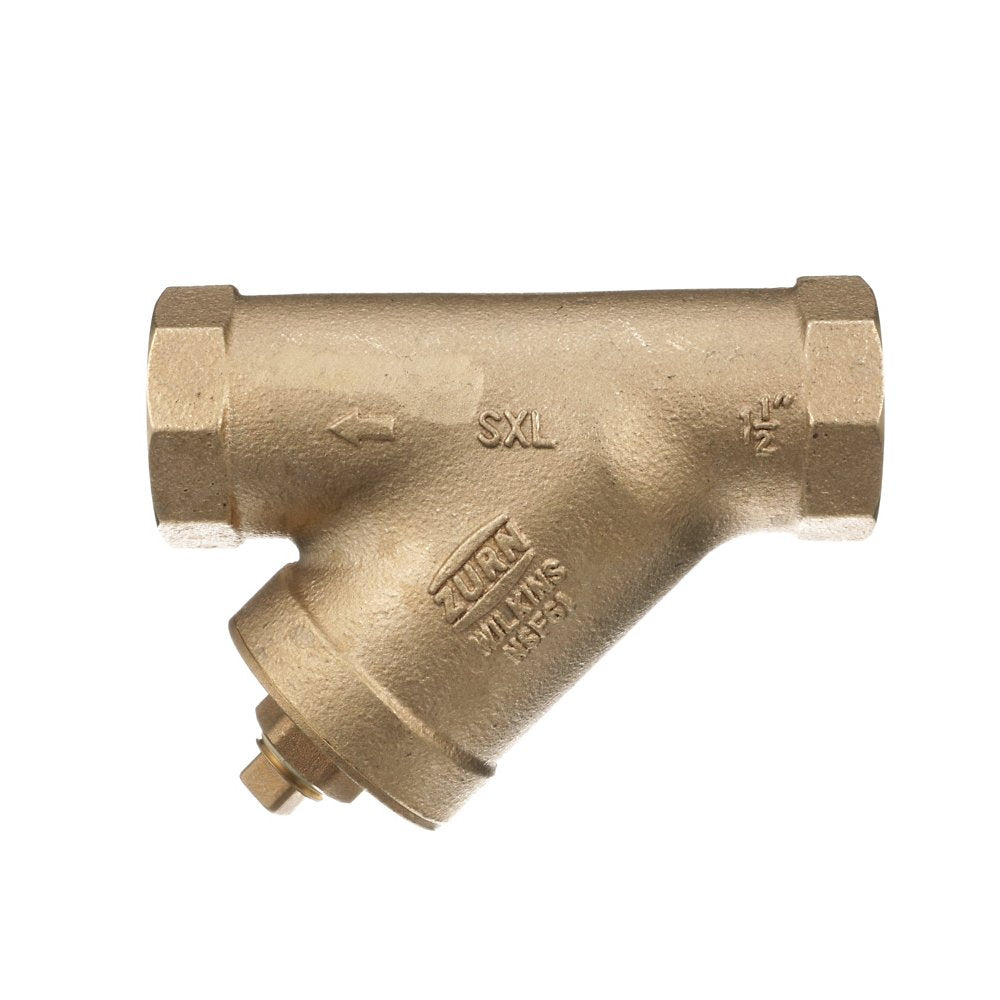

Zurn 12-SXL 1/2" Lead-Free Wye Strainer - Cast Bronze, NPT

The Zurn Wilkins 12-SXL is a 1/2" lead-free bronze wye strainer with NPT connections that removes pipeline debris and particulates to protect downstream equipment. It ships with a 20 mesh stainless steel screen. It features a bronze body and a buna nitrile seat. Rated to 300 psi and up to 180°F. This model is certified lead-free for potable-water installations.

The SXL Cast Bronze Wye Type Strainer is recommended for a variety of water service lines, including residential and commercial irrigation, swimming pools, and cooling tower water. Designed to protect fragile, delicate equipment like backflow preventers and regulators, the SXL filters sediment that often causes premature failure. The SXL comes standard with a high quality 20 mesh stainless steel screen designed to catch debris without buildup, can withstand a temperature rating of 180°F and pressure rating of 300 psi WOG. It is available in a variety of popular sizes with optional copper sweat connections.

Features

• Strainer screen reduces maintenance and premature failure
• Design ensures longer life for backflow preventers and regulators
• Wye type strainer ideal for domestic and commercial water applications
• Quality integral stainless steel strainer screen holds up over time and resists corrosion
• Low-lead law compliant
• Meets the requirements of NSF/ANSI 61

Common Questions

What mesh screen does it come with?

12-SXL ships with a fixed 20 mesh 300 series stainless steel screen - this body does not offer alternate mesh options.

Does it have a blowoff port?

Yes. The retainer cap is tapped for a blowoff/drain connection with a brass closure plug supplied, so accumulated sediment can be flushed without removing the screen.

Specifications

• Type: Wye Strainer - Cast Bronze
• Size: 1/2"
• Connection: NPT
• Body Material: Bronze
• Cap Seal / Gasket Material: Buna Nitrile
• Max Pressure (psi): 300
• Application: Domestic Water
• MPN: 12-SXL
• Temperature: up to 180°F
• Certifications: NSF-61
• Lead-Free: Yes
• Screen Type: Mesh
• Screen Mesh: 20
• Screen Material: 300 Series Stainless Steel
• Body Coating: None
• Blowoff / Drain Tapping: Yes
• Body Pattern: Y
