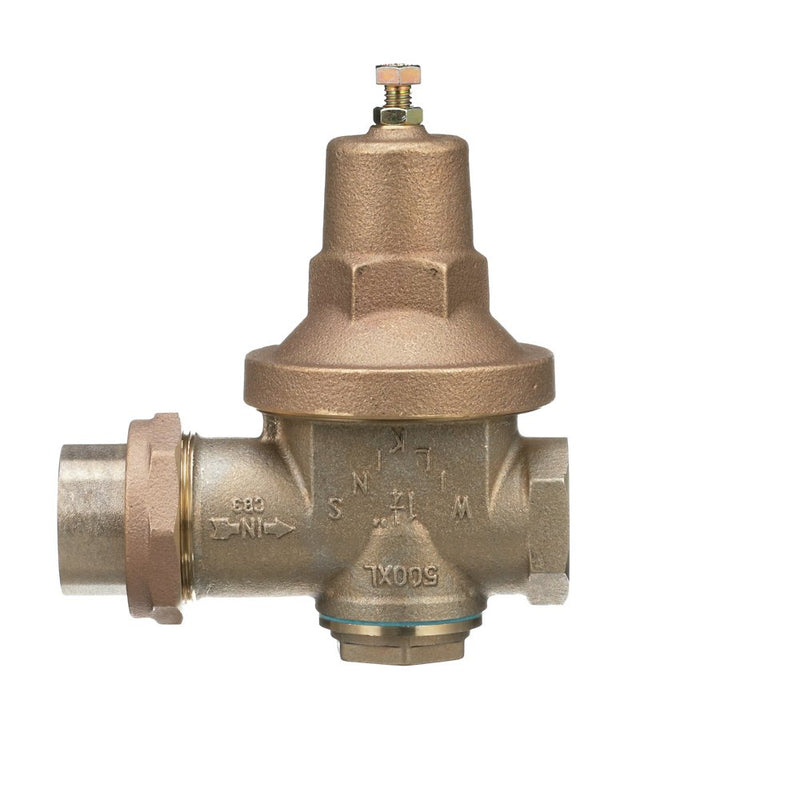

The Zurn Wilkins 114-500XL is a 1-1/4" lead-free pressure reducing valve with single union FNPT connections. It reduces inlet pressure of up to 300 psi to an adjustable 25-75 psi downstream, factory set at 50 psi. It features a lead-free bronze body. Rated to 300 psi and up to 140°F. This model is certified lead-free for potable-water installations.
High flow rates and low fall-off are the hallmarks of the Wilkins 500XL series. The 500XL is perfect for your commercial or industrial pressure reduction applications. Performance Leading, Next Generation Model Now Available: 500XL3
Features
- Short lay length and compact design allow it to install in tight spaces
- High-flow capacity suits commercial or industrial pressure reduction applications
- Highly durable, threaded bell resists corrosion and provides easy access to cartridge internals
- IAPMO® Listed
- CSA® Certified
- City of Los Angeles Approved
Common Questions
- What pressure is it set to out of the box?
- 114-500XL ships factory set at 50 psi. The adjustable reduced-pressure range is 25 to 75 psi, so you can dial the outlet anywhere in that band on site with the adjusting bolt - loosen the locknut, turn to raise or lower pressure, retighten and verify with a downstream gauge.
- Does it include a strainer?
- No - 114-500XL does not have an integral strainer (this series relies on the integral by-pass check valve alone). On dirty or older supply lines, install a separate inline strainer (Zurn Wilkins SXL/FSC) upstream to keep debris off the seat.
- Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?
- 114-500XL includes an integral thermal-expansion bypass that relieves excess downstream pressure back toward the supply when street pressure is lower. It is not a substitute for a properly sized expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower than the closed-system pressure.
Specifications
-
Type: High Capacity Commercial Grade Water Pressure Reducing Valve
-
Size: 1-1/4"
-
Inlet Size: 1-1/4"
-
Outlet Size: 1-1/4"
-
Connection: FNPT
-
Body Material: Lead-Free Bronze
-
Max Pressure (psi): 300
-
Application: Domestic Water
-
MPN: 114-500XL
-
Temperature: up to 140°F
-
Certifications: ASSE-1003, IAPMO, CSA-B356, NSF-61, NSF-372
-
Lead-Free: Yes
-
Factory Set Pressure (psi): 50
-
Adjustable Range - Min (psi): 25
-
Adjustable Range - Max (psi): 75
-
Thermal Expansion Bypass: Yes
-
Integral Strainer: No
-
Gauge: None
-
Union Configuration: Single Union
-
Capacity Class: High Capacity
-
Regulated Media: Domestic Water
-
Bell Housing: Standard
