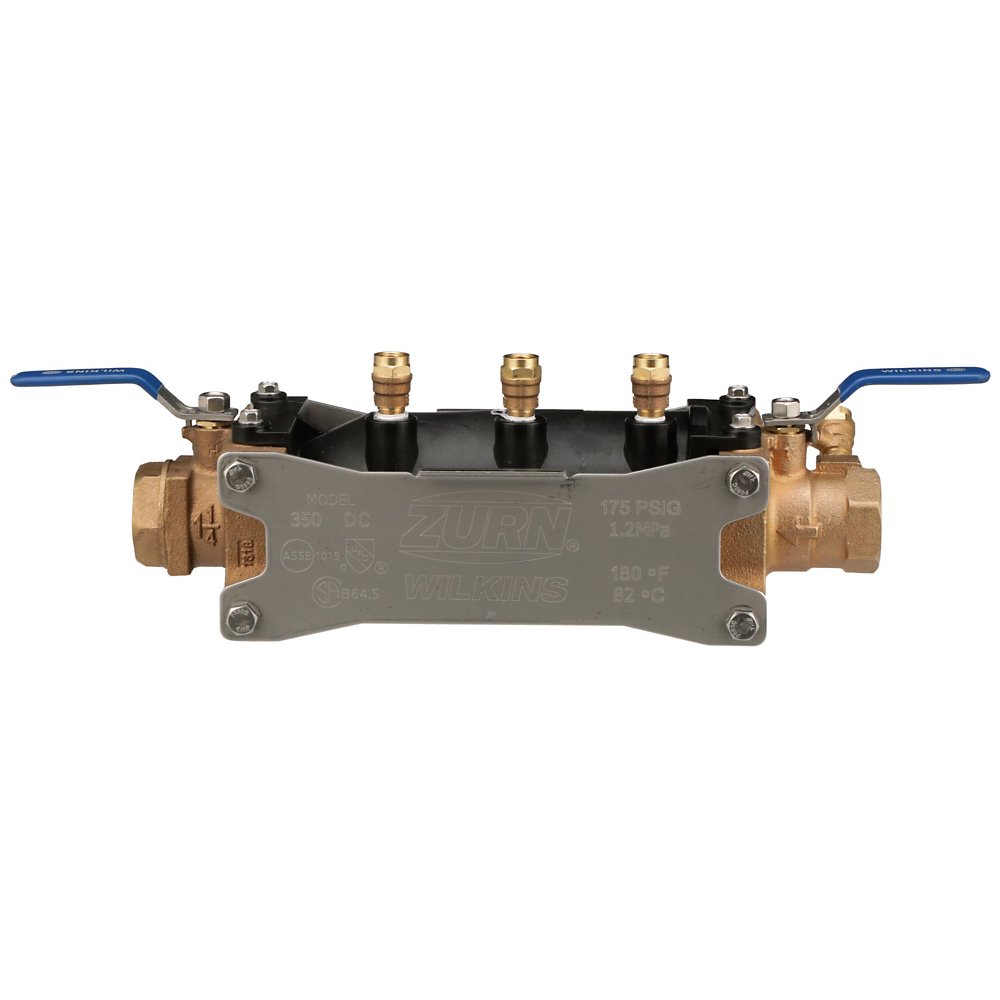

Zurn 114-350 1-1/4" Backflow Preventer - Double Check Valve Assembly with Replaceable Pressure Vessel, Non-Potable

The Zurn Wilkins 114-350 is a 1-1/4" double check valve assembly with Flanged connections, approved for low health hazard protection. It features a ductile iron body. Rated to 175 psi and up to 140°F.

The 350 Double Check Valve Assembly is used in low health hazard, non-potable water applications for protection against both backsiphonage and backpressure of polluted water. A favorite for irrigation contractors, the patented and innovative EZSwap® removable pressure vessel allows for simple, cost-effective maintenance and repairs, straightforward line flushing, quick winterization, and water savings. Its stainless steel shut-off valve handles, hardware, and struts are corrosion-resistant and the durable UV resistant reinforced nylon EZSwap Pressure Vessel resists corrosion and mineral build-up to better withstand harsh outdoor conditions.

Features

• 350 (3/4"-2")
• Flush Tool (FLUSH) provides easy line flushing, saving up to 15 minutes per installation
• EZSwap® removable pressure vessel reduces repair time and costs, and is serviceable off-line
• Design ensures water savings
• Stainless steel and durable, UV-resistant reinforced nylon construction offers corrosion-resistance and quick winterization
• Reduced labor and repair kit costs save 75% or more during backflow lifecycle
• ASSE® Listed 1015
• IAPMO® Listed
• CSA® Certified B64.5

Common Questions

What hazard level is this Double Check approved for?

It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the downstream substance could be a health hazard, codes require a reduced pressure zone (RPZ) assembly or a detector assembly instead. The assembly is listed to ASSE 1015.

Does this assembly have to be tested every year?

Yes. This is a field-testable assembly with 4 test cocks. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.

What shutoff valves are included?

It is supplied with non-rising stem (NRS) resilient-seated gate valves on the inlet and outlet.

Is this listed for fire protection service?

Yes -- it is UL Classified and C-UL Classified and FM Approved, the listings normally required for a backflow device on a fire sprinkler supply.

Specifications

• Type: Backflow Preventer - Double Check Valve Assembly with Replaceable Pressure Vessel, Non-Potable
• Size: 1-1/4"
• Connection: Flanged
• Body Material: Ductile Iron
• Max Pressure (psi): 175
• Application: Irrigation
• Backflow Protection: Both
• MPN: 114-350
• Temperature: up to 140°F
• Certifications: ASSE-1015, AWWA-C510, AWWA-C606, CSA-B64.5, C-UL, UL, FM, USC, NSF-61, NSF-372, IAPMO
• Assembly Type: Double Check
• Hazard Protection Level: Low Health Hazard
• ASSE Standard: ASSE 1015
• USC FCCCHR Approved: Yes
• Fire Protection Listing: UL Classified;C-UL Classified;FM Approved
• Field Testable: Yes
• Number of Test Cocks: 4
• Shutoff Valves: NRS Gate
