Specifications
Description

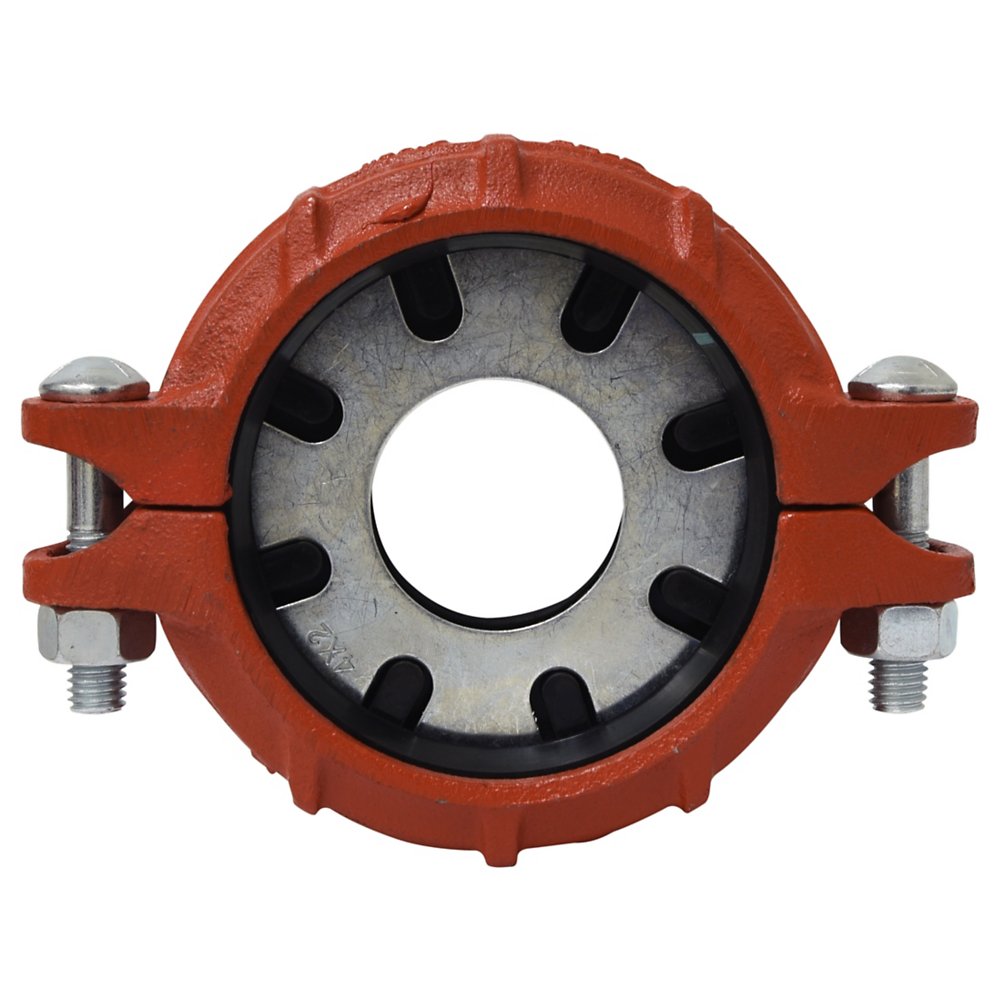

The Zurn Wilkins 112-FP23R is a 1-1/2" rigid grooved coupling for joining grooved pipe, fittings, valves and accessories in a fire protection system. It features a ductile iron body. Rated to 300 psi.
The Zurn FP23 Couplings are listed to join grooved pipes together. FP23 Couplings are available reducing, rigid (R) or flexible (F).
Features
- Resistant to mineral build-up and freeze damage
- Reducing Couplings provide a flexible style joint between pipes of different sizes.
- Reducing Couplings available in sizes 1-1/2" x 1-1/4" through 8" x 6"
- Rigid Couplings provide sturdy inflexible joints comparable to flanged, welded, or threaded connections.
- Rigid (R) Couplings available in sizes 1" - 10"
- Flexible Couplings allow joints to flex at the connection without leakage.
- Flexible (F) Couplings available in sizes 1-1/4" - 10"
Common Questions
- Is this an angle or a flexible coupling?
- Neither -- this is the base Rigid coupling (not the Rigid Angle Pad "RA" or Flexible "F" option), which makes a sturdy joint comparable to a flanged, welded or threaded connection with no allowance for pipe deflection.
Specifications
- Type: Rigid Groove Coupling
- Size: 1-1/2"
- Connection: Grooved
- Body Material: Ductile Iron
- Max Pressure (psi): 300
- MPN: 112-FP23R
- Certifications: UL, C-UL, FM
- Fitting Type: Coupling
- Coupling Style: Rigid
Dimensions
| Size Nominal | 1-1/2" | End Connection | Grooved |
Details
| Series | FP23 | Device Type | Rigid Groove Coupling |
| Body Material | Ductile Iron | Max Pressure PSI | 300.0 psi |
| Fitting type | Coupling | — | — |
Certifications & Standards
| UL | C-UL |
| FM | — |
