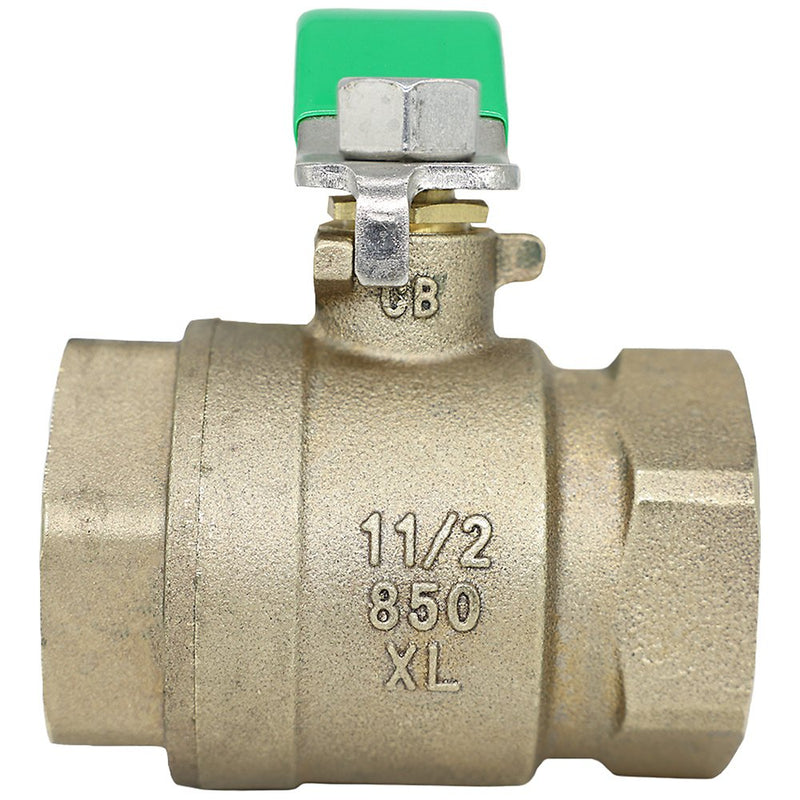

Zurn 112-850XL 1-1/2" Lead-Free Ball Valve - Bronze, Full Port, Lead-Free Bronze, FNPT

The Zurn 112-850XL is a 1-1/2" lead-free ball valve - bronze, full port with FNPT connections. It features a lead-free bronze body. Rated to 400 psi and 33°F to 350°F. This model is certified lead-free for potable-water installations.

The 850XL Full Port Bronze Ball Valve is used on Wilkins small diameter Backflow Assemblies for throttling and balancing installations of low pressure steam, air, water, and non-corrosive gas or oil. Ideal for use in residential, commercial, and industrial applications where lead-free valves are required, the pressure rating for the 850XL is 400 psi WOG with a temperature rating of 33°F to 350°F at 50 psi. Connection types include FNPT x FNPT, MNPT x FNPT (1/2"), Tapped (FNPT x FNPT), or with single union body (FNPT x FNPT), and features include a bronze body construction with a chrome plated brass ball, and quarter turn, full port ball valves.

Features

• Ideal for use in residential, commercial, and industrial applications where lead-free valves are required
• Quarter turn, full port ball valves provide ease in operation
• Safely throttles and balances low pressure steam, air, water, and non-corrosive gas/oil
• Chrome plated low-lead brass ball and bronze body construction resist corrosion
• Stainless steel handle and nut protect against corrosion
• Certified to NSF/ANSI 372 by IAPMO R&T

Specifications

• Type: Ball Valve - Bronze, Full Port
• Size: 1-1/2"
• Connection: FNPT
• Body Material: Lead-Free Bronze
• Max Pressure (psi): 400
• Port Style: Full
• MPN: 112-850XL
• Temperature: 33°F to 350°F
• Certifications: NSF-372
• Lead-Free: Yes
• Ball / Disc Material: Chrome-Plated Low Lead Brass
