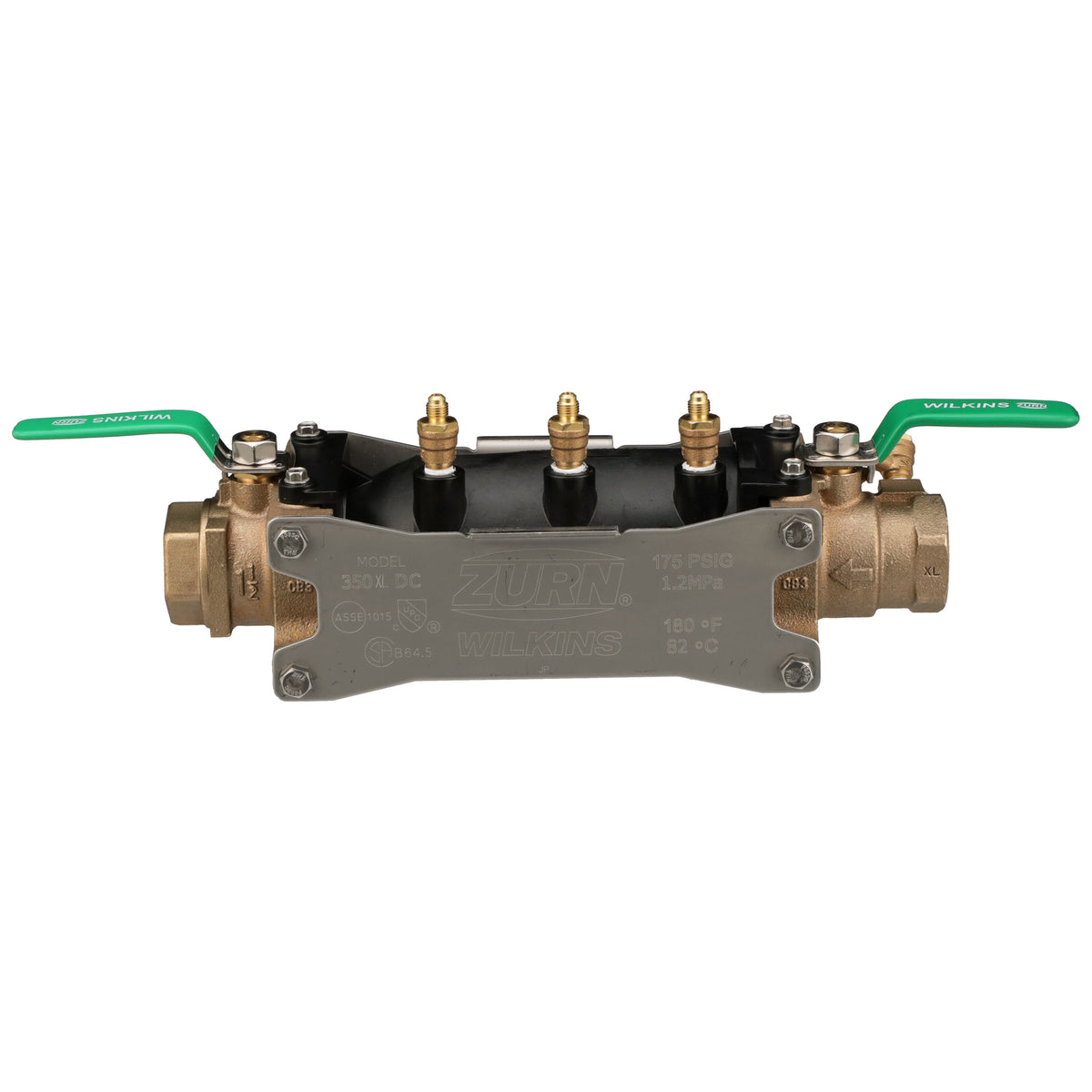

Zurn 112-350XLFT 1-1/2" Lead-Free Backflow Preventer - Double Check Valve Assembly with Replaceable Pressure Vessel

The Zurn Wilkins 112-350XLFT is a 1-1/2" lead-free double check valve assembly with Flanged connections, approved for low health hazard protection. It is rated to 175 psi and up to 180°F. This model is certified lead-free for potable-water installations.

The 350XL Double Check Valve Assembly is used in low health hazard, potable water applications for protection against both backsiphonage and backpressure of polluted water. A favorite for plumbing contractors, the patented and innovative EZSwap® removable pressure vessel allows for simple, cost-effective maintenance and repairs, straightforward line flushing, quick winterization, low-lead law compliant design, and added water savings. Its stainless steel shut-off valve handles, hardware, and struts are corrosion-resistant and the durable UV resistant reinforced nylon EZSwap Pressure Vessel resists corrosion and mineral build-up to better withstand harsh outdoor conditions.

Features

• 350XL (3/4"-2")
• Top-mounted test cocks allow for easy installation
• EZSwap® pressure vessel reduces repair time and costs
• Flush Tool (FLUSH) provides easy line flushing, saving up to 15 minutes per installation
• Construction offers corrosion-resistance and winterization
• Low-lead law compliant
• ASSE® Listed 1015
• IAPMO® Listed
• CSA® Certified B64.5

Common Questions

What hazard level is this Double Check approved for?

It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the downstream substance could be a health hazard, codes require a reduced pressure zone (RPZ) assembly or a detector assembly instead. The assembly is listed to ASSE 1015.

Is this model legal for potable water?

Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.

Does this assembly have to be tested every year?

Yes. This is a field-testable assembly with 4 test cocks. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.

What shutoff valves are included?

It is supplied with non-rising stem (NRS) resilient-seated gate valves on the inlet and outlet.

Is this listed for fire protection service?

Yes -- it is UL Classified and C-UL Classified, the listings normally required for a backflow device on a fire sprinkler supply.

How does this have to be installed?

It is approved for either horizontal or vertical installation, with the flow arrow on the body pointing in the direction of flow.

Specifications

• Type: Backflow Preventer - Double Check Valve Assembly with Replaceable Pressure Vessel
• Size: 1-1/2"
• Connection: Flanged
• Max Pressure (psi): 175
• Application: Domestic Water
• Backflow Protection: Both
• MPN: 112-350XLFT
• Temperature: up to 180°F
• Certifications: ASSE-1015, AWWA-C510, CSA-B64.5, C-UL, UL, USC, NSF-61, NSF-372, IAPMO
• Lead-Free: Yes
• Assembly Type: Double Check
• Hazard Protection Level: Low Health Hazard
• ASSE Standard: ASSE 1015
• USC FCCCHR Approved: Yes
• Fire Protection Listing: UL Classified;C-UL Classified
• Field Testable: Yes
• Number of Test Cocks: 4
• Shutoff Valves: NRS Gate
• Approved Orientation: Horizontal & Vertical
