Watts XF114 1-1/4" Float Valve, Glass-Reinforced Nylon

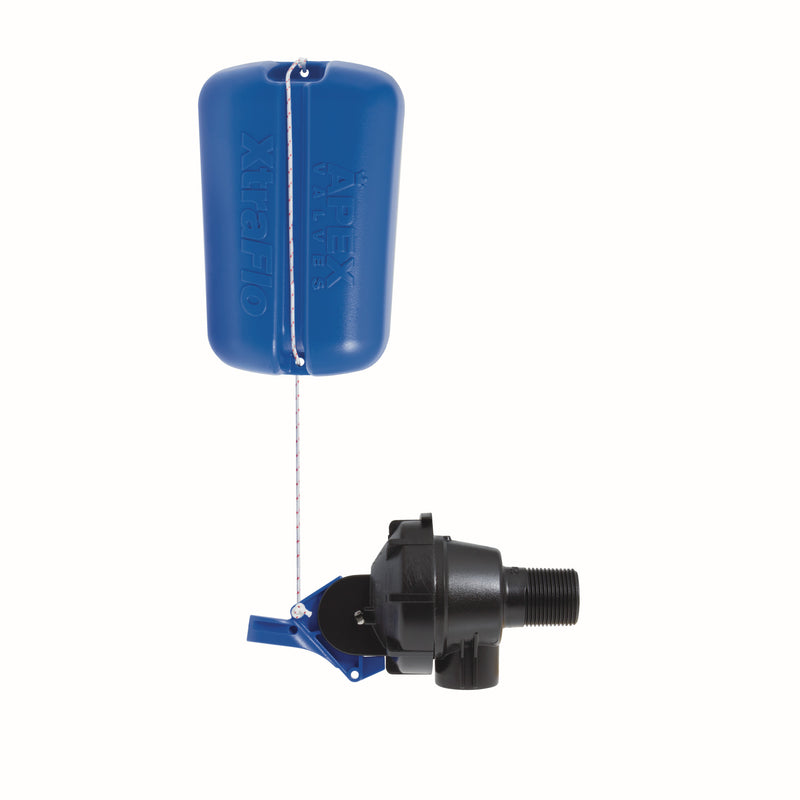

The Watts XF114 is a 1-1/4" XtraFlo armless diaphragm float valve for high-demand livestock troughs. The compact armless body mounts bottom, side or top entry to keep it clear of stock, and closes on a diaphragm so it will not hammer. It features a glass-reinforced nylon body and a buna-n seat. Rated to 60 psi.

This 1 1/4 inch float valve is designed to prevent backflow. It utilizes a unique way of operation where the pin moves out of the tip of the jet center, pushing any accumulated debris which reduces the valve from blocking. The valve operates at full flow when in the open position reducing wear and tear on the pump while also saving electricity. The valve uses a diaphragm that shuts off the supply of water slowly avoiding any chance of creating water hammer.

Features

• Designed to help control water levels and prevent backflow in high-demand, medium- to large-sized troughs
• The high-volume valve handles flow rates in excess of 80 gpm at 60 psi
• The armless design allows for side mount, bottom mount or top entry mount while reducing the chances of damage by livestock
• Built for durability and long life using UV-stable fiberglass-reinforced nylon and Acetyl (POM)
• Fully serviceable for long-term use

Common Questions

Does this include the float ball and rod?

Yes. This valve has an integral float and installs complete; there is no separate float ball or 3/8"-16 rod to buy, unlike the Watts bronze lever-arm float valves.

Can I use it on drinking water?

No. This valve is not certified lead-free and is for non-potable service only — cooling tower and refrigeration make-up, irrigation, livestock watering and tank fill. Do not install it on a potable water supply.

How does it mount?

Bottom mount, side mount or top entry. The armless design has no float rod sticking into the trough, so there is far less for livestock to damage.

What is the flow capacity?

80+ GPM @ 60 psi. Size the valve to how fast the tank or trough has to refill, not just to the pipe it lands on.

Specifications

• Type: Float
• Size: 1-1/4"
• Body Material: Glass-Reinforced Nylon
• Seat / Seal Material: Buna-N
• Max Pressure (psi): 60
• Application: Livestock
• Pack Quantity: 20
• Country of Origin: NZ
• Warranty: 1 Year Limited
• MPN: XF114
• Lead-Free: No
• Actuation: Armless Diaphragm
• Float & Rod Included: Yes
• Mounting: Bottom Mount;Side Mount;Top Entry
• Max Flow (GPM): 80.0
• Flow Capacity: 80+ GPM @ 60 psi
• Adjustable Arm: No
