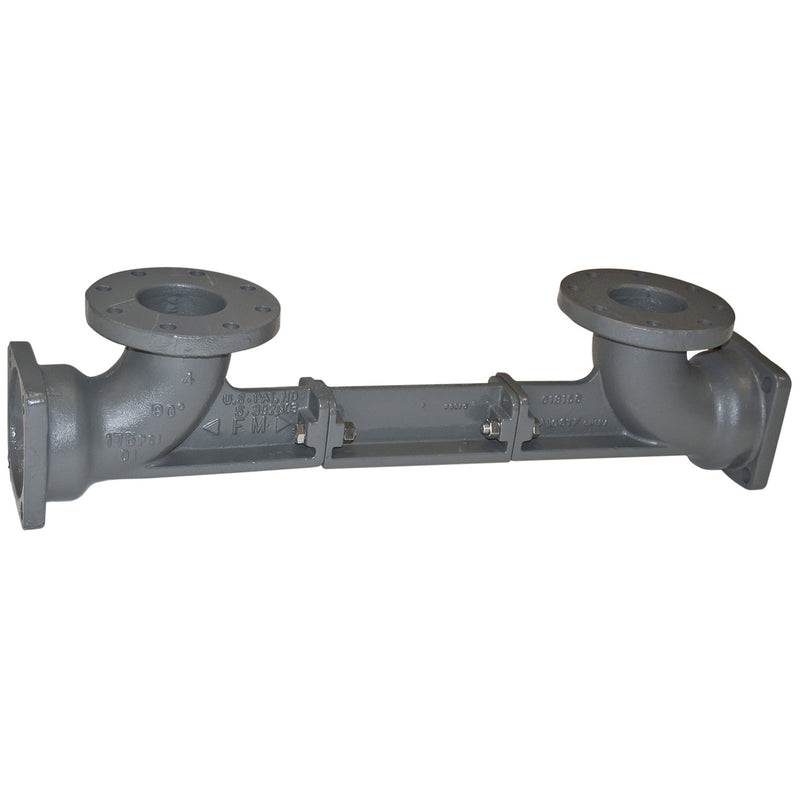

The Watts WVS-C-FXMJ-RP-BFG 4 is a valve setter for 4" Series 957N BFG and Series 957N RPDA BFG. It is rated to 175 psi.
This 4 inch ductile iron valve setter with flange by mechanical joint connections is designed to augment the installation of the N-shape 957N BFG and 957N RPDA BFG backflow preventer assemblies only. This valve setter is constructed of fusion epoxy coated ductile iron and has an integral ductile iron support between elbows transfers thrust downstream, thus eliminating thrust block requirements between elbows. Maximum working pressure is 175 psi (12.1 bar).
Features
- For use with 957N BFG and 957N RPDA BFG
- Corrosion resistant fusion epoxy coated
- Eliminates the need for thrust blocks or other restraints at the point of installation
- Flanges have ANSI B16.1 Class 125 (Standard) ANSI AWWA C153 A21.53-104
- Maximum working pressure is 175 psi (12.1 bar)
Common Questions
- Will this fit my valve?
- The WVS-C-FXMJ-RP-BFG 4 is designed for use with Series 957N BFG and Series 957N RPDA BFG in 4". Confirm the model and size of your assembly against its nameplate or spec sheet before ordering.
Specifications
- Size: 4"
- Inlet Size: 4"
- Outlet Size: 4"
- Connection: Flanged
- Pressure Class: Class 125
- Max Pressure (psi): 175
- Operation: Continuous
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: WVS-C-FXMJ-RP-BFG 4
- Lead-Free: No
- Accessory Type: Valve Setter
- For Use With: Series 957N BFG;Series 957N RPDA BFG
- Fits Valve Type: RPZ
- Fits Valve Size: 4"
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0107227 | 098268381405 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 4" | Inlet Size | 4" |
| Outlet Size | 4" | End Connection | Flanged |
| Pressure Class | Class 125 | — | — |
Details
| Series | WVS | Operation | Continuous |
| Max Pressure PSI | 175.0 psi | Min Temp °F | 33.0 °F |
| Accessory Type | Valve Setter | For Use With | Series 957N BFG, Series 957N RPDA BFG |
| Compatible Valve Type | RPZ | Compatible Size | 4" |
