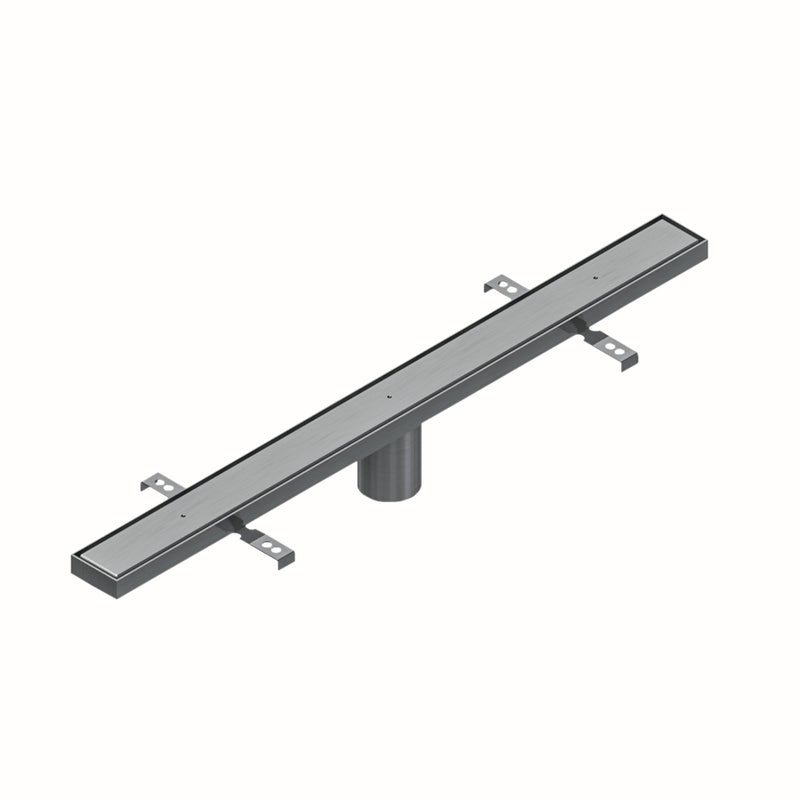

Watts WSC-312-LR-FC Trench Drain, Stainless, Push-On

The Watts WSC-312-LR-FC is a stainless trench drain with a 2" Push-On outlet. It features a stainless body.

This Watts ligature resistant waterline shower channel is manufactured from AISI Type 304 stainless steel for durability, long life and superior bacteria resistance. It is 4 inches wide by 12 inches long and features a flashing clamp and a 2 inch push on bottom outlet for fast and easy installation. It carries a light duty load rating and is both ADA compliant and heel proof.

Features

• Ligature resistant
• AISI Type 304 stainless steel
• 7" wide by 12" long
• 2 in push on bottom outlet

Common Questions

What pipe does it connect to?

It has a 2" Push-On outlet. The outlet leaves the bottom of the body.

Can it take traffic?

It carries a Light Duty load rating. The grate is heel-proof for walking surfaces.

What is it made of?

It has a stainless body.

Is it suitable for behavioral health facilities?

Yes. The top is ligature resistant.

Specifications

• Size: 2"
• Outlet Size: 2"
• Connection: Push-On
• Body Material: Stainless
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: WSC-312-LR-FC
• Load Rating: Light Duty
• Heel Proof: Yes
• Ligature Resistant: Yes
• Outlet Orientation: Bottom
