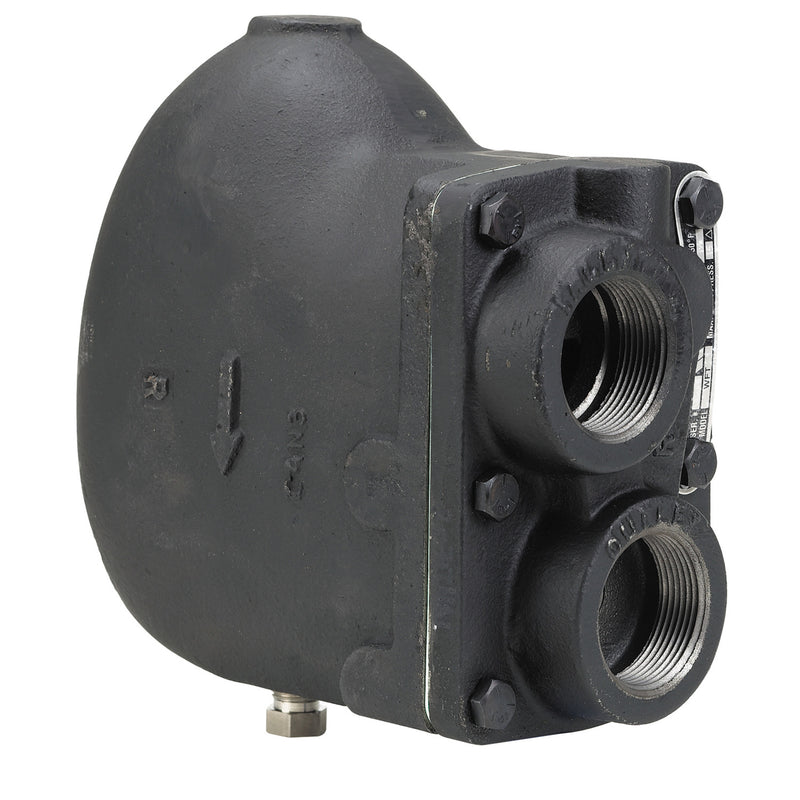

Watts WFT-75 3/4 Steam Trap, Cast Iron

The Watts WFT-75 3/4 is a 3/4" cast iron steam trap. It features a cast iron body. Rated to up to 353°F.

This float and thermostatic steam trap, 3/4" with .166 orifice, is used in steam main drips and process applications to provide continuous air venting and condensate removal. It features an iron body H-pattern design, stainless steel valve head, seat, float and thermostatic air vent. It is water hammer resistant and can be serviced without disturbing system piping and it is ideal for use in unit heaters, heat exchangers/reboilers, air heating coils, steam main drips, and process equipment. Operating pressure is 75 psi.

Features

• Universal 4-port design
• Balanced pressure thermostatic element
• Water hammer resistant
• Cast iron body and cover

Common Questions

What is it designed for?

It is intended for steam service.

Specifications

• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Cast Iron
• Application: Steam
• Pack Quantity: 4
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: WFT-75 3/4
• Temperature: up to 353°F
• Lead-Free: No
• Component Role: Steam Trap
• Spec.Orifice In: .166"
