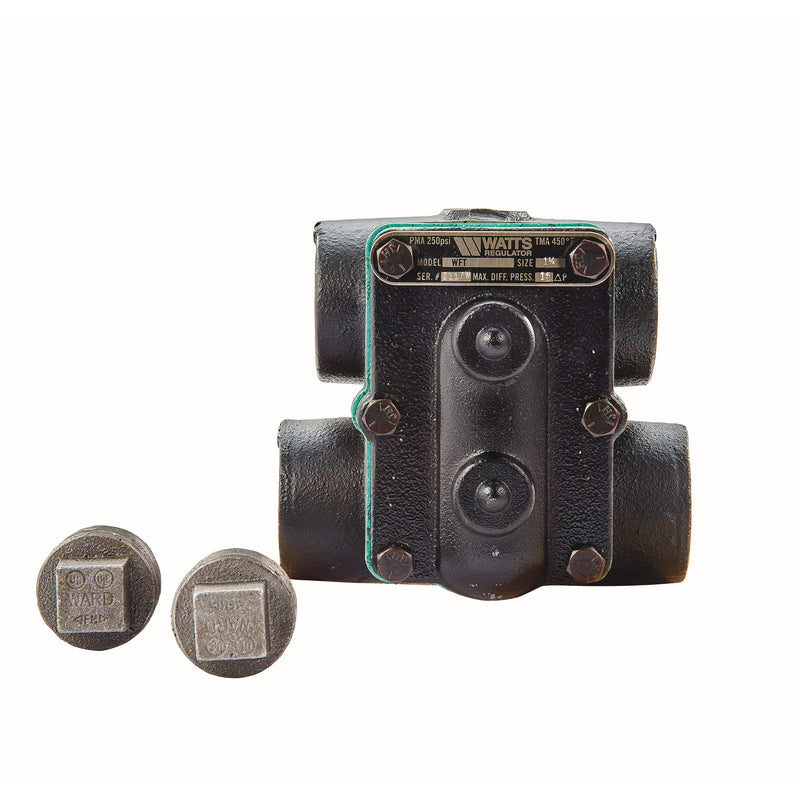

Watts WFT-30 1 1/2 Steam Trap, Cast Iron

The Watts WFT-30 1 1/2 is a 1-1/2" cast iron steam trap. It features a cast iron body. Rated to up to 353°F.

This 1 1/2 inch float and thermostatic steam trap with 0.390 orifice, is used in steam main drips and process applications to provide continuous air venting and condensate removal. It is ideal for use in unit heaters, heat exchangers/reboilers, air heating coils, steam main drips, and process equipment. It features an iron body H-pattern design, stainless steel valve head, seat, float and thermostatic air vent. It is water hammer resistant and can be serviced without disturbing system piping. Operating pressure is 30 psi.

Features

• Universal 4-port design
• Balanced pressure thermostatic element
• Water hammer resistant
• Cast iron body and cover

Common Questions

What is it designed for?

It is intended for steam service.

Specifications

• Size: 1-1/2"
• Inlet Size: 1-1/2"
• Outlet Size: 1-1/2"
• Body Material: Cast Iron
• Application: Steam
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: WFT-30 1 1/2
• Temperature: up to 353°F
• Lead-Free: No
• Component Role: Steam Trap
• Spec.Orifice In: .390"
