Watts WD-50 4" Interceptor, Steel, No-Hub

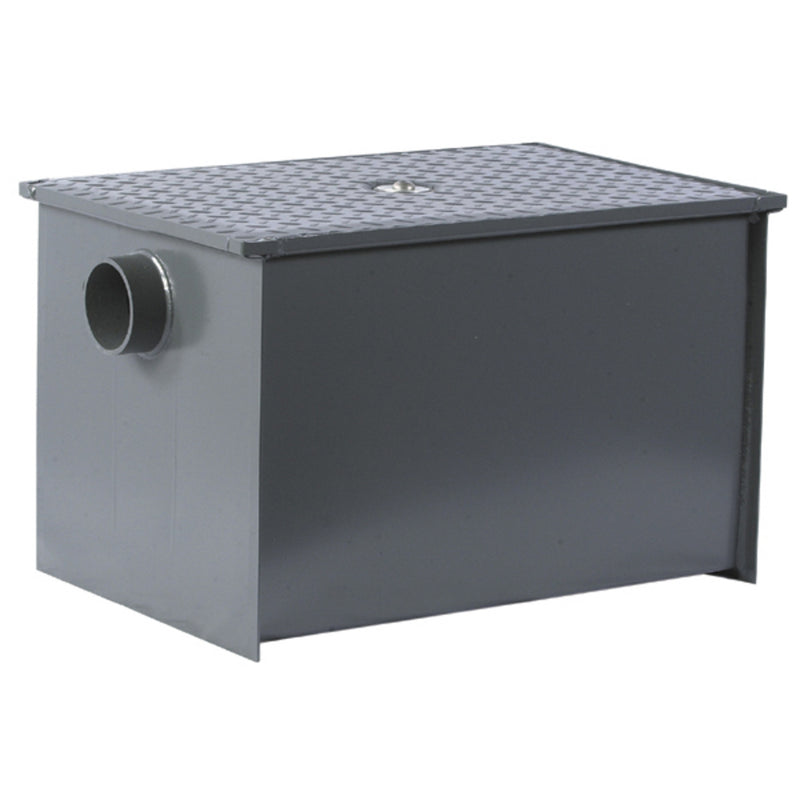

The Watts WD-50 is a epoxy-coated steel interceptor with a 4" No-Hub outlet. It features a steel body.

This PDI Certified epoxy-coated steel grease interceptor comes with a gasketed, epoxy-coated steel, skid-proof cover secured with hex head center bolts and can be recessed or floor-mounted. It features a removable baffle assembly, deep seal trap with cleanout, external cast iron flow control fitting, 4 inch no hub connections and can support a flow rate of up to 50 GPM. Available options include a sediment bucket, extension, flange and clamp device, heavy duty cover, non-standard connections and all stainless steel construction.

Features

• Recessed or floor mounted
• PDI certified
• Skid-proof cover
• Epoxy-coated steel

Common Questions

What pipe does it connect to?

It has a 4" No-Hub outlet.

Can it take traffic?

It carries a Heavy Duty load rating.

What is it made of?

It has a steel body with a epoxy coating.

What flow is it rated for?

It is rated for 50 GPM. It is PDI certified, which most plan checks require.

Specifications

• Size: 4"
• Inlet Size: 4"
• Outlet Size: 4"
• Connection: No-Hub
• Body Material: Steel
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: WD-50
• Certifications: PDI-G101
• Top Material: Stainless
• Spec.Coating: Epoxy
• Load Rating: Heavy Duty
• Flow Capacity (GPM): 50
• PDI Certified: Yes
