Specifications
Description

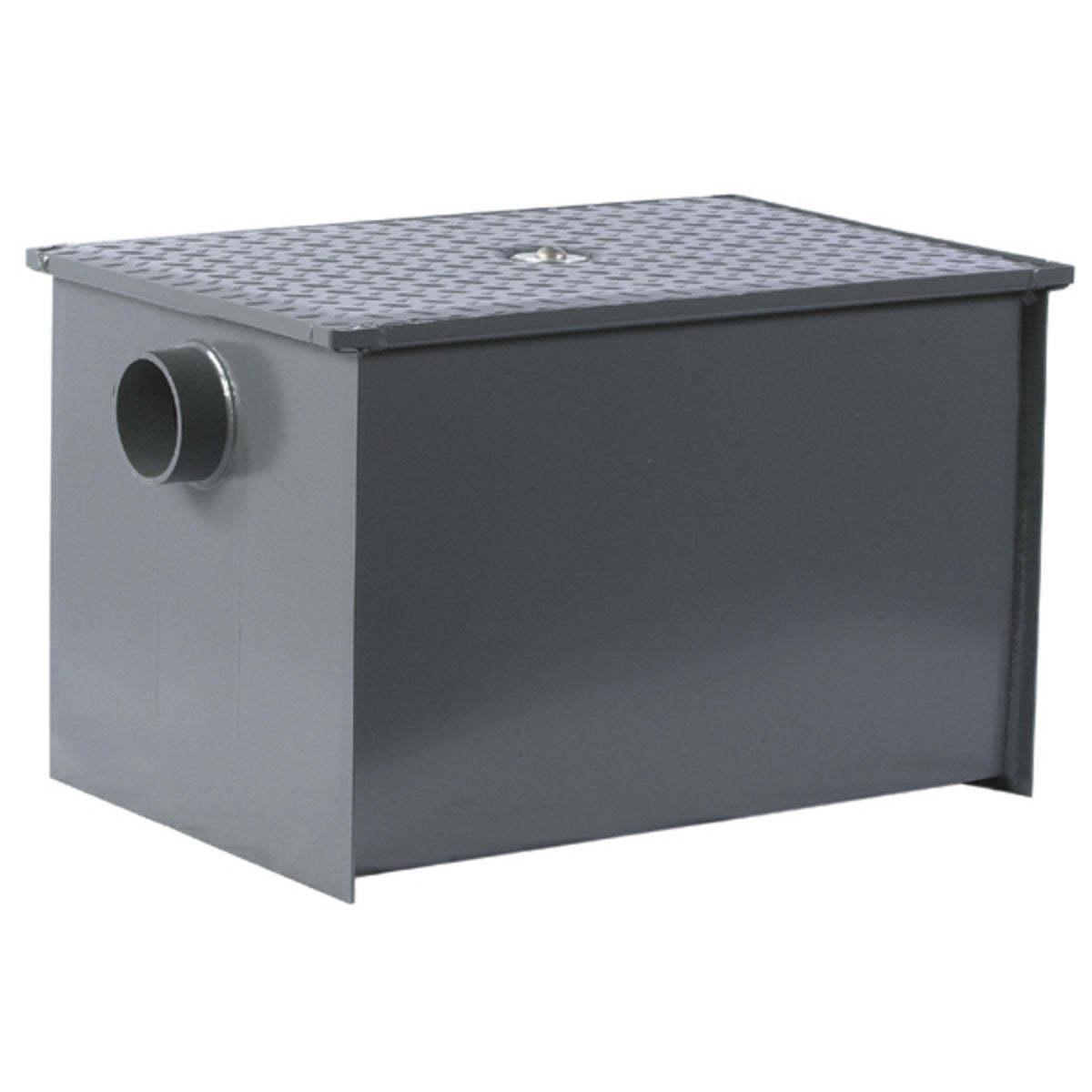

The Watts WD-35-THD is a epoxy-coated steel interceptor with a 3" Flanged outlet. It features a steel body.
This PDI Certified epoxy-coated steel grease interceptor comes with a gasketed, epoxy-coated steel, skid-proof cover secured with hex head center bolts and can be recessed or floor-mounted. It features a removable baffle assembly, deep seal trap with cleanout, external cast iron flow control fitting, 3 inch FIP connections and can support a flow rate of up to 35 GPM. Available options include a sediment bucket, extension, flange and clamp device, heavy duty cover, non-standard connections and all stainless steel construction.
Features
- Recessed or floor mounted
- PDI certified
- Skid-proof cover
- Epoxy-coated steel
Common Questions
- What pipe does it connect to?
- It has a 3" Flanged outlet.
- Can it take traffic?
- It carries a Heavy Duty load rating.
- What is it made of?
- It has a steel body with a epoxy coating.
- What flow is it rated for?
- It is rated for 35 GPM. It is PDI certified, which most plan checks require.
Specifications
- Size: 3"
- Inlet Size: 3"
- Outlet Size: 3"
- Connection: Flanged
- Body Material: Steel
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: WD-35-THD
- Certifications: PDI-G101
- Top Material: Stainless
- Spec.Coating: Epoxy
- Load Rating: Heavy Duty
- Flow Capacity (GPM): 35
- PDI Certified: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty |
|---|---|---|---|
| 8150986 | 098268987393 | China | 1 Year Limited |
Dimensions
| Size Nominal | 3" | Inlet Size | 3" |
| Outlet Size | 3" | End Connection | Flanged |
Details
| Series | WD SERIES | Body Material | Steel |
| Application | Drainage | Coating | Epoxy |
| Flow rate gpm | 35 GPM | Load rating | Heavy Duty |
| Pdi certified | Yes | Top material | Stainless |
Certifications & Standards
| PDI-G101 | — |
