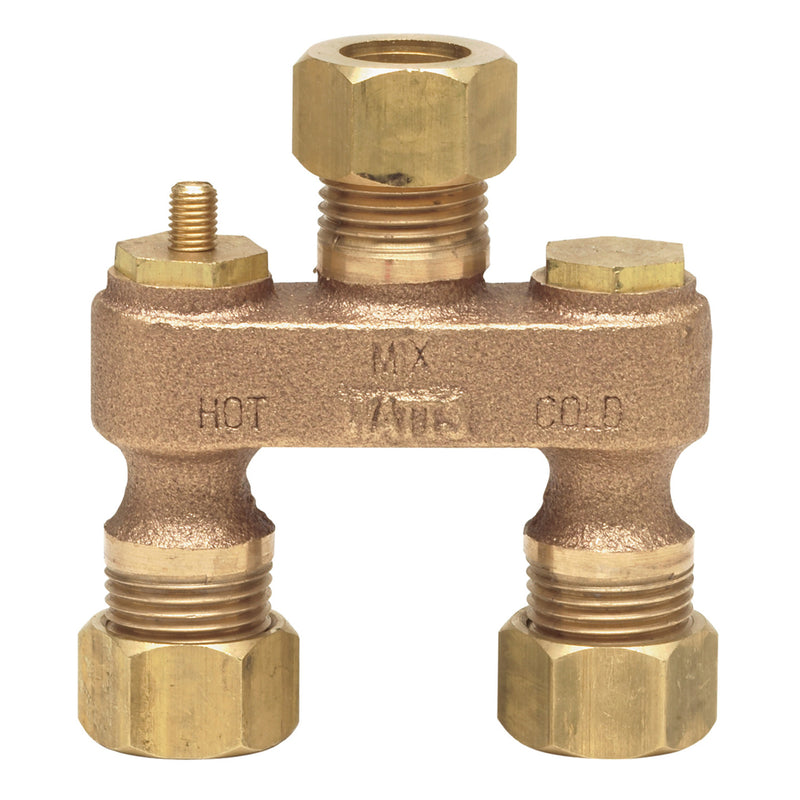

Watts WAS 1/2 Thermostatic Mixing Valve, Brass, Sweat

The Watts WAS 1/2 is a 1/2" anti-sweat valve with Sweat connections. It features a brass body.

This 1/2 inch anti-sweat valve is used in residential applications for mixing hot water with the cold water supply to temper the water inside the toilet tank to prevent condensation build-up on the outside of the tank. It features a brass body with IPS male connections and includes compression nuts and sleeves for alternative means of connection. The maximum temperature is 180 degree F (82C).

Features

• Cast brass
• Eliminates condensation on tank
• Connect by included compression nut or remove nut and use male thread
• Maximum temperature 180 degree F

Common Questions

Can I use this at a lavatory — is it ASSE 1070 listed?

No. This is an anti-sweat valve — it tempers the water feeding a toilet tank to stop condensation on the outside of the tank. It carries no ASSE listing, delivers no water to a user, and is not a mixing valve for a lavatory, tub or shower.

What temperature range does it deliver?

The adjustment range for this item is not stated in the Watts data we hold. Check the submittal sheet before specifying it to a required temperature.

Does it have integral checks?

No. This valve does not include integral check valves or filter washers.

Can I lock the temperature setting?

No. Temperature is set with a dial adjustment cap and there is no locking or tamper-resistant feature. If the setting must be secured against tampering, specify a series with a locking adjustment such as the LF1170 or LFMMV.

Specifications

• Type: Mixing/Tempering
• Size: 1/2"
• Connection: Sweat
• Body Material: Brass
• Pack Quantity: 100
• Country of Origin: Taiwan
• Warranty: 1 Year Limited
• MPN: WAS 1/2
• Lead-Free: No
• ASSE Listing: None
• Integral Checks & Filter Washers: No
• Locking Temperature Adjustment: No
• Shutoff on Cold-Supply Failure: No
• Temperature Gauge Included: No
• Union Connections: No
• Applications: Toilet Tank
