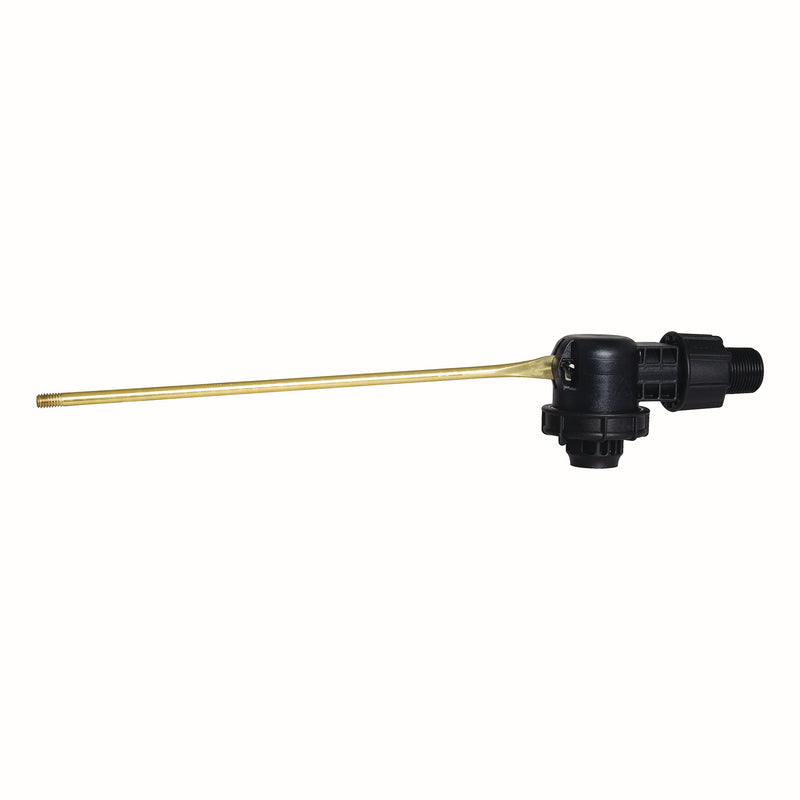

Watts UF134 Float Valve, Glass-Reinforced Nylon

The Watts UF134 is a piston-operated trough float valve for livestock watering and agricultural water supply, serviceable in place. It features a glass-reinforced nylon body and a buna-n seat. Rated to 60 psi.

This 1 and 3/4 inch float valve is piston operated, and has a very high flow rate. The valve can be fully serviced by hand and without the requirement for tools.

Features

• Designed to help control water levels and prevent backflow in medium- or large-sized troughs requiring full flow demand
• Can be installed underwater to avoid risk of damage from livestock, or above water to ward off backflow
• Offers high volume and full flow rates of up to 97 gpm, with an operating average of 75 gpm@60 psi
• Construction of UV-stable fiberglass-reinforced nylon, Acetyl (POM) and brass ensures durability and resistance to both corrosion and dezincification
• Ideal for use in livestock watering, agricultural water supply and other ranch, farm and hobby farm applications

Common Questions

Can I use it on drinking water?

No. This valve is not certified lead-free and is for non-potable service only — cooling tower and refrigeration make-up, irrigation, livestock watering and tank fill. Do not install it on a potable water supply.

What is the flow capacity?

Up to 97 GPM; 75 GPM @ 60 psi average. Size the valve to how fast the tank or trough has to refill, not just to the pipe it lands on.

Specifications

• Type: Float
• Body Material: Glass-Reinforced Nylon
• Seat / Seal Material: Buna-N
• Max Pressure (psi): 60
• Application: Livestock
• Pack Quantity: 60
• Country of Origin: NZ
• Warranty: 1 Year Limited
• MPN: UF134
• Lead-Free: No
• Actuation: Piston
• Mounting: Submerged
• Max Flow (GPM): 97.0
• Flow Capacity: Up to 97 GPM; 75 GPM @ 60 psi average
