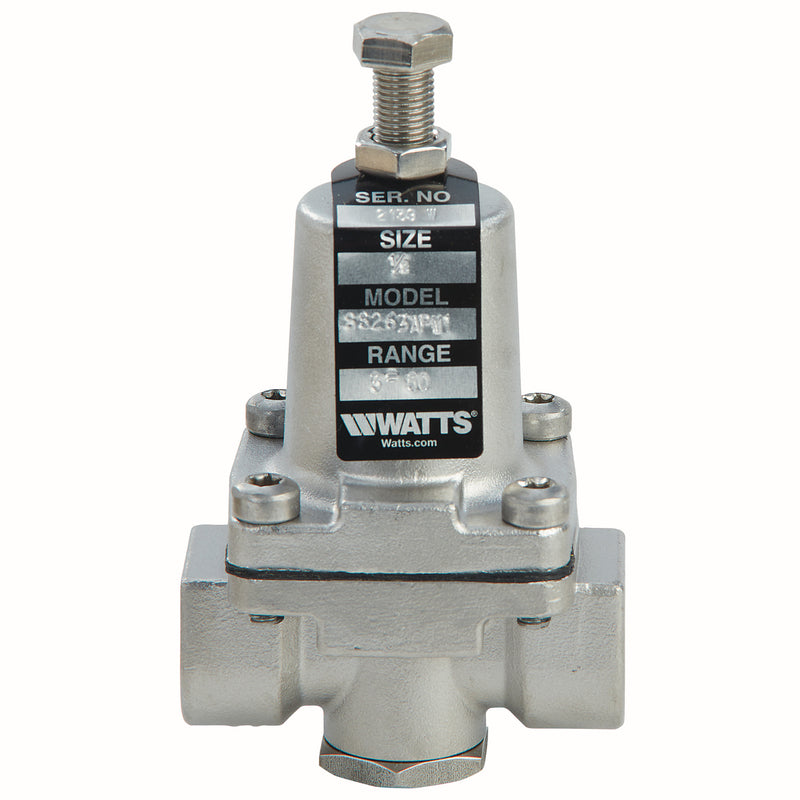

Watts SS263RS-20-175 Pressure Reducing Valve, Stainless, NPT

The Watts SS263RS-20-175 is a pressure reducing valve with NPT connections. It reduces inlet pressure of up to 400 psi to an adjustable 20-175 psi downstream. It features a stainless body and a fkm (viton) seat. Rated to 400 psi and 0°F to 140°F.

Series 263A stainless steel small pressure regulator is used in small general purpose applications to regulate pressure in piping systems using water and No. 2 fuel oil. It consists of NPT threaded female inlet and outlet connections, 1/4 inch 3-way low-pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, reinforced Buna-N diaphragm, and tee handle adjustment. Options include Viton trim and slotted adjusting screw. Strainers are recommended. Series SS263AP has an oversized orifice and is ideal for use on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. Maximum working pressure is 300psi (21 bar).

Features

• Stainless steel body construction
• NPT threaded female inlet and outlet connections
• Meets requirements for use in beverage dispensing and paint spraying equipment, drinking fountains
• Maximum working pressure 300 psi

Common Questions

What pressure is it set to out of the box?

The adjustable reduced-pressure range of SS263RS-20-175 is 20 to 175 psi. Verify the outlet setting with a gauge after installation and adjust to your target pressure.

Does it include a strainer?

No - SS263RS-20-175 does not have an integral strainer. On dirty or older supply lines, install a separate inline strainer upstream to keep debris off the seat.

Does it come with a gauge?

SS263RS-20-175 has a gauge tapping (port) but no gauge is included - the port ships plugged. Thread in your own gauge to read the reduced downstream pressure.

Specifications

• Type: Pressure Regulator
• Connection: NPT
• Body Material: Stainless
• Seat / Seal Material: FKM (Viton)
• Max Pressure (psi): 400
• Shutoff: None
• Pack Quantity: 12
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: SS263RS-20-175
• Temperature: 0°F to 140°F
• Lead-Free: No
• Adjustable Range - Min (psi): 20
• Adjustable Range - Max (psi): 175
• Thermal Expansion Bypass: No
• Integral Strainer: No
• Gauge: Gauge Tap
• Union Configuration: None
• Capacity Class: Small Process
• Regulated Media: Water & Fuel Oil
