Specifications
Description

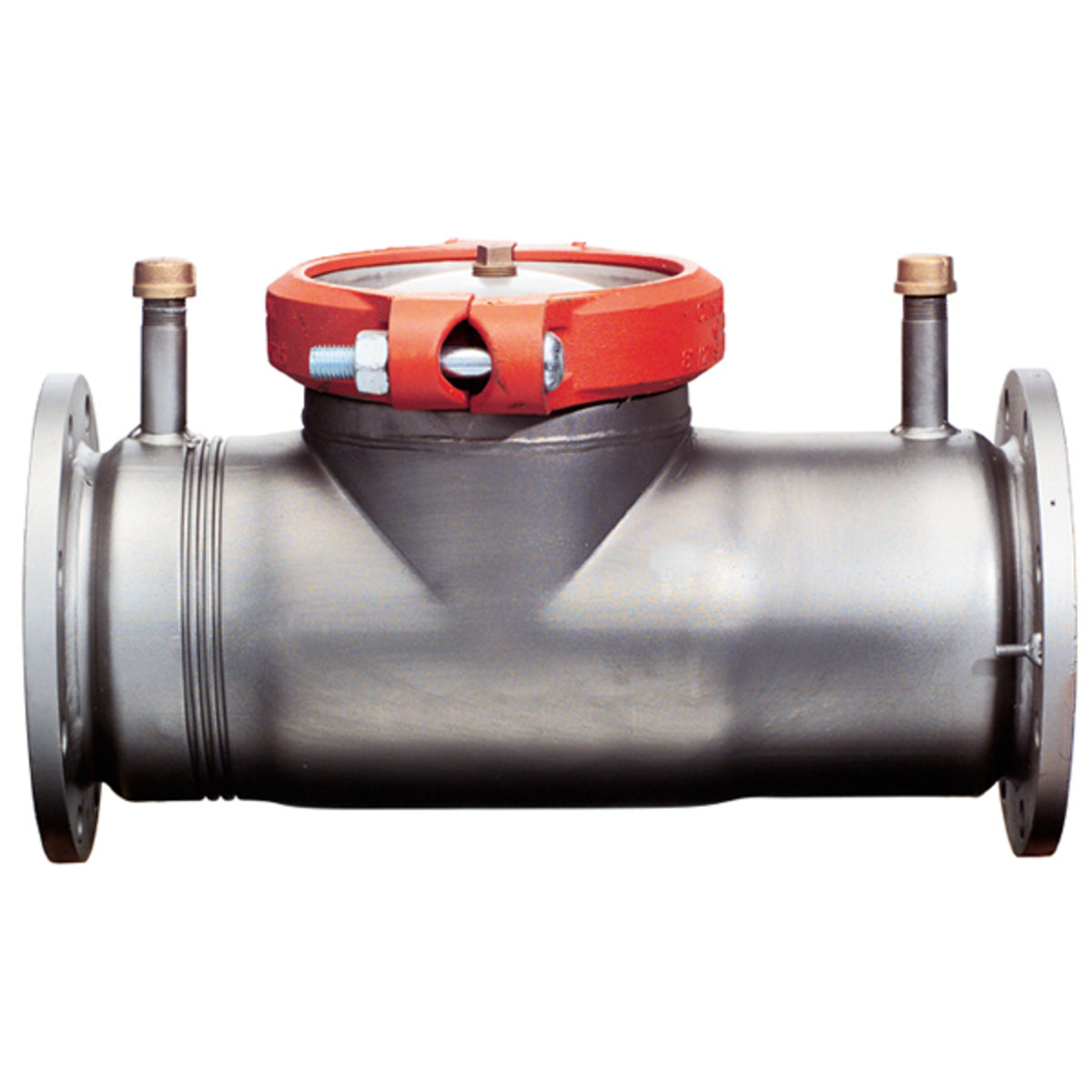

The Watts SS07F-CFM 10 is a 10" single detector check valve with Flanged connections. The metered bypass registers leakage or unauthorized water use on a fire sprinkler system. It features a stainless body. Rated to 175 psi and 33°F to 110°F.
This 10" stainless steel, single detector check valve for fire sprinkler systems is used in fire protection applications to detect leakage or unauthorized use of water in fire sprinkler systems. It consists of a stainless steel body construction with flanged connection, and stainless steel linkage parts. It is lightweight, non-corrosive, and can be installed in a horizontal or vertical position and has a cubic feet meter. Maximum pressure is 175 psi (12.1 bar).
Features
- Stainless steel for corrosion resistance
- Flanged end connections
- Includes bypass
- Horizontal or vertical installation
- Includes: Bypass
Common Questions
- Can I install it vertically?
- Yes. The SS07F-CFM 10 is rated for horizontal or vertical lines. In a vertical run the flow must be upward through the valve, following the body arrow.
- Will it slam or cause water hammer?
- Possibly. This is a clapper-style check, not a spring-loaded silent check, so it closes on the reverse flow and can slam on lines with abrupt stops.
- Does it come with a strainer?
- No. This is an inline check valve only. If the line carries debris, install a strainer upstream — grit on the seat is the usual cause of a check valve weeping by.
- Is it potable rated?
- No. This model is not certified lead-free, so it is not for potable-water piping — it is specified for fire protection service. Watts LF-prefixed check valves cover potable applications.
Specifications
- Type: Check
- Size: 10"
- Connection: Flanged
- Body Material: Stainless
- Max Pressure (psi): 175
- Application: Fire Protection
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: SS07F-CFM 10
- Temperature: 33°F to 110°F
- Certifications: UL
- Lead-Free: No
- Check Mechanism: Detector Check
- Installation Orientation: Horizontal or Vertical
- Silent / Non-Slam: No
- Disc / Flapper Material: Stainless Steel
- Integral Strainer Included: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0065141 | 098268920796 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 10" | End Connection | Flanged |
Details
| Series | SS07F | Device Type | Check |
| Body Material | Stainless | Application | Fire Protection |
| Max Pressure PSI | 175.0 psi | Max Temp °F | 110.0 °F |
| Options | Bypass | Min Temp °F | 33.0 °F |
| Check Mechanism | Detector Check | Orientation | Horizontal or Vertical |
| Disc Material | Stainless Steel | — | — |
Certifications & Standards
| UL | — |
Compare with similar products
| Check Mechanism | Detector Check
| Detector Check
| Detector Check
| Detector Check
| Detector Check
|
| Orientation | Horizontal or Vertical
| Horizontal or Vertical
| Horizontal or Vertical
| Horizontal or Vertical
| Horizontal or Vertical
|
| Disc Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Series | SS07F
| SS07F
| SS07F
| SS07F
| SS07F
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | |||||
| Device Type | Check
| Check
| Check
| Check
| Check
|
| Size Nominal | 10"
| 10"
| 8"
| 6"
| 4"
|
| End Connection | Flanged
| Flanged
| Flanged
| Flanged
| Flanged
|
| Body Material | Stainless
| Stainless
| Stainless
| Stainless
| Stainless
|
| Application | Fire Protection
| Fire Protection
| Fire Protection
| Fire Protection
| Fire Protection
|
| Max Pressure PSI | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi |
| Max Temp °F | 110.0 °F | 110.0 °F | 110.0 °F | 110.0 °F | 110.0 °F |
| Certifications | UL
| UL
| UL
| UL
| UL
|
| Options | Bypass
| Bypass
| Bypass
| Bypass
| Bypass
|
| Min Temp °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F |
