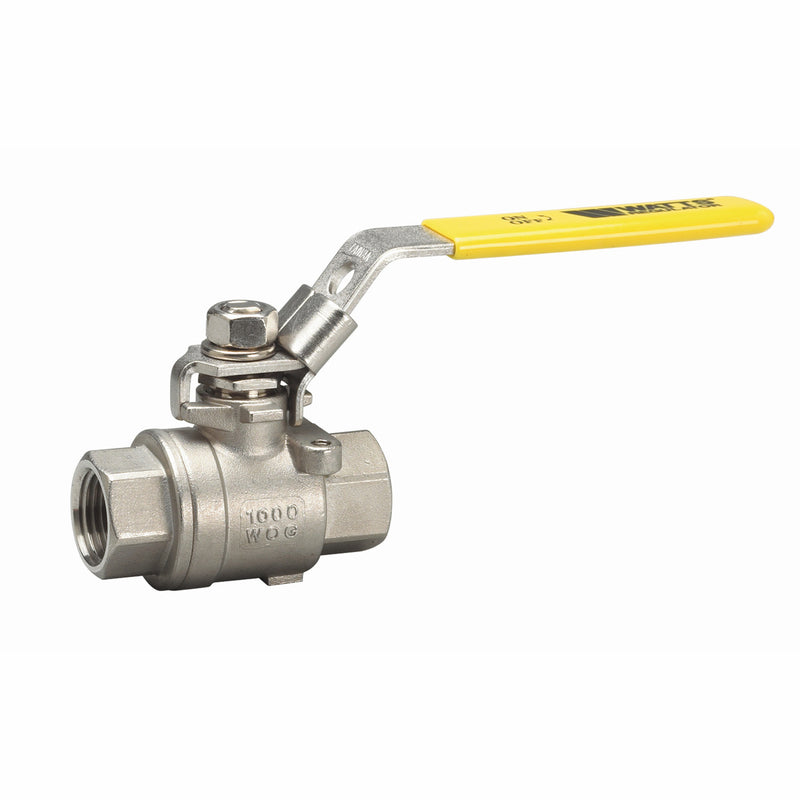

The Watts SFBV-1 2 is a 2" 2-piece full port ball valve with female FNPT connections. It features a stainless body and a ptfe seat. Rated to 1000 psi and 0°F to 400°F.
This 2 inch two-piece full port ball valve with female threaded end connections is used in commercial and industrial applications with high operating temperature and pressure limits. The valve features stainless steel body construction, adjustable packing gland, reinforced PTFE seats and seals, a bottom loaded blowout proof stem a vinyl insulator on a heavy duty 304 Latch-Lok stainless steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C). The pressure rating is 1000 psi (68.9 bar) WOG non-shock and 125 psi (8.6 bar) WSP.
Features
- Two-piece stainless steel body construction
- Full port for minimal pressure drop
- Drilled and tapped mounting pads
- Vinyl insulated standard Latch-Lok handle to lock open or closed
- Reinforced PTFE seats and seals
- Adjustable packing gland
- Bottom loaded blowout proof stem
- Conforms to MSS-SP-110 and API-598
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 2" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Can I actuate this valve?
- Yes. The body has integral actuator mounting pads, so an electric or pneumatic actuator bolts straight on without a bracket kit. For a ready-to-wire assembly, look at the LFEMVII electric ball valves.
- What's the steam rating?
- 125 psi WSP (saturated steam). Do not size steam service off the 1000 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
-
Type: Ball
-
Size: 2"
-
Inlet Size: 2"
-
Outlet Size: 2"
-
Connection: FNPT
-
Connection Gender: Female
-
Body Material: Stainless
-
Seat / Seal Material: PTFE
-
Max Pressure (psi): 1000
-
Application: Domestic Water
-
Port Style: Full
-
Pack Quantity: 8
-
Country of Origin: Taiwan
-
Warranty: 1 Year Limited
-
MPN: SFBV-1 2
-
Temperature: 0°F to 400°F
-
Certifications: MSS-SP-110, API-598
-
Lead-Free: No
-
Valve Construction: 2-Piece
-
Blowout-Proof Stem: Yes
-
Handle Type: Locking Lever
-
Actuation: Manual
-
Actuator Mounting: Mounting Pad
-
Max Steam Pressure (WSP): 125
-
Fuel Gas Rated: No
-
Integral Drain / Waste Port: No
